(MQQCU001) Quartz Trapezoidal Cell, 2.5 mL nominal capacity, Sloped Body
$348.00
MQQCU001 is a JGS1 quartz trapezoidal cuvette for UV/Vis spectroscopy with a 2.5 mL nominal capacity, two-way light configuration and open-top sample access. Its tapered body uses a 24 × 9 mm base and a 45 mm vertical height, so physical fit should be checked against your holder. Sold as 1 piece.
Description
MQQCU001 is a JGS1 quartz trapezoidal cuvette for UV/Vis spectroscopy with a 2.5 mL nominal capacity and an open-top sample chamber. Its tapered body and Two-Way Light layout make it a practical choice when your setup is designed around this specific cell shape rather than a straight-sided rectangular body. The listed price is for one cell.
- Sample Volume (Nominal)
- 2.5 mL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Trapezoidal Cell |
| Measurement Mode | UV/Vis Spectroscopy |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 2.5 mL |
| External Dimensions | 24 × 9 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 24 × 9 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Fabrication Method | Standard 80 |
| Opening Configuration | Open Top |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Trapezoidal Cuvette |
Choose this option
Choose MQQCU001 when you need a trapezoidal quartz cell with direct top filling and a transmission measurement path through two opposite optical faces. The chamber size helps you judge general sample loading, but the main selection point is the non-standard body shape and how it fits your holder, compartment space and beam path.
What makes this option different
- Trapezoidal body: the sloped profile is the key physical difference from a straight-sided cell, so holder clearance should be checked from the drawing rather than assumed.
- Open top: you load, empty and rinse the sample directly from above.
- Two-Way Light configuration: this cell is arranged for transmission through two opposite optical faces.
- 2.5 mL nominal capacity: useful as the stated chamber size, but not a minimum working volume.
- Standard 80 fabrication: adhesive-bonded quartz construction, typically selected for room-temperature aqueous samples and buffers rather than organic-solvent routines.
Structure and dimensions

Using this cell
Fill the cell from the top and make sure the liquid level covers the illuminated region during measurement. Keep the same seating direction for blank and sample runs so the transmission path stays consistent.
After filling, check for bubbles in the beam path and wipe droplets or fingerprints from the outside optical faces before placing the cell in the instrument. The 2.5 mL figure is a nominal capacity, not a stated minimum working fill.
First-use check
- Inspect the optical faces and sample chamber for residue or handling marks before first use.
- Test the cell in the holder to confirm stable seating and correct beam alignment.
- Run a blank in the same orientation you plan to use for the sample.
Fit and optical alignment
View the English selection reference. Also available in the product gallery.

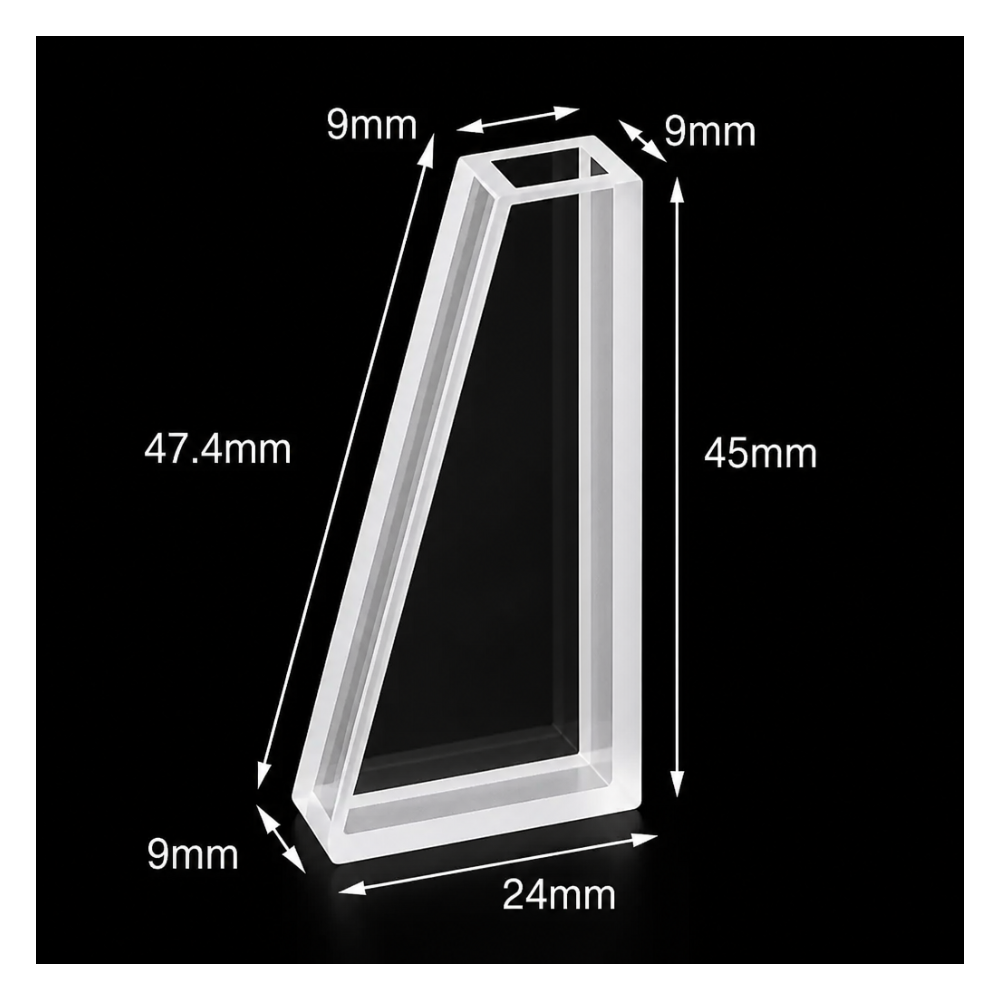

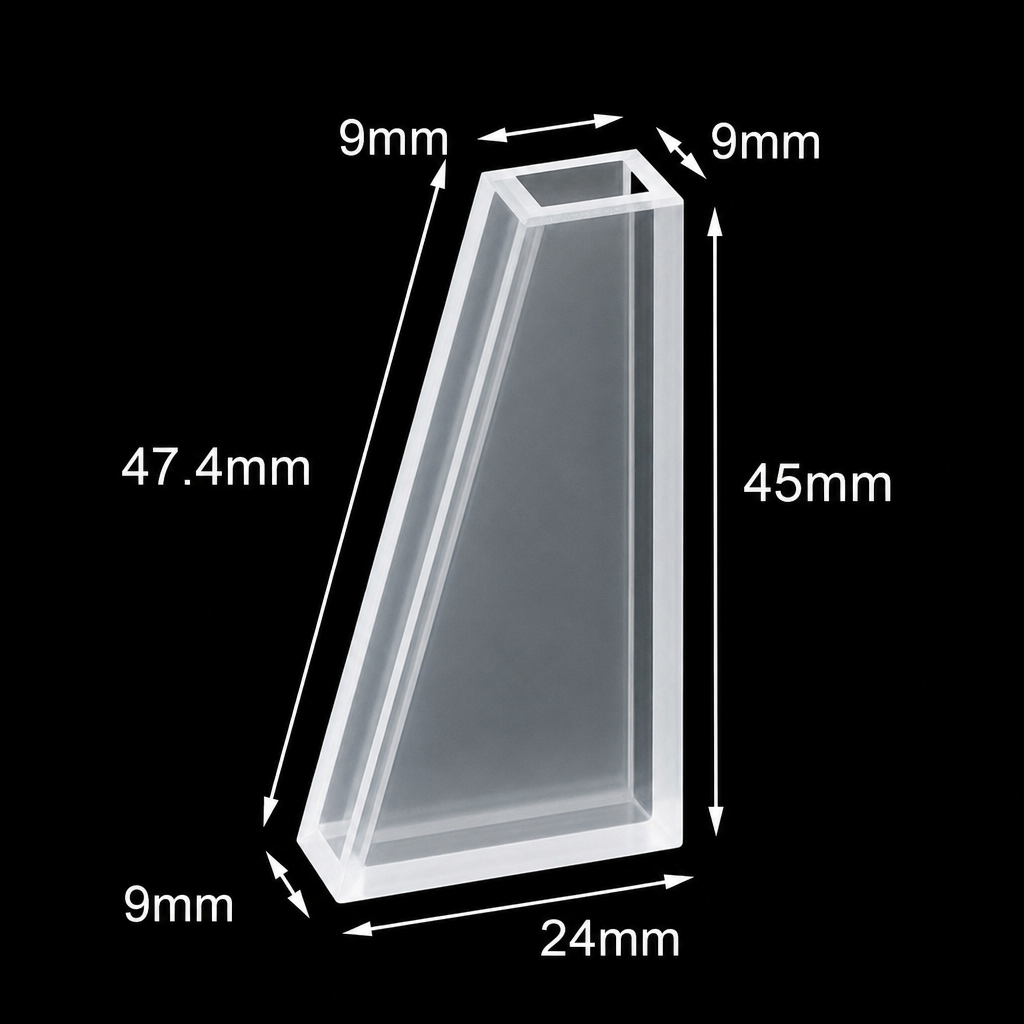

The body drawing shows a 24 × 9 mm base and a 45 mm vertical height. These dimensions are useful for checking holder clearance and insertion space, especially because the body is tapered rather than rectangular.
View the English dimensional reference. The reference is also available in the product gallery; series photographs may show other options.
The optical path length and Z Height are not stated for this option, so instrument fit should be checked against the holder and beam position requirements of your setup before ordering.

Solvents and cleaning
This cell uses Standard 80 fabrication with adhesive-bonded quartz construction. It is commonly selected for room-temperature aqueous samples and buffer-based work.
Avoid organic samples and organic cleaning solvents with this construction. If your method involves aggressive chemicals, elevated temperature or long contact time, check suitability before ordering. Do not use hydrofluoric acid on quartz, avoid hot strong alkalis, and use non-abrasive cleaning materials on the optical faces.
Included with this option
1 Quartz Trapezoidal Cuvette. The listed price is for one cell.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different path length, a defined beam height, or a body size matched to a specific holder, send your drawing or holder details for review. We also coordinate custom JGS1 quartz versions for requirements involving dimensions, optical layout, capacity and fabrication, with feasibility, quantity, price and production time confirmed for the project.
Send a product-selection enquiry with SKU MQQCU001, your holder or instrument details, sample conditions and required quantity.
Additional information
| Weight | 50 g |
|---|
