(MQQFC061) Quartz Rectangular Sample Cell, 0.6 mm Path, Open at Both Ends
$588.00
MQQFC061 is a JGS1 quartz rectangular sample cell with a 0.6 mm optical path, Two-Way Light layout and open ends at both sides of the sample body. Its 15 µL nominal capacity suits compact custom assemblies where you want to define the sealing and sample-handling arrangement yourself. Sold as 1 piece.
Description
MQQFC061 is a JGS1 quartz rectangular sample cell for UV/Vis work from 200 to 2500 nm when you need a 0.6 mm optical path in an open-ended body. Its 15 µL nominal capacity and open-at-both-ends structure make it useful for custom fixtures, end plates or sealing arrangements that you already control.
This is a cell body rather than a complete fitted flow cell. You select it for the short fixed path, the rectangular body format and the freedom to build the end support and sample access around your own setup.
- Path Length
- 0.6 mm
- Sample Volume (Nominal)
- 15 µL
- Opening Configuration
- Open at Both Ends
Selection Specifications
| Product Kind | Specialized Cell |
|---|---|
| Cell Type | Rectangular Sample Cell |
| Measurement Mode | Transmission Spectroscopy |
| Path Length | 0.6 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 15 µL |
| External Dimensions | 30 × 30 × 18 mm |
| Body Height | 18 mm |
| Base Dimensions | 30 × 30 mm |
| Internal Dimensions | 18 × 0.6 × 18 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Fabrication Method | Molded 83 |
| Opening Configuration | Open at Both Ends |
| Pack Quantity | 1 Piece |
Choose this option
Choose MQQFC061 when the optical path is set by your method, but the end handling needs to come from your own hardware. The open-ended format is useful when you need the sample chamber inside a custom mount instead of a cell supplied with caps, tubing or fixed fittings.
What makes this option different
- 0.6 mm optical path: for methods designed around a short fixed transmission distance.
- Open at both ends: the cell body can be integrated with your own end plates, seals or sample-loading arrangement.
- 15 µL nominal capacity: helpful for planning the cell body, while final fill in a completed assembly depends on your added sealing or manifold parts.
- JGS1 quartz body for 200 to 2500 nm: suited to UV/Vis applications within this stated wavelength range.
Structure and dimensions

Using this cell
Mount the cell so the beam passes through the 0.6 mm path in the intended direction. Keep the orientation consistent between blank and sample measurements, especially when the cell is installed into a dedicated holder.
Because both ends are open, filling, sealing and bubble control are part of your own assembly design. The 15 µL figure is the nominal capacity of the cell body itself and should not be treated as the total liquid volume of a finished fixture.
First-use check
- Inspect the optical faces, end openings and edges for chips, residue or handling marks.
- Test the fit in the holder before adding sample or sealing parts.
- Run a blank in the final mounted orientation and confirm that the beam passes through the intended optical area.
- Verify sealing and remove trapped bubbles before measurement.
Fit and optical alignment

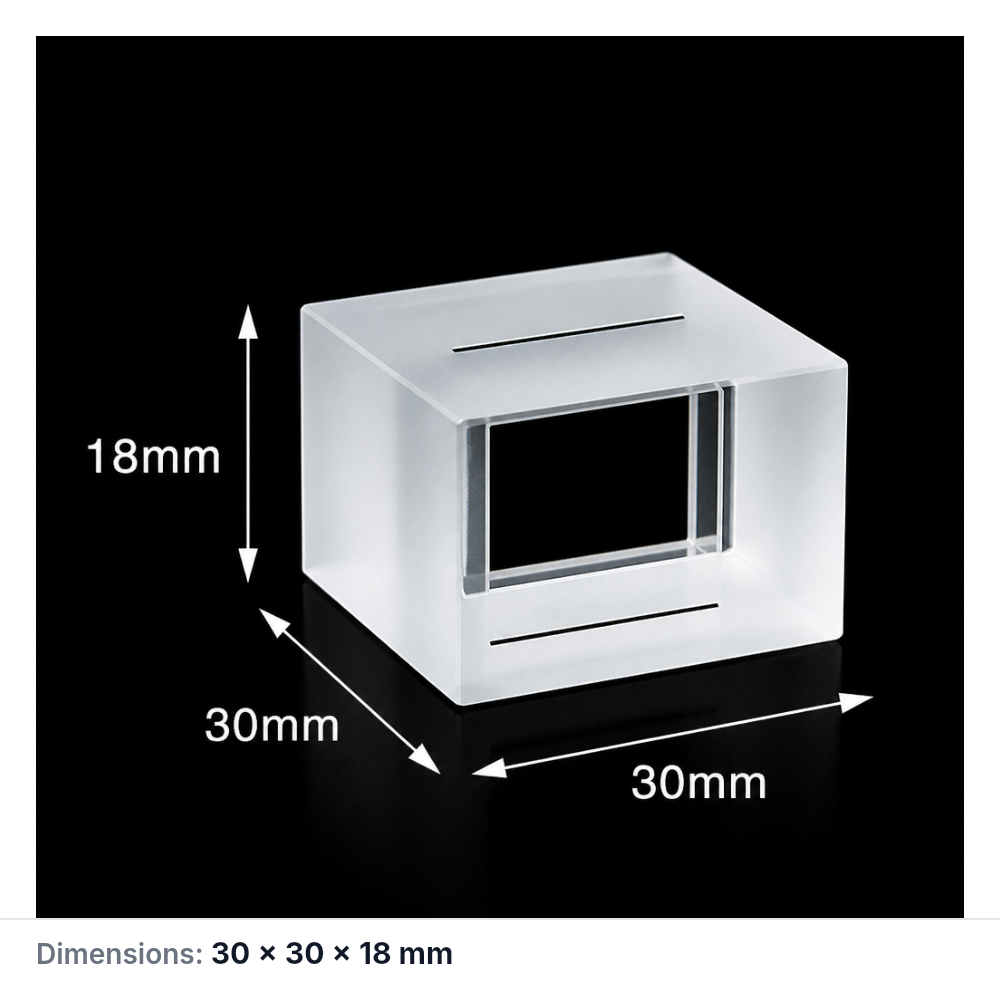

The outer body is 30 × 30 × 18 mm, which helps you check holder clearance and support surfaces. The internal 18 × 0.6 × 18 mm dimensions describe the sample chamber rather than the holder opening.
Z Height is not specified for this SKU. If your instrument or fixture depends on a defined beam-center height, check alignment from the actual mount rather than from the outside body size alone.

Solvents and cleaning
This cell uses Molded 83 fabrication. This construction is commonly chosen for organic-solvent methods and applications that may involve heat, but suitability still depends on the complete wetted assembly, including any seals or end hardware that you add.
Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces gently with non-abrasive optical tissue and choose cleaning liquids with the full assembly in mind.
Included with this option
1 rectangular sample cell, SKU MQQFC061. The listed price is for one piece.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for changes to path length, chamber geometry, external size, openings and fabrication requirements. If this cell needs to match a specific holder or optical layout, send a labelled drawing or sketch with the critical dimensions, beam position, sample conditions and required quantity.
Send a product-selection enquiry with SKU MQQFC061 and your mounting or sealing details.
Additional information
| Weight | 97 g |
|---|
