(MQQFC062) Quartz Rectangular Sample Cell, 1 mm Path, Open at Both Ends

Weight97 g
SKU: MQQFC062

$528.00

In Stock

MQQFC062 is a JGS1 quartz rectangular sample cell with a 1 mm optical path, Two-Way Light layout and open ends at both sides of the sample body. Its 25 µL nominal capacity suits compact custom assemblies where you want to define the sealing and sample-handling arrangement yourself. Sold as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC062 is a JGS1 quartz rectangular sample cell for UV/Vis work from 200 to 2500 nm when you need a 1 mm optical path in an open-ended body. Its 25 µL nominal capacity and open-at-both-ends structure make it suitable for custom holders or assemblies where the sealing and sample access are set by your own design.

This item is supplied as the cell body rather than a complete ready-to-connect flow cell. It is a practical choice when the optical path is fixed by your method, but the end hardware must match your own fixture or experimental arrangement.

Path Length
1 mm
Sample Volume (Nominal)
25 µL
Opening Configuration
Open at Both Ends

Selection Specifications

Product KindSpecialized Cell
Cell TypeRectangular Sample Cell
Measurement ModeTransmission Spectroscopy
Path Length1 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)25 µL
External Dimensions30 × 30 × 18 mm
Body Height18 mm
Base Dimensions30 × 30 mm
Internal Dimensions18 × 1 × 18 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodMolded 83
Opening ConfigurationOpen at Both Ends
Pack Quantity1 Piece

Choose this option

Choose MQQFC062 when you need a defined 1 mm path in a rectangular quartz body and you want to control how the sample chamber is closed, filled or connected. The open-ended format works well where the surrounding support, end plates or sealing parts are part of your own assembly.

View the English selection reference.

What makes this option different

  • 1 mm optical path: suited to methods built around this fixed transmission distance.
  • Open at both ends: sealing and sample retention come from your holder or end assembly, not from built-in closures.
  • 25 µL nominal capacity: useful for planning the cell body, while final liquid requirement depends on the completed setup.
  • JGS1 quartz body for 200 to 2500 nm: suitable for UV/Vis use across the stated wavelength range.

Structure and dimensions

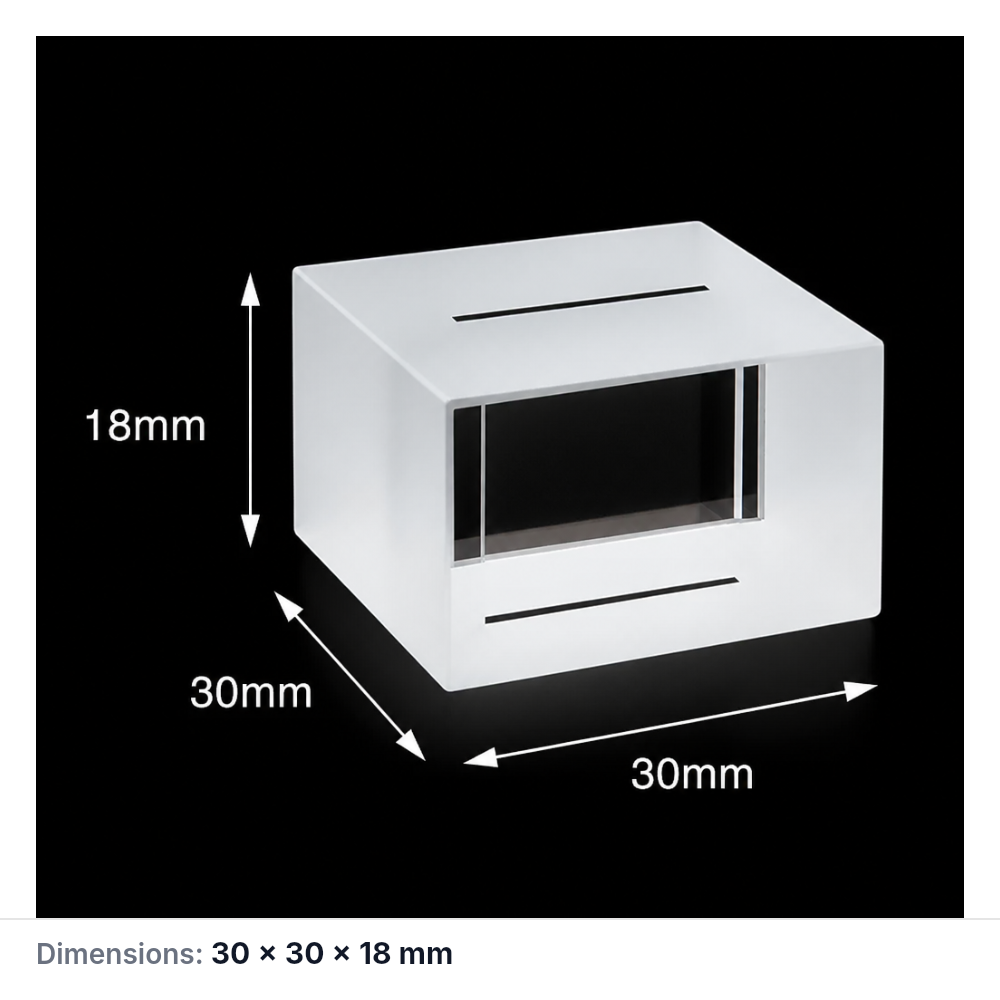

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Install the cell so light passes through the 1 mm path in the intended orientation. Keep that orientation consistent during blank and sample measurements, especially if the holder does not force a single insertion direction.

Because this is an open-ended chamber, the filling, sealing and bubble-removal procedure should be defined as part of your own assembly. The 25 µL value applies to the cell body itself and should not be treated as the total liquid volume of any connected holder, seal or manifold.

First-use check

  1. Inspect the optical faces, end openings and edges before installation.
  2. Check the fit and support in the holder before adding sample.
  3. Run a blank in the final mounted orientation to confirm beam alignment.
  4. Verify sealing and remove bubbles or external droplets before measurement.

Fit and optical alignment

The 30 × 30 × 18 mm outside dimensions help with holder clearance and support-point planning. The internal 18 × 1 × 18 mm dimensions describe the chamber geometry, not the holder opening or beam-center position.

Z Height is not specified for this SKU. If vertical beam position is important in your instrument or fixture, check it from the actual mounting design rather than assuming it from the outer body dimensions.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Molded 83 fabrication. This construction is commonly chosen for organic-solvent methods and applications that may involve heat, but suitability depends on the full wetted assembly, including any seals, end plates or fittings you add.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces gently with non-abrasive optical tissue and choose cleaning liquids that suit the complete assembled setup.

Included with this option

1 rectangular sample cell, SKU MQQFC062. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to path length, chamber dimensions, external size, openings and fabrication requirements. If this cell needs to match a specific holder or optical layout, send a labelled drawing or sketch with the critical dimensions, beam position, sample conditions and required quantity.

Send a product-selection enquiry with SKU MQQFC062 and your fixture or sealing details.
