(MQQFC008) Quartz Rectangular Sample Cell, 1 mm Path, 200 µL, Open at Both Ends

Weight150 g
SKU: MQQFC008

$179.00

In Stock

MQQFC008 is a JGS1 quartz rectangular sample cell with a 1 mm optical path, 200 µL nominal capacity and Two-Way Light layout. Open at both ends, it is supplied as 1 piece for use in your own holder, sealing or fluid-handling arrangement. Molded 83.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC008 is a JGS1 quartz rectangular sample cell with a 1 mm optical path, 200 µL nominal capacity and Two-Way Light layout. Open at both ends, it is intended for setups that need a defined rectangular sample chamber inside a separately designed holder or fluid-handling arrangement rather than a ready-connected flow cell.

The 10 × 1 × 20 mm internal chamber and compact 12.5 × 3.5 × 20 mm outer body make this option useful when chamber geometry, body thickness and short overall height all matter to the fixture design. This listing is for one open-ended cell body.

Path Length
1 mm
Sample Volume (Nominal)
200 µL
Opening Configuration
Open at Both Ends

Selection Specifications

Product KindSpecialized Cell
Cell TypeRectangular Sample Cell
Measurement ModeTransmission Spectroscopy
Path Length1 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)200 µL
External Dimensions12.5 × 3.5 × 20 mm
Body Height20 mm
Base Dimensions12.5 × 3.5 mm
Internal Dimensions10 × 1 × 20 mm
MaterialQuartz
Material GradeJGS1
Fabrication MethodMolded 83
Opening ConfigurationOpen at Both Ends
Pack Quantity1 Piece

Choose this option

Choose MQQFC008 when you need a 1 mm transmission path in a compact rectangular quartz body and your assembly already defines how the open ends will be supported and sealed. It is particularly useful where the 20 mm body height and 12.5 × 3.5 mm outer section matter to holder clearance.

View the English selection reference.

What makes this option different

  • 1 mm optical path with a 10 × 1 × 20 mm internal chamber for a defined rectangular sample region.
  • Two-Way Light layout for straight-through transmission through one opposing window pair.
  • Open at both ends so mounting, sealing and any added connections can be built around your own assembly.
  • Compact 12.5 × 3.5 × 20 mm exterior for fixtures where body thickness and overall height are limited.
  • Molded 83 optical-contact construction often chosen for methods involving organic solvents or elevated-temperature work.

Structure and dimensions

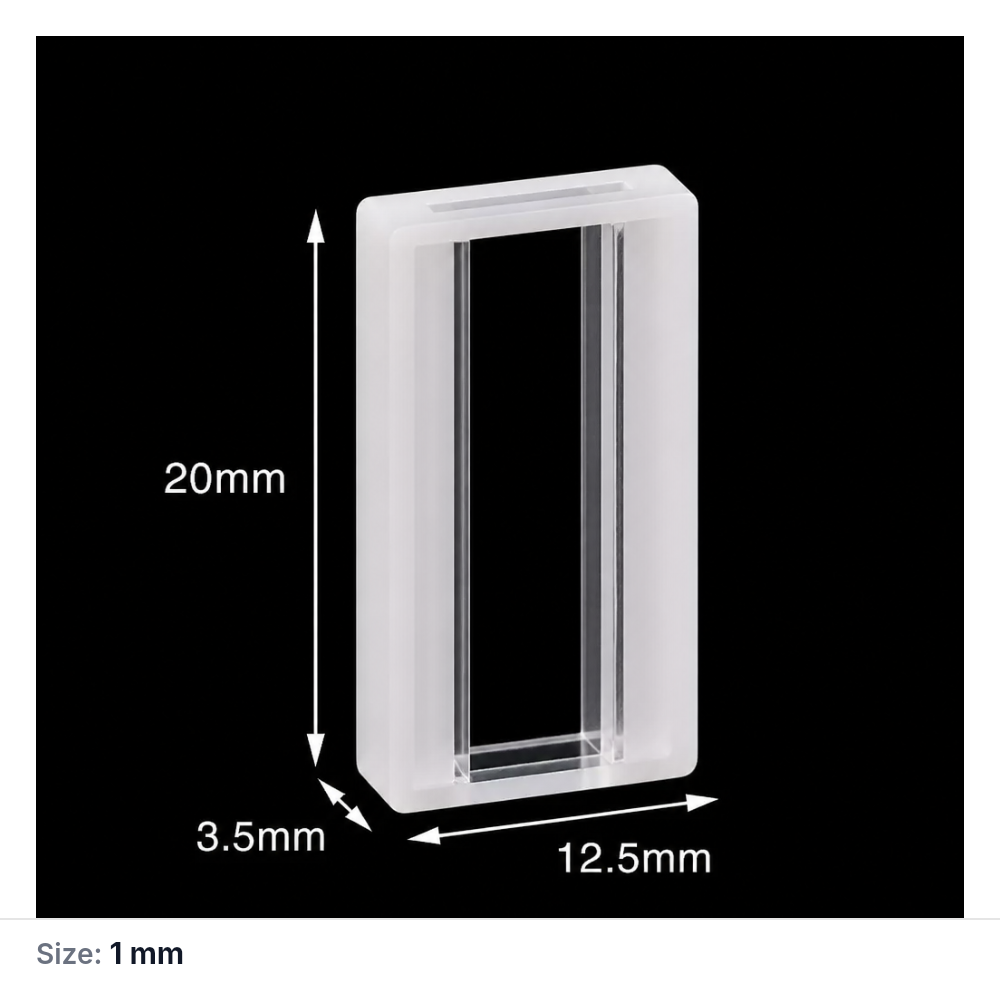

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Use this cell as an open-ended chamber inside a separately prepared holder or end-sealing arrangement. Fill and retain the sample through your own assembly method, remove visible bubbles, and keep blank and sample in the same orientation during measurement.

The 200 µL figure is the nominal capacity of the cell body itself. Minimum working volume is not established here, and the total liquid volume of a connected assembly can be higher once seals, tubing or end interfaces are added.

First-use check

  1. Inspect the transmitting faces, end edges and chamber openings for dust or residue.
  2. Check body support and beam position in the intended holder before measurement.
  3. Test the sealing and filling arrangement with a blank liquid before introducing sample.

Fit and optical alignment

Use the external 12.5 × 3.5 × 20 mm dimensions to check holder fit and body support. The internal 10 × 1 × 20 mm dimensions describe the sample chamber and should not be used as fixture-entry dimensions.

Z Height is not established for this listing, so this page does not claim direct instrument compatibility from the outer size alone. Open ends also do not establish a pressure rating, leak-tightness or fluid connection without a separately confirmed mounting design.

English selection reference
Selection reference ↗

Solvents and cleaning

Molded 83 is often chosen for methods involving organic solvents or elevated-temperature work. Suitability still depends on the complete assembly and the actual liquid, concentration, temperature and contact time, especially once seals or added fittings are involved.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean exterior optical faces gently with non-abrasive optical tissue.

Included with this option

1 MQQFC008 rectangular sample cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation.

Send a product-selection enquiry with SKU MQQFC008, your drawing or holder details, sample conditions, quantity and delivery destination.
