(MQQFC007) Quartz Rectangular Sample Cell, 0.6 mm Path, 14 µL, Open at Both Ends
$419.00
MQQFC007 is a JGS1 quartz rectangular sample cell with a 0.6 mm optical path, Four-Way Light access and 14 µL nominal capacity. Open at both ends, it is supplied as 1 piece for use in your own holder, sealing or fluid-handling arrangement. Standard 80.
Description
MQQFC007 is a JGS1 quartz rectangular sample cell with a 0.6 mm optical path, 14 µL nominal capacity and Four-Way Light layout. Open at both ends, it is intended for users who need a very small rectangular sample channel inside their own fixture, seal or custom assembly rather than a finished cell with built-in fittings.
The combination of a 0.6 × 0.6 × 40 mm internal channel and a 12 × 12 × 40 mm outer body helps you plan both optical access and mechanical support. This option is sold as one open-ended cell body.
- Path Length
- 0.6 mm
- Sample Volume (Nominal)
- 14 µL
- Opening Configuration
- Open at Both Ends
Selection Specifications
| Product Kind | Specialized Cell |
|---|---|
| Cell Type | Rectangular Sample Cell |
| Measurement Mode | Transmission Spectroscopy |
| Path Length | 0.6 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 14 µL |
| External Dimensions | 12 × 12 × 40 mm |
| Body Height | 40 mm |
| Base Dimensions | 12 × 12 mm |
| Internal Dimensions | 0.6 × 0.6 × 40 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Fabrication Method | Standard 80 |
| Opening Configuration | Open at Both Ends |
| Pack Quantity | 1 Piece |
Choose this option
Choose MQQFC007 when you need a very short 0.6 mm path together with optical access from more than one side of the cell body. The open-at-both-ends format is useful when your fixture, seals or connected hardware define how the sample is introduced and retained, and when the 12 × 12 mm outer cross-section suits your holder design.
What makes this option different
- 0.6 mm optical path with a 0.6 × 0.6 × 40 mm internal channel for a very small rectangular sample region.
- Four-Way Light layout for optical access from additional side faces as well as the main transmission path.
- Open at both ends so sealing, filling and any fluid connections can be designed around your own assembly.
- 12 × 12 × 40 mm exterior for checking holder space and body support separately from the channel size.
- Standard 80 adhesive-bonded quartz construction for routine room-temperature aqueous samples and buffers.

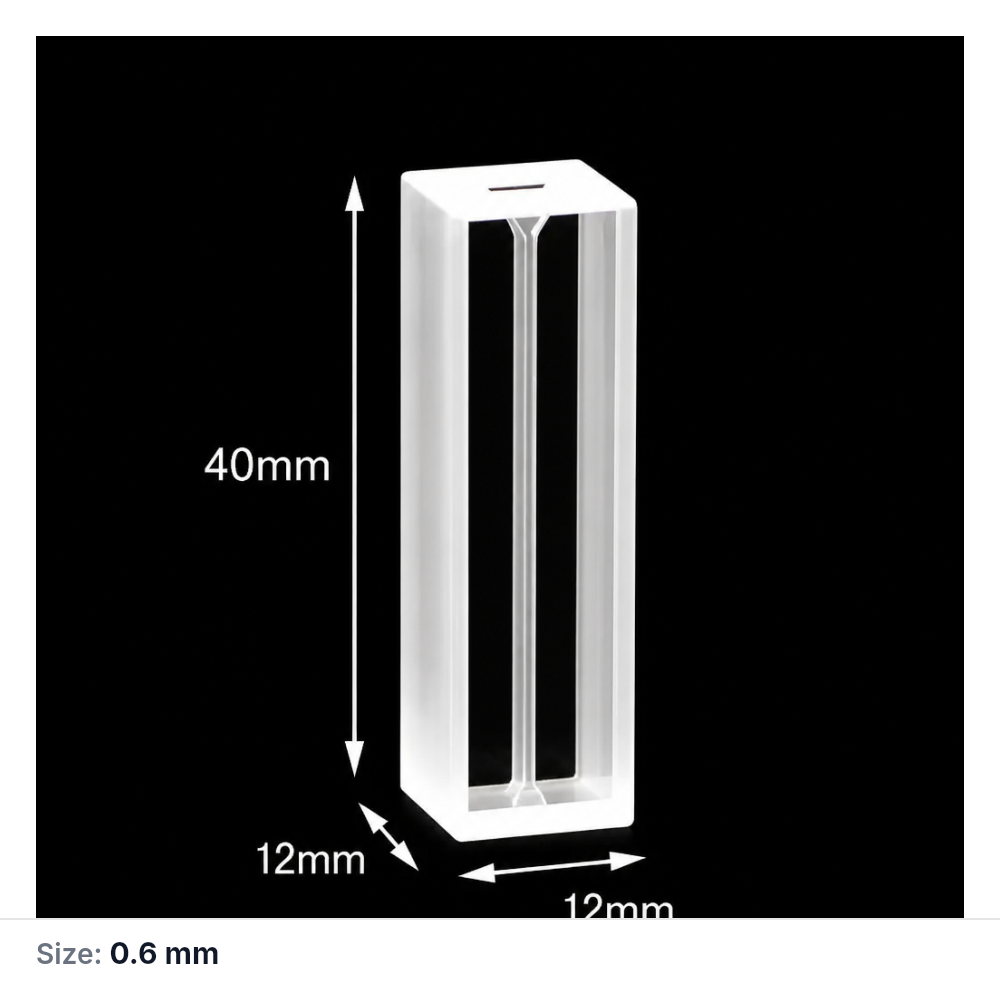

Structure and dimensions

Using this cell
Use this cell as an open-ended sample chamber within a separately prepared mounting arrangement. Align the beam to the intended path, keep the same orientation for blank and sample, and remove visible bubbles or exterior droplets before recording data.
Because both ends are open, sample retention depends on your own seals, interfaces or holder design. The 14 µL value is the nominal cell volume; once end interfaces or connected dead volume are added, the full assembled liquid volume can be different.
First-use check
- Inspect the optical faces, end edges and channel openings for dust or handling residue.
- Check body support and beam alignment in the intended fixture before introducing sample.
- Test your sealing and filling arrangement with a blank liquid before measurement.
Fit and optical alignment
Use the 12 × 12 × 40 mm exterior to check body support, holder opening and beam clearance. The 0.6 × 0.6 × 40 mm internal dimensions describe the sample chamber and should not be treated as holder-fit dimensions.
Z Height is not established for this listing, so it should not be treated as a direct match for instruments or fixtures that require a known beam-center height. Open ends also do not create a fluid connection, pressure rating or leak-tight assembly by themselves.

Solvents and cleaning
Standard 80 is an adhesive-bonded quartz construction and is generally chosen for routine room-temperature aqueous samples and buffers. If your method involves organic samples, organic cleaning solvents or heated treatment, ask about a more suitable construction before ordering.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the exterior optical faces gently with non-abrasive optical tissue.
Included with this option
1 MQQFC007 rectangular sample cell. The listed price is for one piece.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation.
Send a product-selection enquiry with SKU MQQFC007, your drawing or holder details, sample conditions, quantity and delivery destination.
Additional information
| Weight | 50 g |
|---|
