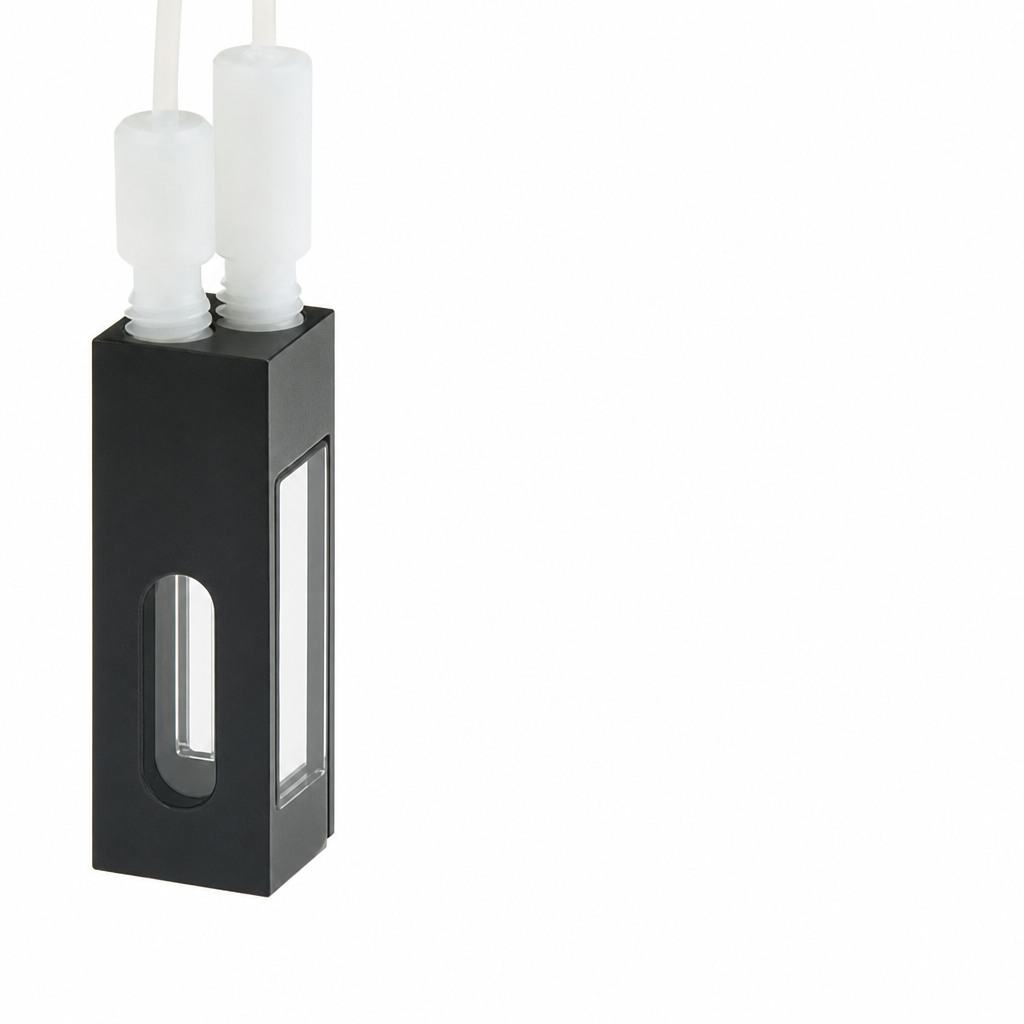

(MQQFC065) Black-Wall Quartz Flow Cell, 10 mm Path, 450 µL, 15 mm Z Height
$432.00
JGS1 quartz flow cell with a 10 mm optical path, 450 µL nominal capacity and a 15 mm beam-centre height. Three optical faces include a 3 × 15 mm window, surrounded by a black body. Two top M6 fluid interfaces are separate from the optical opening. The bare body is 12.5 × 12.5 × 35 mm; Standard 80 construction, price per cell.
Description
MQQFC065 is the 450 µL black-wall flow-cell version with three optical faces and an elongated 3 × 15 mm optical window. It combines a 10 mm measurement path with a specified 15 mm base-to-beam-centre height.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 450 µL
- Opening Configuration
- Two Top Fluid Connections
Selection Specifications
| Product Kind | Flow Cell |
|---|---|
| Cell Type | Flow Cell |
| Measurement Mode | Fluorescence Spectroscopy |
| Path Length | 10 mm |
| Light Transmission Configuration | Three-Way Light |
| Z Height | 15 mm |
| Optical Window Dimensions | 3 × 15 mm |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 450 µL |
| External Dimensions | 12.5 × 12.5 × 35 mm |
| Cell Body Dimensions | 12.5 × 12.5 × 35 mm |
| External Dimensions Scope | Body Only |
| Body Height | 35 mm |
| Base Dimensions | 12.5 × 12.5 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Port Count | 2 |
| Port Thread | M6 |
| Fabrication Method | Standard 80 |
| Opening Configuration | Two Top Fluid Connections |
| Port Layout | Top connection at the left in the referenced original; Top connection at the right in the referenced original |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Micro Flow Cell |
Choose this option
Choose this configuration when your method requires adjacent optical access around the larger nominal sample region. Check beam position and opening size independently of the fluid connection geometry.
What makes this option different
- 10 mm path / 450 µL nominal capacity: these identify the selected sample-region option. Nominal capacity is not a minimum working fill or a complete circuit volume.
- Three optical faces: the adjacent optical access can support an appropriate fluorescence detection layout when matched to your instrument.
- 3 × 15 mm optical window: the rectangular window dimensions describe optical access, rather than the liquid-tube bore.
- 15 mm Z Height: the centre-height reference runs from the base of the body to the illuminated region, rather than from the bottom edge of a window.
- Two top M6 interfaces: plan the fitting and tubing arrangement for your liquid circuit. White fitting colour alone does not establish a material specification.
Using this cell
Support the body while attaching or removing fittings, and keep tubing loads off the optical assembly. Flush with a suitable blank, watch for bubbles at the illuminated region and keep the cell seated in the same orientation for blank and sample.
First-use check
- Inspect the optical faces, connection edges and sample region for damage or residue.
- Check holder support, beam direction and connection clearance before completing the liquid circuit.
- Flush with a suitable blank, remove bubbles and establish a stable reference before measuring the sample.
Fit and optical alignment
The bare body is 12.5 × 12.5 × 35 mm. Fittings and tubing project above that body envelope, so the 35 mm dimension is not the full installed height. Check holder seating, the 15 mm beam-centre height and the optical opening together; leave access to both top interfaces.
View the English selection reference.

Solvents and cleaning
Standard 80: Standard 80 is an adhesive-bonded construction for routine room-temperature aqueous samples and buffers. Avoid organic sample solvents and organic cleaning agents on this bonded assembly. Check exposure for every wetted fitting, seal and tube as well as the cell.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe exterior optical faces gently with non-abrasive optical tissue, and keep handling loads off projecting connections.
Included with this option
The listed price is per flow cell. Specify the matching fittings and external tubing required by your circuit when ordering; optical-aperture dimensions do not specify those fluid accessories.
Availability and ordering
Contact us to confirm current availability and dispatch timing for your quantity. For a required delivery date, check timing before checkout; preparation and production are separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz projects involving optical paths, sample regions, optical access, connection geometry and mounting dimensions. Modified designs and prototype batches are quoted separately. Send your drawing, holder details, sample conditions and quantity through the contact page, and include MQQFC065.
Additional information
| Weight | 2250 g |
|---|
