(MQQFC093) Quartz Flow Cell, 10 mm Path, 1.5 mL, Four Fluid Tubes

Weight120 g
SKU: MQQFC093

$335.00

In Stock

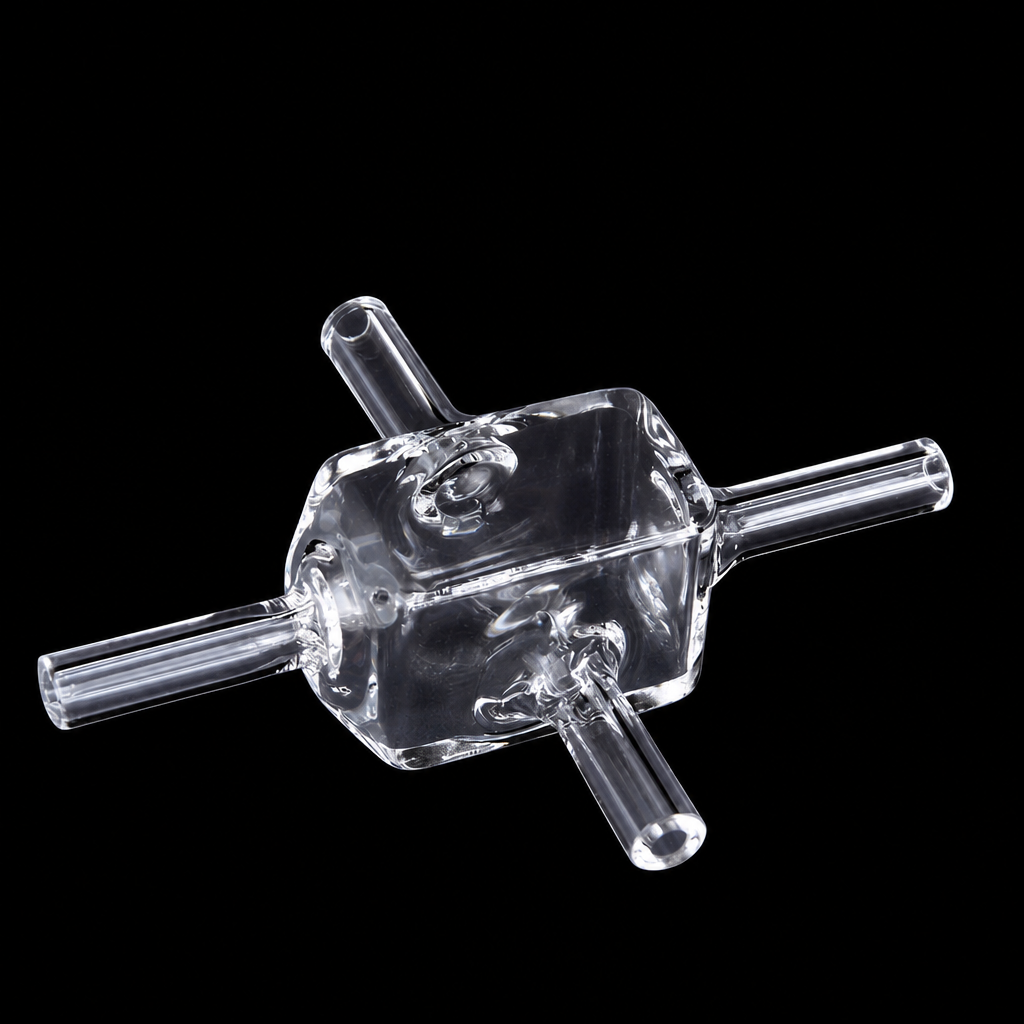

JGS1 quartz flow cell with a 10 mm optical path, 1.5 mL nominal capacity and four fixed quartz fluid tubes: two axial and two lateral. The tubes are 4 mm OD / 2 mm ID; four-sided optical access is a separate feature from the four liquid connections. Molded 83 fabrication; one cell supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC093 is a JGS1 quartz flow cell for UV/Vis setups that need a 10 mm optical path in a compact in-line format. Its 1.5 mL nominal capacity, four-sided optical access layout and four projecting tubes make it useful when you need to plan the optical path and tubing approach together, rather than relying on a simple straight two-port arrangement.

Path Length
10 mm
Sample Volume (Nominal)
1.5 mL
Opening Configuration
Four Fluid Tubes

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length10 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)1.5 mL
External Dimensions12.5 × 12.5 × 16 mm
Cell Body Dimensions12.5 × 12.5 × 16 mm
External Dimensions ScopeBody Only
Body Height16 mm
Base Dimensions12.5 × 12.5 mm
MaterialQuartz
Material GradeJGS1
Port Count4
Tube Outer Diameter (OD)4 mm
Tube Inner Diameter (ID)2 mm
Fabrication MethodMolded 83
Opening ConfigurationFour Fluid Tubes

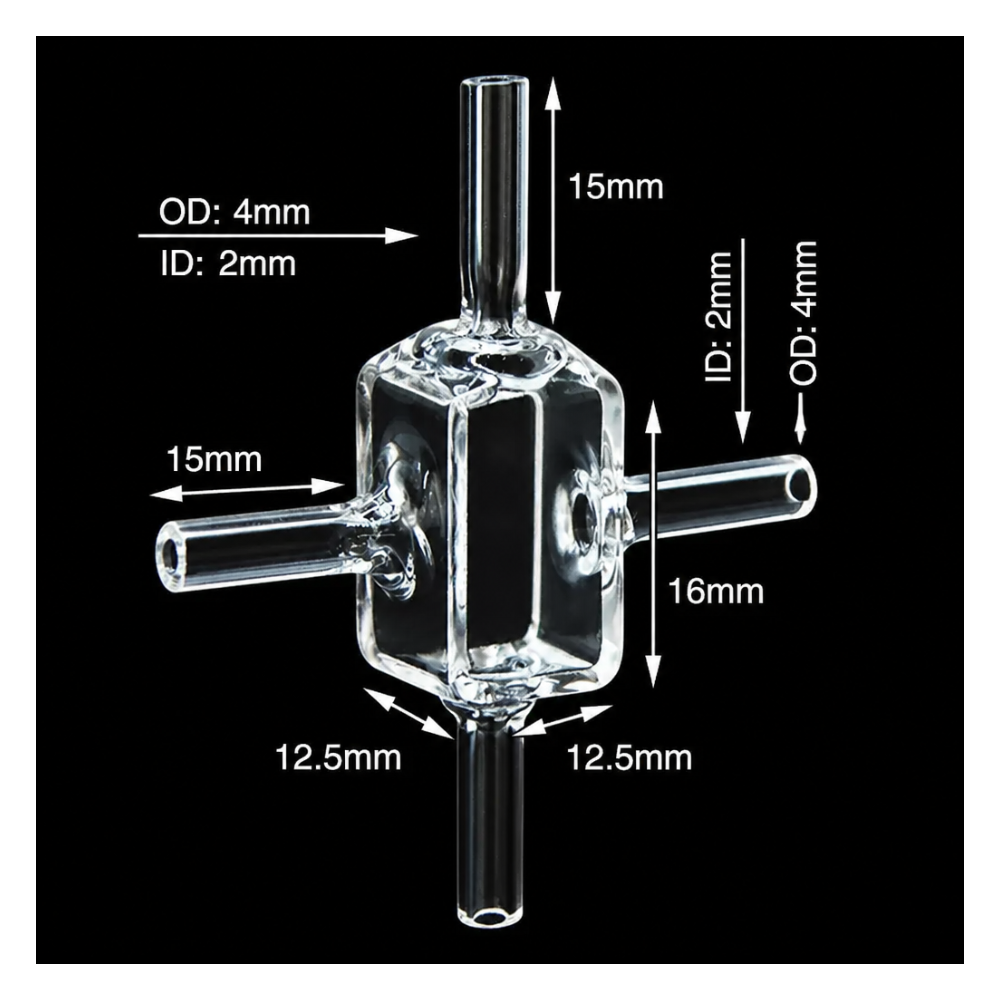

Port LayoutAxial end A, shown at the top; Opposite axial end B, shown at the bottom; Lateral face A, shown on the left; Opposite lateral face B, shown on the right
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose MQQFC093 when the sample line needs more than one connection direction around the cell body. The four-tube layout helps when surrounding hardware limits how tubing can enter and leave the cell, while the 10 mm path keeps the optical length in a familiar format for UV/Vis measurements.

What makes this option different

  • Four fixed quartz fluid tubes: two axial and two lateral connections, each 4 mm OD / 2 mm ID. The four optical faces describe light access, not four independent liquid channels.
  • 10 mm optical path with 1.5 mL nominal capacity in a compact flow-cell format.
  • four-sided optical access geometry for optical access on multiple sides of the sample region.
  • 12.5 × 12.5 × 16 mm body size, with the tube projections checked separately for installed clearance.

Using this cell

Support the cell by its main body during installation rather than by the projecting tubes. Before connecting liquid, plan how all four openings will be connected or appropriately closed for your circuit, and support the external tubing independently. The connection positions do not establish inlet/outlet roles, independent internal channels or a pressure rating. Separate closures and adapters are not stated as included.

Fill the cell gradually and inspect the optical region for trapped bubbles before measurement. The stated 1.5 mL is the nominal cell volume, not a minimum working fill, so the liquid level and flow condition should fully cover the beam path used in your method.

First-use check

  1. Inspect the optical faces and all four tube openings for chips, residue or transport damage.
  2. Trial-fit the cell with the intended tubing layout to confirm body seating and external clearance.
  3. Rinse with a suitable liquid, fill slowly, and remove bubbles before running a blank.

Fit and optical alignment

View the English selection reference.

The listed 12.5 × 12.5 × 16 mm dimensions describe the bare body only. They do not include the projecting tubes, so the installed envelope is larger once tubing is attached and should be checked as a complete assembly in your holder or fixture.

Z Height is not listed for this SKU. If your instrument depends on a defined beam-centre height, confirm that point before ordering rather than assuming it from the external body shape.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell uses Molded 83 fabrication. This construction is commonly selected for organic-solvent methods and applications involving temperature control, but suitability still depends on the complete wetted assembly and the actual liquid, concentration, temperature and contact time used in service.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Clean the external optical faces gently with non-abrasive optical tissue.

Included with this option

1 quartz flow cell.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send your drawing or holder details, sample conditions and quantity through the contact page, and mention SKU MQQFC093.

Additional information

Weight120 g
