(MQQFC115) JGS1 Quartz Flow Cell, 10 / 28 mm Paths, 7.5 mL, Opposed Tubes

Weight50 g
SKU: MQQFC115

$395.00

In Stock

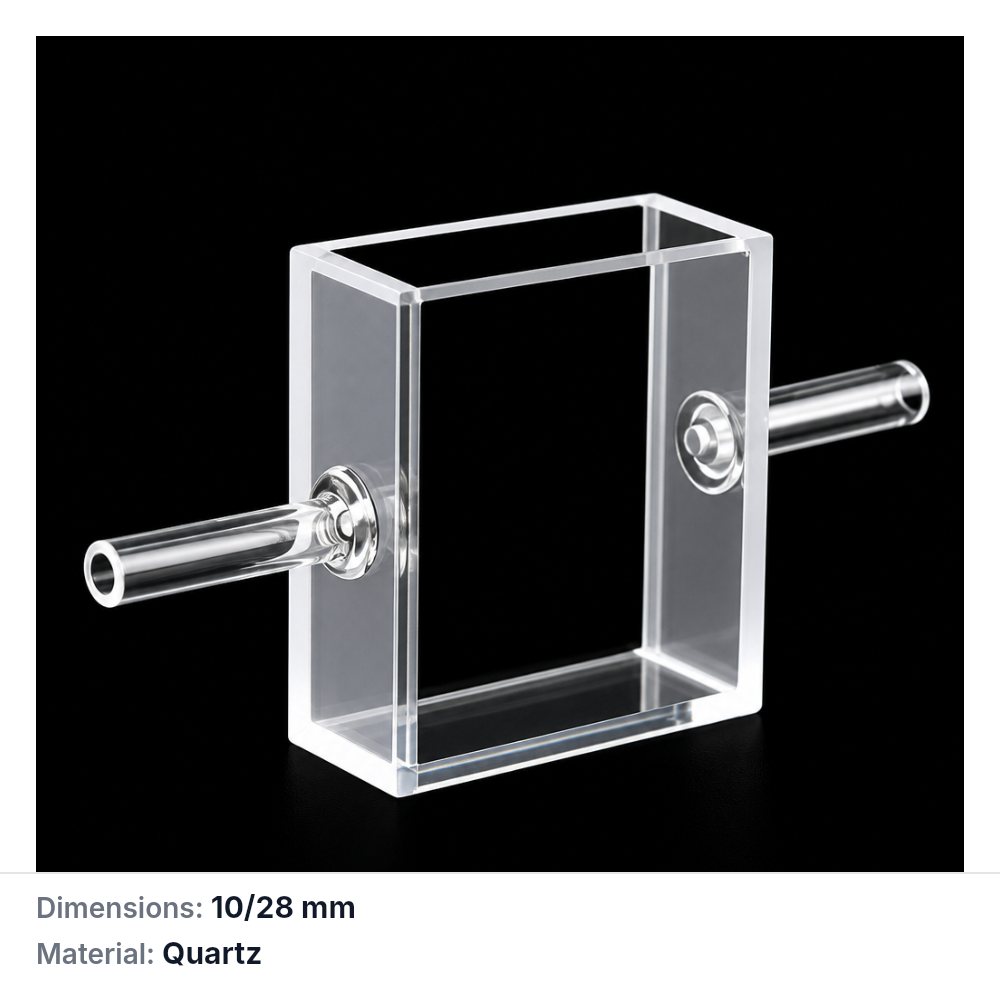

Standard 80 adhesive-bonded JGS1 quartz flow cell with 10 mm and 28 mm optical paths and 7.5 mL nominal capacity. Opposed side tubes have 4 mm OD / 2 mm ID, with a 70 mm span including the fixed tubes; intended for routine room-temperature water-based samples and buffers. One cell is supplied.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

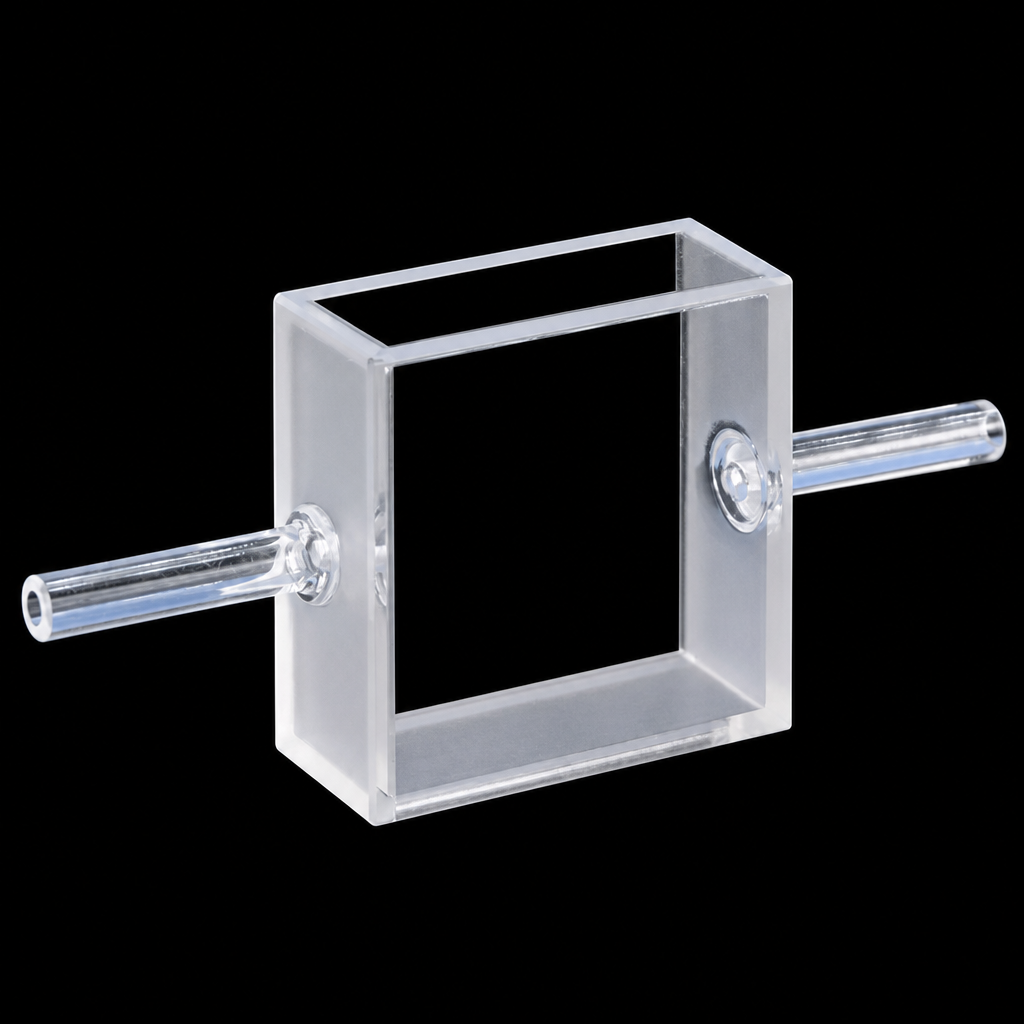

MQQFC115 is a JGS1 quartz flow cell with 10 / 28 mm optical paths and 7.5 mL nominal capacity. The two tubes project from opposite sides of the quartz body. Its 31 × 13 × 31 mm body and 4 mm OD / 2 mm ID tubes should be checked separately when planning the measurement region and fluid connections.

View the English selection reference.

Path Length
10 mm / 28 mm (dual path)
Sample Volume (Nominal)
7.5 mL
Opening Configuration
Two Opposed Side Tubes

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length10 mm / 28 mm (dual path)
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)7.5 mL
External Dimensions70 × 13 × 31 mm
Cell Body Dimensions31 × 13 × 31 mm
Uncapped Cell Dimensions70 × 13 × 31 mm
External Dimensions ScopeUncapped Cell
MaterialQuartz
Material GradeJGS1
Port Count2
Tube Outer Diameter (OD)4 mm
Tube Inner Diameter (ID)2 mm
Fabrication MethodStandard 80
Opening ConfigurationTwo Opposed Side Tubes
Port LayoutOpposite lateral face A, shown on the left; Opposite lateral face B, shown on the right
Wall Thickness1.5 mm
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose this version when your method needs the specified 10 mm and 28 mm optical directions with fluid connections on opposite sides of the body. Use the body dimensions to plan holder seating and the full 70 mm span to plan side clearance.

What makes this option different

  • 10 / 28 mm specified optical path directions.
  • 7.5 mL nominal capacity.
  • The two tubes project from opposite sides of the quartz body.
  • 4 mm OD / 2 mm ID tube connection dimensions.

Structure and dimensions

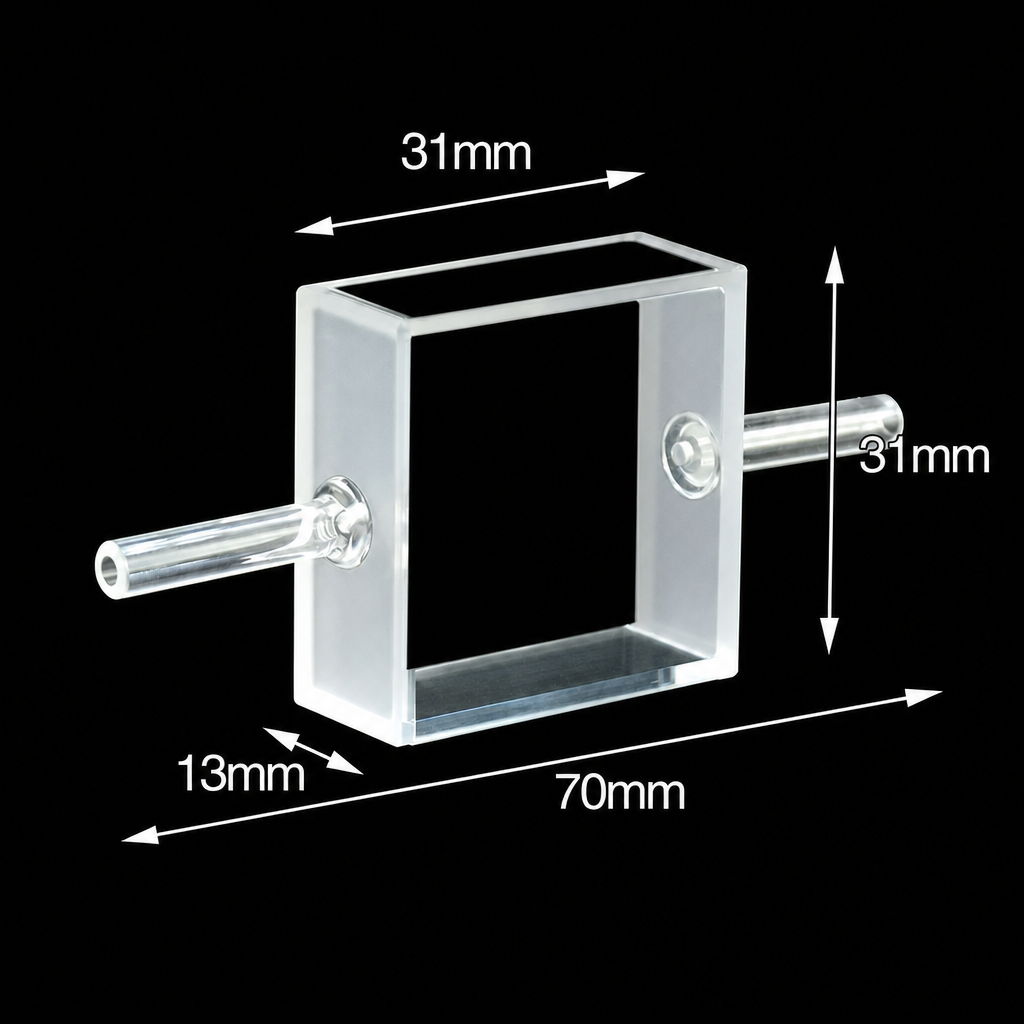

MQQFC115 body and connection dimensions; allow separate clearance for the projecting tubes.
MQQFC115 body and connection dimensions; allow separate clearance for the projecting tubes.Open image ↗

Using this cell

Select the required 10 mm or 28 mm optical direction before preparing the blank, and keep that same direction and seating for sample readings. Four-sided optical access provides the two specified transmission directions; the path lengths do not describe the tube bores.

Support the body during installation and relieve strain from the connected tubing. Fill and flush carefully, checking that the illuminated region is covered and free of bubbles. The 7.5 mL value is nominal capacity, not a minimum working-volume specification; external tubing and connectors hold additional liquid.

First-use check

  1. Inspect the optical region, body and tube ends.
  2. Test holder support and connection clearance before introducing liquid.
  3. Run a method blank after bubble removal in the final installed position.

Fit and optical alignment

The quartz body is 31 × 13 × 31 mm. The fixed cell including its opposed tubes spans 70 × 13 × 31 mm. Leave additional space for the connected flexible tubing and its bends, and support the body without loading the projecting tubes.

A Z Height is not specified for this option. Compare your beam position and footprint with the mounted optical region. Send any pressurized-system requirements for assessment of the complete cell, connections and operating conditions before use.

Solvents and cleaning

Standard 80 is an adhesive-bonded construction for routine room-temperature water-based samples and buffers. Avoid organic samples and organic cleaning solvents with this assembly. For solvent-based, heated or demanding chemical methods, compare an appropriate Sintered or Molded construction for the complete cell and connections.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaners. Clean exterior optical faces gently with suitable non-abrasive optical tissue.

Included with this option

One MQQFC115 quartz flow cell. The listed price is for one cell.

Availability and ordering

Contact us to check current availability and dispatch timing when a delivery date matters to your work. Preparation or production, carrier transit and customs clearance are separate considerations.

Discuss a custom version

We can review changes to optical path, chamber geometry, tube position or connection dimensions. Send your requirements with SKU MQQFC115, a drawing or holder details, liquid conditions and quantity.

Additional information

Weight50 g
