(C102CS84) Quartz Micro Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102CS84

Original price was: $29.00.Current price is: $27.00.

In Stock

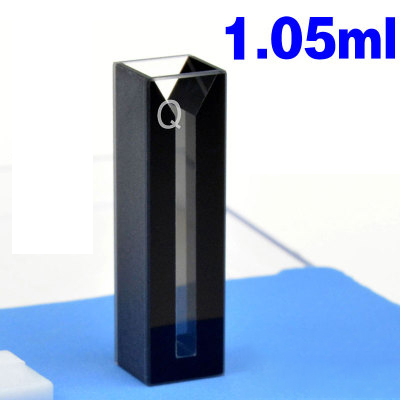

JGS1 quartz micro cuvette for UV/Vis spectroscopy, with a 10 mm optical path, Two-Way Light geometry and 1.05 mL nominal capacity. This option uses a compact 3 mm sample-region channel in a black-wall micro-cuvette body and is sold as 1 cuvette, with a closure included.

In Stock

SKU: C102CS84 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS84 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy when you need a standard 10 mm optical path in a compact body. This option combines Two-Way Light geometry with a 3 mm sample-region channel and 1.05 mL nominal capacity, so you can plan around a defined transmission path without moving to a larger cell format. A closure is included, and the MQ sale unit is 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	3 mm

Choose this option

Choose C102CS84 when your method uses a 10 mm transmission path but your setup suits a micro cuvette body and a narrower sample region. The 1.05 mL nominal capacity is useful for preparing fills and blanks, while the black-wall body style is part of this exact SKU’s format. It is a practical choice for UV/Vis work over 200–2500 nm when your holder and beam position match this cell geometry.

What makes this option different

10 mm optical path for UV/Vis methods built around this common path length.
Two-Way Light configuration for straight transmission through the defined optical faces.
3 mm sample-region channel, which is narrower than a full-width clear chamber and affects how you fill and align the sample region.
1.05 mL nominal capacity for this exact micro cuvette option.
JGS1 quartz material specified for UV/Vis use from 200 to 2500 nm.
Black-wall micro-cuvette body style on this exact SKU.
MQ priced sale unit is 1 cuvette, with a closure included.

Using this cell

Fill the cell so the illuminated sample region is fully covered during measurement. The 1.05 mL figure is a nominal capacity for the cell, not a minimum working volume, so the actual fill level still depends on your instrument beam position and on maintaining stable, bubble-free coverage in the optical path.

For routine UV/Vis work, keep the same orientation for blank and sample measurements and keep the optical faces clean and dry on the outside. If you measure with the closure in place, check that it does not interfere with your holder or instrument lid clearance.

First-use check

Inspect the optical faces for dust, residue or marks before first use.
Test the empty uncapped cell in your holder and confirm stable seating.
Run a blank and confirm that your normal fill level covers the beam without bubbles.
If you will use the closure during handling or measurement, check installed clearance in your setup.

Fit and optical alignment

The outer dimensions apply to the uncapped cell body: 12.5 × 12.5 × 45 mm. These dimensions help you check basic holder fit and surrounding clearance for the body itself.

Z Height is not established for this SKU. If your instrument has a fixed beam height or a tightly defined holder position, check beam alignment against the actual illuminated region before relying on this cell for a beam-height-sensitive setup.

Solvents and cleaning

This cuvette is made in Standard 80 adhesive-bonded quartz construction. For selection purposes, this fabrication is generally suited to room-temperature aqueous samples and buffer-based routine use.

The exact chemical limits for this assembled cell are not established for this SKU, so do not treat it as a general all-solvent option. If your method involves organic solvents, mixed chemistries, long contact times or unusual cleaning agents, check the full wetted assembly before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. After use, rinse promptly and clean the outer optical faces gently with suitable non-abrasive optical tissue.

Included with this option

1 micro cuvette (C102CS84). Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with your instrument or holder information, critical dimensions, application wavelength range, sample chemistry and target quantity. Prototype batches typically involve 2–4 cells; final feasibility, price and production time are confirmed in the project quotation. Discuss your requirements and mention part number C102CS84.
