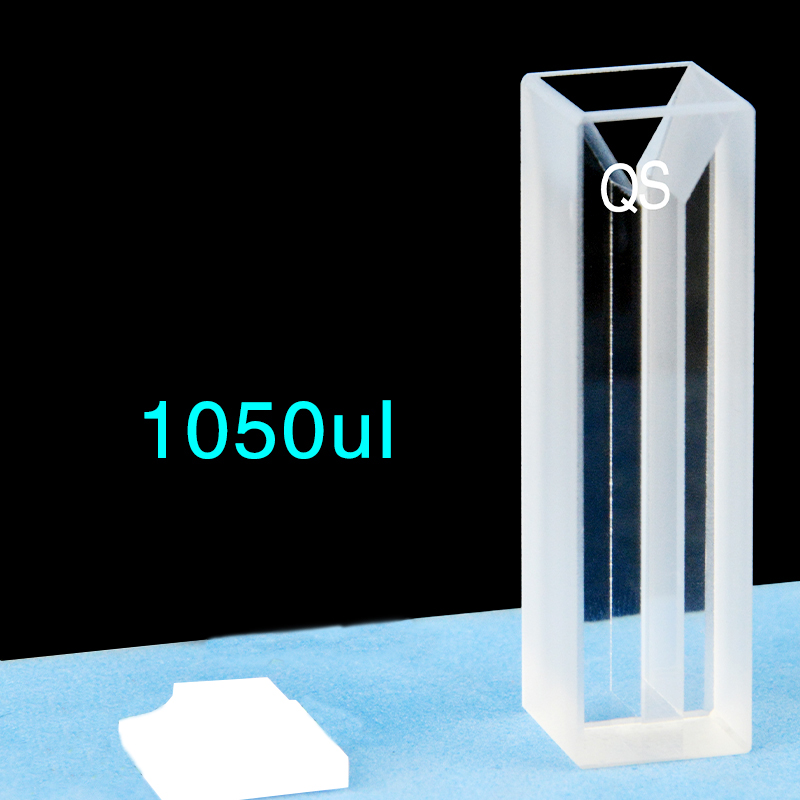

(C102CE16) Quartz Micro Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102CE16

Original price was: $179.00.Current price is: $162.00.

In Stock

C102CE16 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light layout and 1.05 mL nominal capacity. Its 3 mm sample-region width helps define the illuminated section in a compact 12.5 × 12.5 mm body. Sold as 1 cuvette per price unit, with a closure included.

In Stock

SKU: C102CE16 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE16 is a quartz micro cuvette for UV/Vis spectroscopy that combines a 10 mm optical path with a compact 12.5 × 12.5 mm body. Its 1.05 mL nominal capacity and 3 mm sample-region width make it a practical choice when you need a defined measurement zone without moving to a larger standard cell. A closure is included, and the listed sale unit is 1 cuvette per price unit.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	3 mm

Choose this option

Choose C102CE16 when your method uses a standard 10 mm path but your holder or sample format suits a micro cuvette body. The narrow 3 mm sample region helps you plan how the beam passes through the sample area, while the quartz body supports UV/Vis work across the stated 200–2500 nm range. This is a good fit when both optical path and compact external size matter in the same setup.

What makes this option different

10 mm optical path in a micro cuvette format for UV/Vis measurements that use the common 10 mm path length.
1.05 mL nominal capacity for this cell geometry, giving a compact sample chamber without switching to a full-size cuvette body.
3 mm sample-region width for a defined optical section inside the cell.
Two-Way Light quartz construction with a stated wavelength range of 200–2500 nm.
Closure included with the cuvette for the listed option.

Using this cell

Fill the cell so the measurement zone is fully covered during use. The 1.05 mL figure is the nominal cell capacity for this option, not a minimum working volume, so your actual fill level should be checked against your beam position and measurement practice.

For routine measurements, keep the same orientation in the holder for blanks and samples. Before reading, check that the optical faces are clean and that no bubbles, droplets or dried residue sit in the light path.

First-use check

Inspect the cell on arrival, rinse it with a suitable liquid for your method, and confirm that it sits squarely in the holder. Then make a quick trial fill to verify that your normal working level covers the intended light path without trapped air.

Fit and optical alignment

The body dimensions given for this option are 12.5 × 12.5 × 45 mm for the uncapped cell body. Use those dimensions for holder fit and surrounding clearance, especially if your instrument has limited space above the cell or around the cell opening.

Z Height is not listed for this model. If your instrument or holder depends on a specific beam-center height, check that alignment point before ordering rather than relying on body height alone.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. In practice, this type is often selected for methods that may involve organic solvents or temperature-controlled work, but suitability still depends on the complete assembly and the actual liquid, concentration, temperature and contact time in your method.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive laboratory tissue or other suitable lint-free material.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, volume, opening style or another quartz cell layout, we can review a custom version. Send your drawing or labelled sketch, holder details, critical dimensions, application wavelength and sample conditions through our contact page, and refer to C102CE16.
