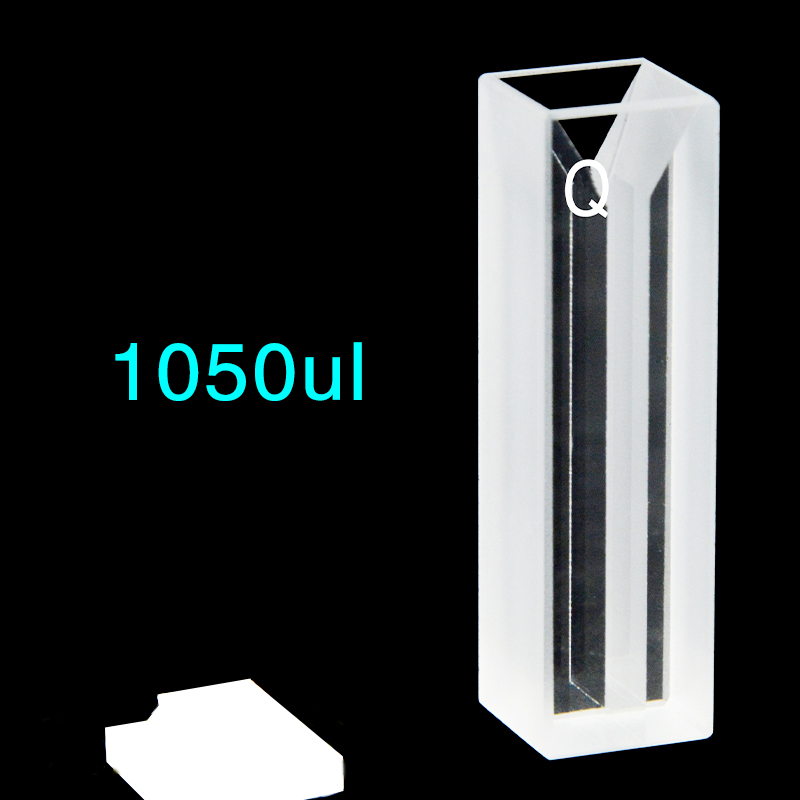

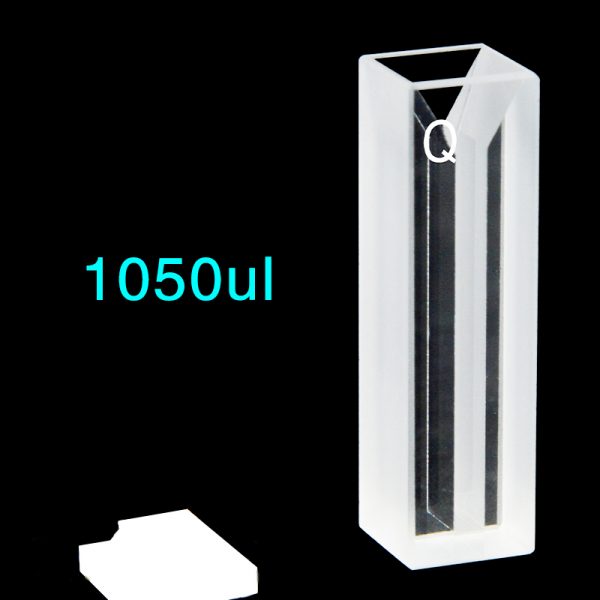

(C102CS38) Quartz Micro Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102CS38

Original price was: $19.00.Current price is: $18.00.

In Stock

C102CS38 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, a 3 mm sample-region channel and 1.05 mL nominal capacity. Its Two-Way Light layout suits transmission measurements through opposing optical faces in a compact body. Sold as 1 cuvette per listed price unit, with a closure included.

In Stock

SKU: C102CS38 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS38 is a quartz micro cuvette for UV/Vis work when you need a standard 10 mm optical path in a compact cell. This version pairs a 1.05 mL nominal capacity with a 3 mm sample-region channel, giving you a defined liquid section without moving to a larger body format. The quartz construction is stated for 200–2500 nm use, and the Two-Way Light layout is arranged for transmission through two opposing optical faces.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	3 mm

Choose this option

Choose C102CS38 when your method uses a 10 mm transmission path but your sample setup is better matched to a 3 mm slit-style region than to a wider chamber. That narrower region can help with controlled beam placement and sample presentation, while the 1.05 mL nominal capacity keeps the cell in a micro cuvette format. This listed version is also a practical choice when your samples and cleaning routine stay within neutral-solution use.

What makes this option different

10 mm optical path: suited to UV/Vis methods built around the standard transmission path length.
3 mm sample-region channel: provides a defined liquid section that should be checked against your beam size and alignment.
1.05 mL nominal capacity: offers a compact micro cuvette format without changing the optical path length.
Two-Way Light layout: intended for transmission measurements through two opposing optical faces.
Standard 80 adhesive-bonded construction: supplied here for neutral sample solutions, so solvent choice and cleaning method matter.

Using this cell

Fill the cell so the illuminated region is fully covered and free from bubbles or streaks across the optical path. When running blanks and samples, keep the same orientation in the holder so the beam passes through the same faces and the same part of the sample region.

The 1.05 mL figure is the nominal capacity, not a minimum working volume. If you use lower fill levels, check by inspection that the liquid still covers the beam position under your actual measurement conditions.

First-use check

Inspect the optical faces for dust, residue or transit marks before use.
Rinse with a suitable liquid for your method and wipe the outside optical faces gently with a non-abrasive optical tissue or laboratory wipe.
Run a blank first and confirm that the beam passes cleanly through the filled sample region without clipping or trapped bubbles.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 45 mm. Use those dimensions to check holder seating and compartment clearance, and allow extra room above the body for the supplied closure because the confirmed dimensions apply to the uncapped cell.

Z Height is not established for this option. If your instrument depends on a fixed beam-center height, confirm alignment with the usable optical region before ordering rather than relying on outer body size alone.

Solvents and cleaning

This option uses Standard 80 adhesive-bonded construction. For this exact SKU, the supplier restricts use to neutral sample solutions. Specific compatible solvents, concentrations, temperatures and exposure durations are not supplied.

Avoid organic sample solvents and organic cleaning agents with this version. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning.

Included with this option

1 cuvette per listed price unit. A closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C102CS38 if you need a different geometry, optical arrangement, closure or tolerance target.
