(C102SR23) Quartz Micro Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102SR23

Original price was: $167.00.Current price is: $151.00.

In Stock

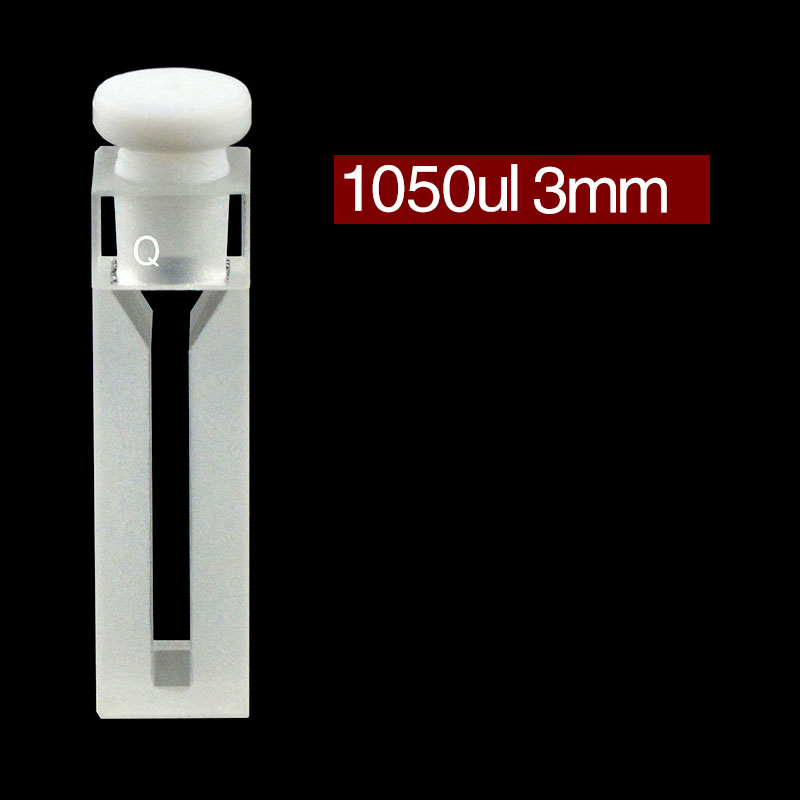

C102SR23 is a JGS1 quartz micro cuvette for UV/Vis work with a 10 mm optical path, Two-Way Light geometry and a 3 mm sample-region slit. Its 1.05 mL nominal capacity gives you a compact closed-cell format with a supplied stopper. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C102SR23 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SR23 is a JGS1 quartz micro cuvette for UV/Vis measurements that use a standard 10 mm optical path in a smaller-volume cell. This version combines a 3 mm sample region with a 1.05 mL nominal capacity and a supplied stopper, so it suits methods that need a closed micro cuvette while keeping the illuminated sample width clearly defined.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Sample Volume (Nominal)	1.05 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	3 mm

Choose this option

Choose C102SR23 when your method is built around a 10 mm path length but you want a micro cuvette rather than a full-size cell. The 3 mm sample-region slit is useful when your beam and method are set up around a narrower illuminated section, and the stopper helps with routine closed-cell handling after filling.

What makes this option different

10 mm optical path for standard UV/Vis absorbance methods.
3 mm sample-region slit for a defined illuminated sample width.
1.05 mL nominal capacity in a micro cuvette format.
Stopper included for closed handling during routine use.

Using this cell

Fill the cuvette so the liquid fully covers the beam path, with no bubbles or dry areas across the optical faces. For best consistency, use the same orientation for blank and sample and seat the cuvette the same way each time.

The nominal capacity helps you plan sample preparation, but it is not a minimum working volume. If your instrument uses a fixed beam height or a small beam footprint, make sure the filled liquid level covers the actual measuring region during use.

First-use check

Before first use, inspect the optical faces and opening for chips, residue or fingerprints. Rinse with a method-compatible liquid, dry the outside gently, then run a blank to confirm stable seating and a clear beam path.

Fit and optical alignment

This is a Two-Way Light cell, so measurement is taken through the two optical faces along the 10 mm path. The stated 3 mm slit refers to the sample-region width, which is the key dimension to check when you want the beam to stay within a narrower illuminated area.

Z Height is not specified for this item. If your holder has a fixed optical center or limited vertical clearance, check the holder fit before ordering, or send the holder model or drawing for review.

Solvents and cleaning

This quartz cuvette is intended for UV/Vis use, but the exact chemical compatibility limits for this SKU are not established here. If your method uses aggressive solvents or a demanding cleaning routine, check suitability before making it part of routine work.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the exterior optical faces with non-abrasive optical tissue. For background on MQ fabrication options, see Compare fabrication options.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions related to optical path length, sample volume, optical windows, Z Height, closures and other fit details. Send a dimensioned drawing or labelled sketch, your holder or instrument information, the sample conditions and the required quantity. Discuss your requirements and quote part number C102SR23.
