(C104SR9) Quartz Micro Cuvette, 10 mm / 1 mm (dual path) Path, 350 µL

Weight	30 g

SKU: C104SR9

Original price was: $293.00.Current price is: $264.00.

In Stock

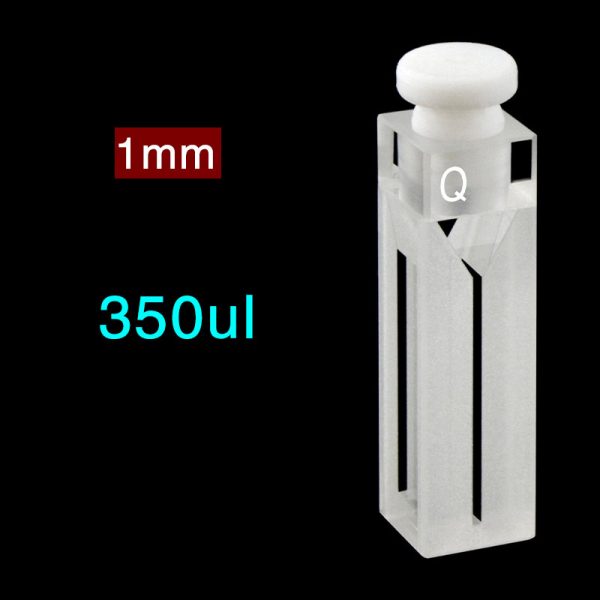

C104SR9 is a JGS1 quartz micro cuvette with Four-Way Light access, a 10 mm / 1 mm dual-path layout and 350 µL nominal capacity. Its compact 12.5 × 12.5 × 45 mm uncapped body includes a closure. Sold as 1 cuvette.

In Stock

SKU: C104SR9 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR9 is a compact quartz micro cuvette for methods that need two stated path directions in one small cell body. It combines a 10 mm primary path with a 1 mm secondary path, Four-Way Light access and a 350 µL nominal capacity, which makes it useful when sample size is limited but you still want more than one optical path available. This sale unit is 1 cuvette with closure included.

Path Length: 10 mm / 1 mm (dual path)
Sample Volume (Nominal): 350 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 1 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	1 mm

Choose this option

Choose C104SR9 when your method benefits from both a standard 10 mm path and a shorter 1 mm path in the same micro cuvette. Its Four-Way Light layout supports side access from all four faces with suitable beam geometry, and the 350 µL nominal capacity fits small-volume work without moving to a larger square cell.

What makes this option different

10 mm and 1 mm stated optical paths in one compact cuvette.
Four-Way Light configuration for multi-side optical access.
350 µL nominal capacity in a 12.5 × 12.5 × 45 mm uncapped format.
Fused integrated construction with closure included.

Using this cell

Fill the cuvette so the illuminated sample region is fully covered, and keep bubbles, droplets and residue out of the beam area. Use the same orientation for blank and sample if your method depends on a specific path direction.

The closure is useful for covered handling between filling and measurement. It should not be treated as a pressure or leak-tight transport rating, and the stated 350 µL is a nominal capacity rather than a minimum working fill.

First-use check

Before first use, inspect the optical faces and closure contact area, rinse with a method-compatible liquid, and run a blank in the orientation you plan to use. Confirm that the sample level covers the illuminated region in your instrument before routine measurements.

Fit and optical alignment

The uncapped external dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. This is helpful for holder seating and top-clearance planning in compact setups.

Z Height is not specified for this cuvette, so a fixed-beam instrument should not be matched from outside dimensions alone. The stated 1 mm figure refers to the secondary optical path and the sample-region channel width, not to beam height.

Solvents and cleaning

This cuvette uses fused integrated construction. A released MQ fabrication grade is not established for this listing, so cleaning and sample suitability should be judged for the complete assembly, including the closure and your actual exposure conditions. For general construction background, see the MQ fabrication guide.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. If your method involves aggressive chemicals, long exposure times or elevated temperature, check suitability before routine use.

Included with this option

This sale option includes 1 quartz micro cuvette with closure.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes to path length, sample volume, outside dimensions, optical access or closure details. Send a drawing or labelled sketch, your holder or instrument information, critical dimensions and sample conditions via this contact page, and quote part number C104SR9.
