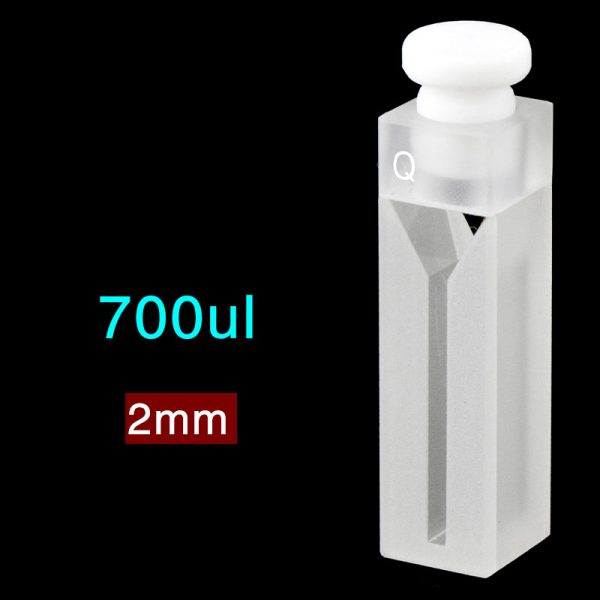

(C102CR26) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C102CR26

Original price was: $143.00.Current price is: $129.00.

In Stock

C102CR26 is a JGS1 quartz micro cuvette with a 10 mm optical path, 700 µL nominal capacity and a 2 mm sample region in a Two-Way Light layout. Its fused integrated construction and stated 200–2500 nm wavelength range suit compact covered UV/Vis measurements. Supplied as 1 cuvette per price unit.

In Stock

SKU: C102CR26 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CR26 is a JGS1 quartz micro cuvette for UV/Vis measurements that need a standard 10 mm optical path in a smaller covered cell. This version combines a 700 µL nominal capacity, a 2 mm sample region and fused integrated construction, with a stated wavelength range of 200–2500 nm. The closure is included, and the listed price is for 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	2 mm

Choose this option

Choose C102CR26 when you want a compact micro cuvette while keeping a 10 mm transmission path and JGS1 quartz across the stated 200–2500 nm range. The 2 mm sample region is useful when your beam footprint and filling practice are already set up for a narrow measurement zone, and the covered top helps with routine handling of small sample volumes. This fused integrated version is the key distinction of this option.

What makes this option different

JGS1 quartz with a stated 200–2500 nm wavelength range.
Fused integrated construction for this exact version.
10 mm optical path with 700 µL nominal capacity in a Micro Cuvette format.
2 mm sample region to check against beam footprint and fill practice.
Closure included for a covered sample chamber.

Using this cell

Fill the cuvette so the beam passes fully through the liquid in the intended sample region, and remove bubbles before measurement. The nominal 700 µL capacity does not define a minimum working volume, so your actual fill level should be checked against your beam position and the area you need to cover.

Keep the same orientation for blank and sample measurements, and insert the closure gently after filling. In a narrow sample region, residue, droplets or inconsistent seating can affect readings more easily, so consistent handling matters.

First-use check

Inspect the optical faces and top opening area under good light before first use.
Test-fit the uncapped body in your holder and confirm stable seating.
Run a blank in the intended orientation and check that the liquid covers the beam path without bubbles.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 45 mm. Use that body size for holder checks, then leave additional space above the cell for the supplied closure in your instrument compartment or external fixture.

This is a Two-Way Light micro cuvette with transmission through two opposite optical faces. Z Height is not stated here, so if your instrument has a fixed beam center or limited vertical adjustment, confirm the beam location against the actual sample region before ordering.

Solvents and cleaning

This cuvette is supplied in JGS1 quartz with fused integrated construction. The exact chemical limits for the complete assembled cell are not specified here, so if your work involves aggressive solvents, elevated temperature, long contact times or non-routine cleaning, check compatibility before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue or another non-scratching laboratory material. For general background on construction options, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

Supplied as 1 micro cuvette. A closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different body size, path length, sample volume, opening arrangement or holder-related geometry, send a drawing or labelled sketch and reference C102CR26. Instrument or fixture details are especially useful when beam position or top clearance is important. https://machinedquartz.com/contact/
