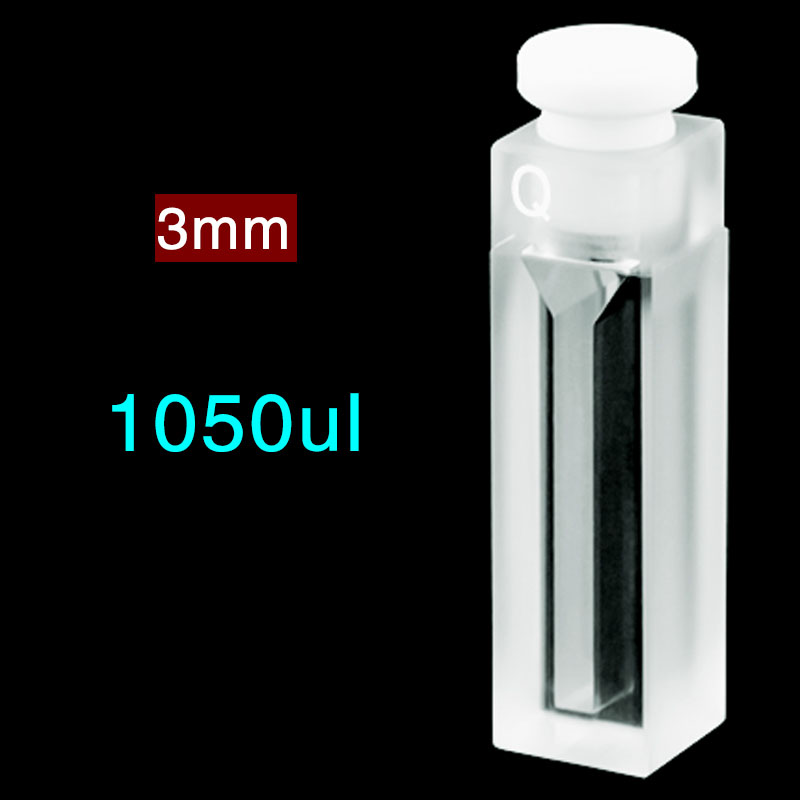

(C102SS10) Quartz Micro Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102SS10

Original price was: $72.00.Current price is: $65.00.

In Stock

C102SS10 is a quartz micro cuvette with a 10 mm optical path, Two-Way Light geometry and 1.05 mL nominal capacity. Its 3 mm stated sample region and stopper-equipped closed-top format suit routine transmission work in a compact cell body. Supplied as 1 cuvette with stopper.

In Stock

SKU: C102SS10 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SS10 is a quartz micro cuvette with a 10 mm optical path, Two-Way Light geometry and 1.05 mL nominal capacity. It is a compact closed-top cell for transmission measurements, combining a stated 3 mm sample region with a supplied stopper in a 12.5 × 12.5 mm body footprint. This sale option is supplied as 1 cuvette with stopper.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	3 mm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Stopper
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	3 mm

Choose this option

Choose C102SS10 when you need a 10 mm path in a smaller cuvette body and you want the sample covered between filling and reading. The compact uncapped geometry suits holders with limited space, while the stopper-equipped format is convenient for routine bench use where you want a simple closed-top micro cell for transmission measurements.

What makes this option different

10 mm optical path with Two-Way Light transmission geometry.
1.05 mL nominal capacity with a stated 3 mm sample region.
Uncapped cell size of 12.5 × 12.5 × 45 mm for holder planning.
Stopper included; sold here as 1 cuvette.

Using this cell

Fill the cell so the illuminated region is fully covered during measurement. The stated 1.05 mL is the nominal capacity, not a minimum working volume, so your practical fill level should be set by the beam position used in your instrument.

Insert the stopper gently after filling and keep the same orientation for blank and sample measurements. Before reading, check that no bubbles, droplets or dried residue sit across the optical faces.

First-use check

Inspect the optical faces for dust, fingerprints or shipping residue before first use.
Seat the empty cuvette in the holder and confirm that there is enough top clearance for the stopper.
Run a blank in the intended measurement orientation before loading sample.

Fit and optical alignment

The confirmed uncapped cell size is 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. Use that geometry to check holder seating and side clearance, and allow additional space above the rim for the supplied stopper because the cap-inclusive height is not specified here.

The stated 3 mm sample region is part of the selection geometry and should be matched to your beam footprint, especially in instruments with a narrow or fixed beam position. Z Height is not specified for this SKU, so setups with a strict beam-centre requirement should be checked before ordering.

Solvents and cleaning

This cuvette uses Standard 80 construction and is described by the supplier as adhesive-bonded. This construction is typically chosen for routine water-based samples and buffers at room temperature. Avoid organic sample solvents and organic cleaning agents with this type of assembled cell; if your method depends on organic solvents, please discuss a different construction approach.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 quartz micro cuvette with stopper.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch, together with holder information, critical dimensions, sample conditions and quantity. Prototype batches typically involve 2–4 cells; final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C102SS10.
