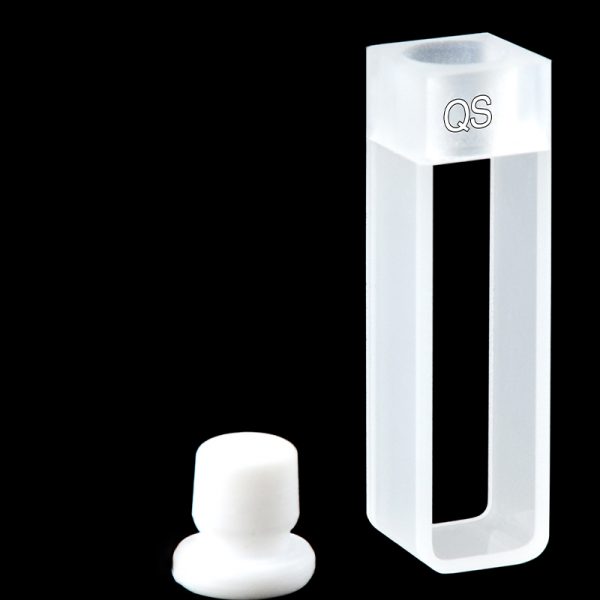

(C102SR27) Quartz Stoppered Cuvette, 10 mm Path

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C102SR27

Original price was: $76.00.Current price is: $69.00.

In Stock

C102SR27 is a JGS1 quartz stoppered cuvette for UV/Vis work with a 10 mm optical path and Two-Way Light configuration. A PTFE stopper is included, and this sales option is supplied as 1 cuvette. It suits buyers who need a covered single-cell replacement rather than a two-pack.

In Stock

SKU: C102SR27 Categories: Cuvettes, Products, Quartz Stoppered Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SR27 is a JGS1 quartz stoppered cuvette for UV/Vis measurements that use a 10 mm optical path. This option combines a covered sample format with a Two-Way Light layout, making it a straightforward choice when you need transmission through one opposing optical pair rather than four-side access. It is sold as 1 cuvette with a PTFE stopper included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose C102SR27 when your method calls for a 10 mm quartz cuvette and you want a single covered cell for routine UV/Vis handling. The JGS1 quartz body supports UV/Vis use, while the included PTFE stopper lets you fill the cell and keep the sample covered during transfer and measurement without moving to a larger purchase pack.

What makes this option different

JGS1 quartz body for UV/Vis spectroscopy.
10 mm optical path for methods specified around the common 1 cm path length.
Two-Way Light configuration for measurements taken through one opposing optical pair.
PTFE stopper included so the cell is supplied with its closure.
Single-cuvette sales unit for one-at-a-time purchasing or replacement needs.

Using this cell

Fill the cell so the liquid covers the beam region used by your instrument, then seat the PTFE stopper before measurement. Keep the same orientation for blank and sample when your method depends on orientation, and remove visible bubbles from the optical path before placing the cell in the holder.

Handle the cuvette by the non-optical sides to reduce fingerprints on the light path faces. A covered top helps with routine filled handling, but this assembly is not described here as pressure-rated or leak-tested.

First-use check

Inspect the cuvette and stopper for visible dust, residue or chips.
Rinse with a solvent suitable for your method and cleaning routine.
Run a blank in the same orientation planned for the sample.
Confirm that the filled liquid level covers the intended beam area.

Fit and optical alignment

This is a stoppered Two-Way Light cuvette, so fit depends on both the 10 mm path requirement and the physical clearance available in your holder. If your setup has tight height limits above the cell, check that the stoppered format suits the available space.

Z Height is not listed for this SKU. If your instrument uses a fixed beam center or a holder with strict beam-height requirements, please check that point before ordering. Two-Way Light indicates the optical access category only; it does not by itself confirm compatibility with a particular instrument.

Solvents and cleaning

Quartz is widely used in UV/Vis work, but the chemical limits of this exact assembled stoppered option are not established here. If your samples or cleaning steps involve aggressive chemicals, prolonged contact or demanding organic cleaning conditions, check suitability for the complete cell-and-stopper arrangement before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the optical faces gently with non-abrasive optical tissue. For background on construction approaches, see MQ Cuvette Fabrication Glossary.

Included with this option

Supplied as 1 quartz stoppered cuvette with a PTFE stopper included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes to dimensions, optical path length, closures, windows, Z Height and other fit-related details. Send your drawing or labelled sketch, instrument or holder information, sample conditions and target quantity via our contact page, and mention part number C102SR27.
