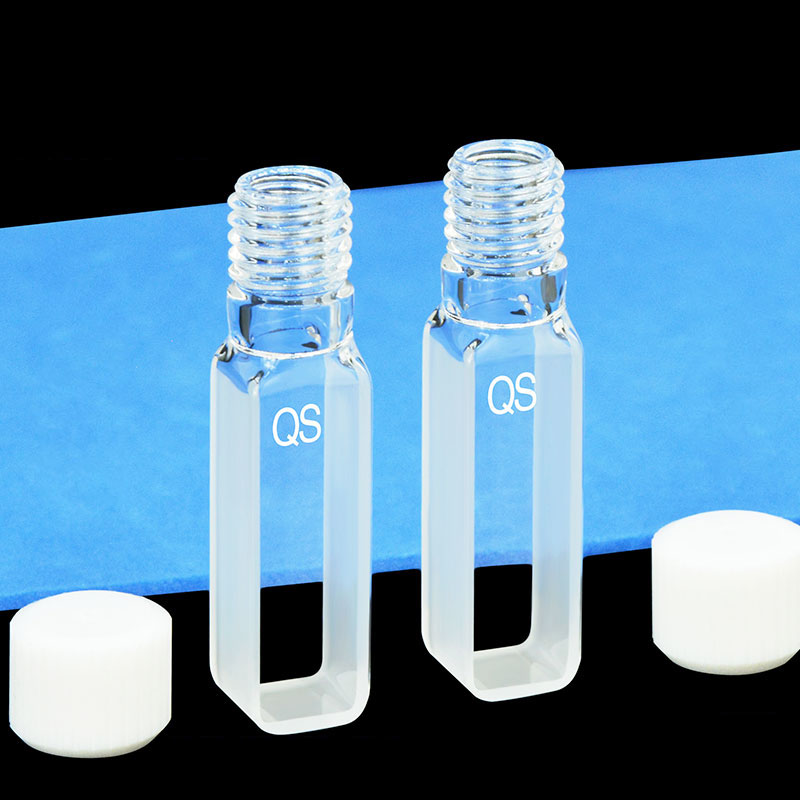

(C102TF1) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g
Dimensions	1.25 × 1.25 × 5.4 mm

SKU: C102TF1

Original price was: $371.00.Current price is: $334.00.

In Stock

C102TF1 is a quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. Its square body and included closures suit routine transmission measurements in a capped cell format. Supplied as a pack of 2 cuvettes.

In Stock

SKU: C102TF1 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102TF1 is a quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. It combines a square-body transmission cell format with supplied closures, making it useful when you want a capped quartz cell for routine measurements. This MQ offer is supplied as a pack of 2 cuvettes.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Overall Height without Closure	54 mm
Body Height	35 mm
Overall Height with Closure	58 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C102TF1 when you need a 10 mm UV/Vis screw-top cell and want a two-cuvette sales pack rather than a single-piece offer. The 3.5 mL nominal capacity suits routine liquid samples, and the capped format gives you covered top access during filling, transfer and measurement preparation. Its square base also fits the familiar style used for many cuvette holders, while the total height still needs to be checked where top clearance is limited.

What makes this option different

10 mm optical path suits standard transmission measurements in a screw-top quartz cell.
Two-Way Light layout provides measurement through two opposing optical faces.
3.5 mL nominal capacity supports routine liquid handling in this cell size.
Pack of 2 cuvettes preserves the current MQ priced sale quantity for this SKU.
Closures included for capped use of each supplied cell.

Using this cell

Fill the cuvette so the sample fully covers the illuminated region used in your instrument. Keep the same orientation for blank and sample measurements, remove visible bubbles before reading, and keep the optical faces free of fingerprints, dried residue and exterior droplets.

The screw cap is useful when you want to cover the sample between preparation and measurement. Seat the cap gently and keep the contact surfaces clean. This page does not establish a pressure rating or a leak-tight transport specification.

First-use check

Inspect the optical faces, threaded opening and closure seating surfaces for chips, dust or visible residue.
Rinse with a cleaning liquid suitable for your sample and the full cell assembly.
Test fit the cuvette in your holder and confirm top clearance for cap handling.
Run a blank at your working wavelength before measuring samples.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 35 mm, with an overall height of 54 mm without the closure and 58 mm with the closure fitted. These are the practical points to check when your holder has limited vertical clearance or when the instrument lid closes closely above the cuvette position.

Z Height is not listed for this item, so beam-center compatibility with holders or instruments that require a defined beam height should be checked before ordering. The 3.5 mL figure is a nominal cell capacity, not a minimum working volume.

Solvents and cleaning

Molded 0.01 is the option to consider when your method calls for closely specified optical-path precision. For the 10 mm path on this cell, agree the required tolerance and measurement conditions for the order.

Quartz is used for the cell body, but chemical limits for this exact assembled SKU are not listed here, so sample and cleaning compatibility should be checked for the complete cell and closure together when your method uses aggressive chemicals or specialist cleaning routines.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 2 cuvettes. Closures are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C102TF1.
