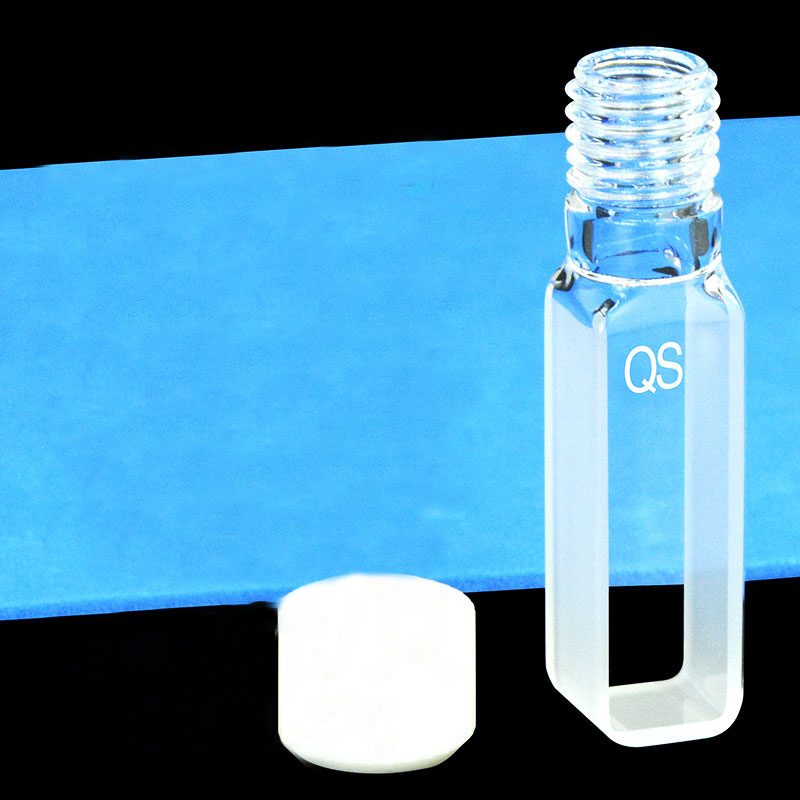

(C102TF) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 5.4 mm

SKU: C102TF

Original price was: $186.00.Current price is: $168.00.

In Stock

C102TF is a JGS1 quartz screw-top cuvette with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. Its square 12.5 × 12.5 mm body and included closure suit routine transmission measurements that need a capped quartz cell in a familiar format. Sold as 1 cuvette.

In Stock

SKU: C102TF Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102TF is a JGS1 quartz screw-top cuvette with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. It combines a familiar square-body format with a supplied closure, making it a practical choice when you want a capped quartz cell for routine transmission measurements. This MQ offer is sold as 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 54 mm
Body Height	35 mm
Overall Height with Closure	58 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes
Fabrication Method	Molded 0.01

Choose this option

Choose C102TF when your method calls for a 10 mm transmission cell and you want a screw-top format instead of an open cuvette. The 12.5 × 12.5 mm base follows a widely used square-body style, while the 3.5 mL nominal capacity gives you a straightforward larger-volume sample chamber for routine liquid handling. The included closure is useful when you want the cell supplied ready for capped use rather than as a body only.

What makes this option different

10 mm optical path suits established transmission methods built around this path length.
Two-Way Light layout keeps the optical geometry to two opposing measurement faces.
3.5 mL nominal capacity provides a larger routine sample chamber than micro-volume cells.
Closure included so this option is supplied as a capped cell format.

Using this cell

Fill the cuvette so the sample fully covers the illuminated region, then keep the same orientation for blank and sample runs. Remove visible bubbles before measurement, and handle the cell by non-optical surfaces to keep the windows clean.

The screw-top format is convenient for sample preparation, capping and transfer between steps. It should be used as a closure for routine handling, not as a pressure-rated connection or closed-loop flow component.

First-use check

Inspect the optical faces, opening and closure seating area for chips, dust or residue.
Run a suitable blank to verify holder fit and beam alignment before measuring samples.
After filling and capping, confirm that the light path is free of bubbles and exterior residue.

Fit and optical alignment

The external body dimensions are 12.5 × 12.5 × 54 mm, with a 35 mm body height and 58 mm overall height with the cap fitted. When checking holder fit, allow for both the square body section and the extra height above it for cap access.

Z Height is not listed for this SKU, so beam-center compatibility should be checked against your holder or instrument requirement rather than inferred from the outer height. The 3.5 mL figure is a nominal capacity, not a minimum working volume.

Solvents and cleaning

For a method with a defined optical path tolerance, specify that tolerance and its measurement conditions when selecting the Molded 0.01 option. The final requirement is agreed for the order.

This cuvette uses Molded 0.01 fabrication and a quartz body. Molded 0.01 is selected for quartz cells used in projects with tighter path-length requirements, but sample and cleaning conditions should still be considered for the complete cuvette and closure assembly.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Wipe the optical faces gently with non-abrasive optical tissue. If your work involves aggressive chemicals, elevated temperature or long contact time, check compatibility for the assembled cell before use.

Included with this option

1 quartz screw-top cuvette with closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, path length, sample volume, optical windows, Z Height, closures and fabrication requirements. Send a drawing or labelled sketch, together with your instrument or holder details, critical dimensions, sample conditions and quantity, through our contact page and reference C102TF.
