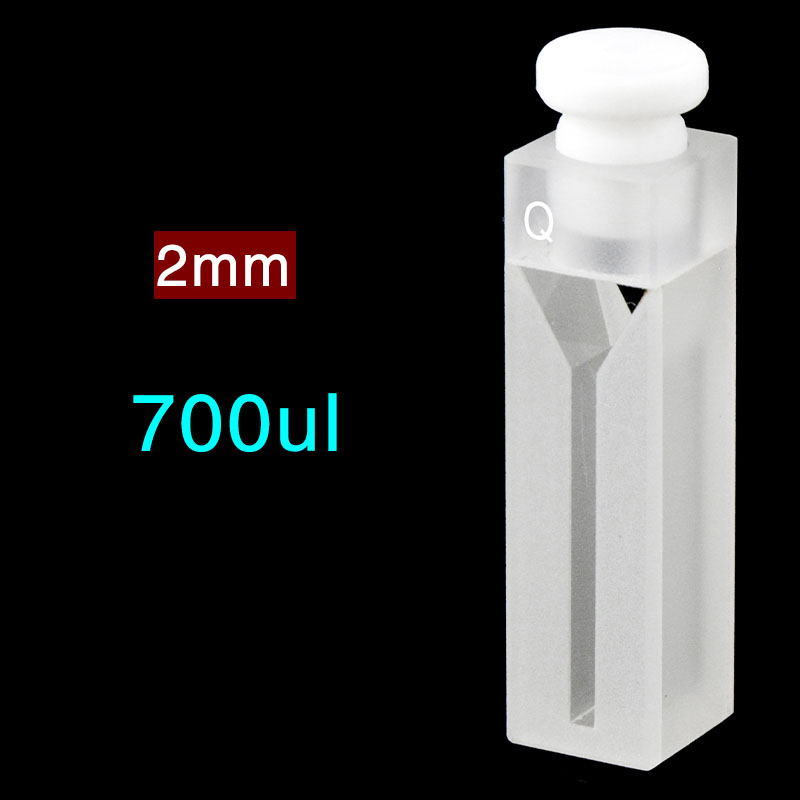

(C102SR4) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C102SR4

Original price was: $143.00.Current price is: $129.00.

In Stock

C102SR4 is a JGS1 quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path and 700 µL nominal capacity. Its Two-Way Light layout and 2 mm stated sample-region width suit methods that read through a narrow filled region in a compact 12.5 × 12.5 mm body. Supplied as 1 cuvette per listed price unit, with a closure included.

In Stock

SKU: C102SR4 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SR4 is a JGS1 quartz micro cuvette for UV/Vis measurements that use a 10 mm transmission path but do not need a larger nominal fill volume. This option combines a 700 µL nominal capacity with a 2 mm stated sample-region width in a compact 12.5 × 12.5 mm body, helping you work with a small filled region while keeping a familiar cuvette footprint. The stated wavelength range is 200–2500 nm.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Detection Channel Width	2 mm

Choose this option

Choose C102SR4 when your method is built around a 10 mm optical path and you want a micro cuvette with a modest nominal capacity rather than a fuller standard-size sample chamber. The narrow 2 mm stated sample region makes this option relevant when beam placement and liquid coverage need to stay controlled within a compact measurement area.

What makes this option different

10 mm optical path for transmission methods set up around this common path length.
700 µL nominal capacity for a small-volume micro cuvette format.
Two-Way Light geometry for a straight transmission measurement path through opposite optical faces.
2 mm stated sample-region width, useful when the illuminated region needs to stay within a narrow filled section.
JGS1 quartz with a stated 200–2500 nm wavelength range for UV/Vis work.
Supplier-stated fused integrated construction term for this exact version.
Closure included with the listed single-cuvette price unit.

Using this cell

Fill the cell so the beam passes fully through covered liquid, and keep bubbles or suspended droplets out of the optical path. With a narrow stated sample region, it is worth loading carefully and using a consistent orientation for blank and sample runs.

The 700 µL figure is a nominal capacity, not a minimum working volume. If you expect to work near the lowest practical fill in your own method, check liquid coverage in the beam area before routine measurements. After filling, place the closure gently over the opening for covered handling between preparation and measurement.

First-use check

Inspect the optical faces and sample chamber for dust, residue or chips.
Place the empty cell in your holder and confirm that it seats squarely.
Run a blank first to make sure the beam passes through the intended filled region without clipping.
After filling, verify that your normal loading and covered handling do not shift the liquid away from the measurement area.

Fit and optical alignment

The stated external dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. Use these dimensions to check holder fit and body clearance around the cuvette.

Z Height is not specified for this SKU, and the available information does not define whether the 45 mm value is body-only or includes the closure. Because the stated sample-region width is 2 mm, beam height and beam footprint should be checked in instruments with fixed optical geometry.

Solvents and cleaning

This cuvette is made from quartz. The source for this exact SKU states a fused integrated construction term, which describes the supplier’s construction wording for this version rather than a settled MQ fabrication category. For a general overview of cuvette construction approaches across the range, see Compare fabrication options.

Detailed chemical compatibility limits are not established here for this exact SKU. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, rinse promptly after use, and wipe the exterior optical faces with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a dimensioned drawing or labelled sketch, plus your holder or instrument details, application wavelength, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; final feasibility, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C102SR4.
