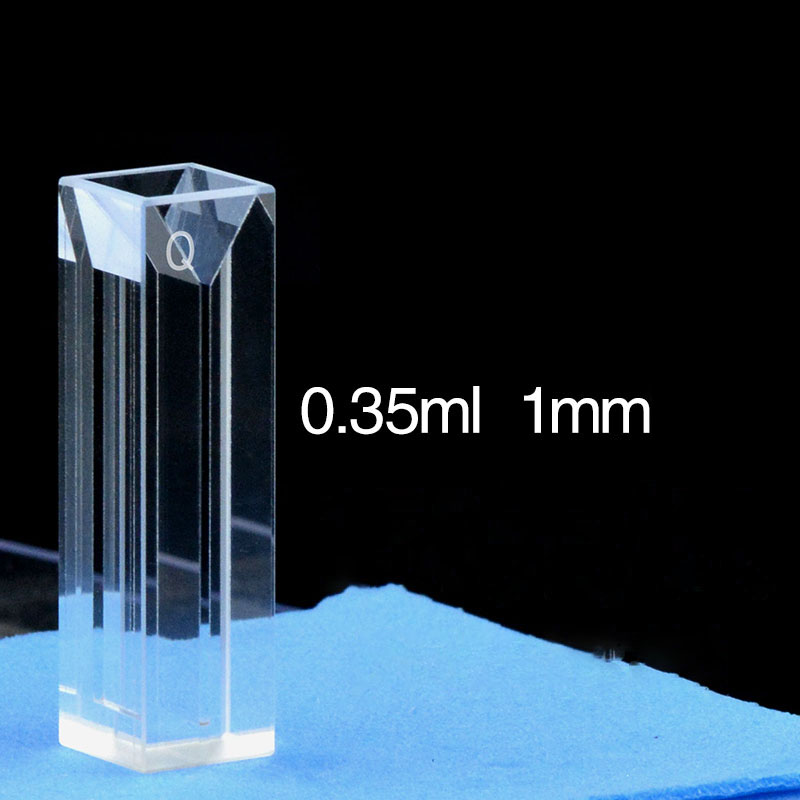

(C104WS4) Quartz Micro Cuvette, 10 mm Path, 350 µL

Weight	30 g

SKU: C104WS4

Original price was: $72.00.Current price is: $65.00.

In Stock

C104WS4 is a quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light layout, 1 mm sample-region width and 350 µL nominal capacity. Its compact uncapped body and included closure suit small-volume fluorescence work where the actual illuminated region matters as much as the nominal volume. The listed price is for 1 cuvette, with closure included.

In Stock

SKU: C104WS4 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104WS4 is a quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light layout, 1 mm sample-region width and 350 µL nominal capacity. This format suits small-volume fluorescence work that still uses a standard path length, while the narrow stated sample region gives you a more specific geometry to check than capacity alone. This listing is for 1 cuvette, and the closure is included.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	1 mm

Choose this option

Choose C104WS4 when your method needs a 10 mm path in a compact micro cell and you want four-side optical access for fluorescence geometry. The 1 mm sample-region width is a key selection point if your beam is narrow or your method depends on a defined illuminated region. Its 350 µL nominal capacity places it in a small-volume range without moving to larger millilitre-scale cells.

What makes this option different

Four-Way Light layout: optical access on four faces supports fluorescence measurement geometry.
1 mm sample-region width: useful when the beam footprint and actual illuminated region need close attention.
350 µL nominal capacity: a compact sample volume for micro-cuvette work.
Uncapped body size 12.5 × 12.5 × 45 mm: a defined body format to check against holder clearance.

Using this cell

Fill the cell so the measurement region is fully covered, then fit the closure carefully and keep the same orientation for blank and sample. In a narrow sample region, bubbles and droplets can affect the reading quickly, so inspect the filled zone before measurement.

Handle the optical faces with care and keep them clean and dry. The nominal 350 µL capacity is not a stated minimum working volume, so your practical fill level should be set by complete beam coverage in your own setup.

First-use check

Inspect the optical faces and closure seating area for dust, chips or residue.
Check holder seating and run a blank in the intended orientation.
Confirm that the beam passes through a fully covered, bubble-free sample region.

Fit and optical alignment

The uncapped cell body is 12.5 × 12.5 × 45 mm. Allow extra clearance for the closure in your holder or compartment, because the stated body dimensions do not define the installed height with closure.

Match both the 10 mm path and the 1 mm sample-region width to your instrument beam geometry. Z Height is not stated for this option, so if your instrument requires a defined beam-center height, confirm that separately before ordering.

Solvents and cleaning

Use this option with neutral sample solutions only.

This Standard 80 adhesive-bonded quartz cell is intended for routine room-temperature aqueous samples and buffers. Avoid organic samples and organic cleaning solvents.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this listed specification directly, or ask about current availability and dispatch. If your delivery date is important, ask before checkout; preparation or production time is separate from transit and customs clearance.

Discuss a custom version

For a different design, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are assessed separately from this listed specification. Feasibility, quantity, price and timing are confirmed in the project quotation.
