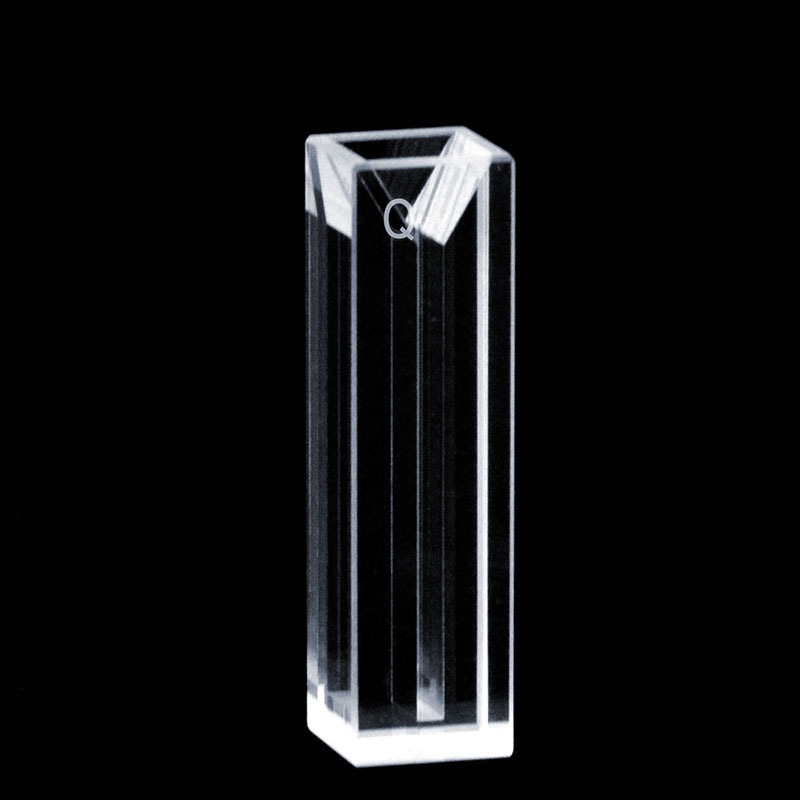

(C104CE23) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C104CE23

Original price was: $323.00.Current price is: $291.00.

In Stock

C104CE23 is a quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and a 2 mm sample channel. Its 700 µL nominal capacity gives a compact sample region that suits fluorescence work where side optical access and beam placement matter. The listed price is for 1 cuvette, with a closure included.

In Stock

SKU: C104CE23 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE23 is a quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and a 700 µL nominal capacity. Its 2 mm sample channel creates a narrow sample region inside a standard 12.5 × 12.5 mm body, which helps when you want the illuminated region to stay within a more tightly defined part of the sample. The listed option includes a closure and is sold as 1 cuvette per price unit.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	2 mm

Choose this option

Choose C104CE23 when your fluorescence setup uses a 10 mm path length but you also want side optical access and a narrower sample region than a broader micro cell provides. The 700 µL nominal capacity sits within that 2 mm channel geometry, so this option is useful when filling and aligning the optical region are both part of the method, not just the total volume.

What makes this option different

Four-Way Light layout gives optical access from four sides, which is useful for fluorescence geometries that need side access in addition to the main transmission path.
10 mm optical path suits methods built around this path length without moving to a larger external body format.
2 mm sample channel defines a narrower sample region, so filling and orientation matter more than in a wider chamber.
700 µL nominal capacity provides the stated cell volume for this exact geometry, but it should not be treated as a minimum working fill.
Quartz body with optical-contact construction uses the source-stated optical-contact joining approach classified here as Molded 83, a construction style often chosen for methods that may involve organic-solvent workflows, subject to the complete wetted assembly and actual exposure conditions.
Compact uncapped body size of 12.5 × 12.5 × 45 mm helps you check holder clearance while keeping the familiar square cuvette footprint.
Closure included gives you the supplied covered configuration for this sale unit, but the fitted overall height is not listed here.

Using this cell

Fill the cell so the optical region is covered during measurement, and check that bubbles do not sit in the 2 mm sample channel. Because the channel is narrow, it is good practice to keep the same orientation for blank and sample measurements.

Fit the supplied closure gently after filling. The 700 µL figure is the nominal capacity of the cell body, not a working-volume instruction, so your practical fill level should be set by the measurement geometry in your instrument.

First-use check

Inspect the optical faces, upper rim and channel opening for chips, residue or handling marks.
Place the empty cell in the holder and confirm that it seats freely without forcing.
Fill with a suitable blank and verify that the intended optical region is fully covered and free of bubbles.
Repeat with the closure fitted and confirm the measurement orientation you plan to use in routine work.

Fit and optical alignment

The published outer dimensions apply to the uncapped cell body: 12.5 × 12.5 × 45 mm. Use those dimensions for holder seating and side clearance checks, especially if your fixture closely surrounds the body.

Allow extra clearance above the cell because this option includes a closure and the assembled height is not listed here. Z Height is also not listed, so if your fluorometer or holder depends on a defined beam-center height, that point should be checked before ordering rather than inferred from the body size alone.

Solvents and cleaning

This cuvette is classified as Molded 83 and the source identifies an optical-contact construction method. In practical selection terms, this construction is commonly chosen for quartz cuvettes used in organic-solvent methods, but suitability still depends on the complete wetted assembly, including the supplied closure, and on the actual solvent, concentration, temperature and contact time in your procedure.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces with non-abrasive laboratory wipes and an appropriate cleaning liquid for your procedure.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different design, discuss your requirements and quote part number C104CE23. Custom quartz projects are reviewed separately from this listed specification, including changes to dimensions, optical path, access geometry or other project-specific details.
