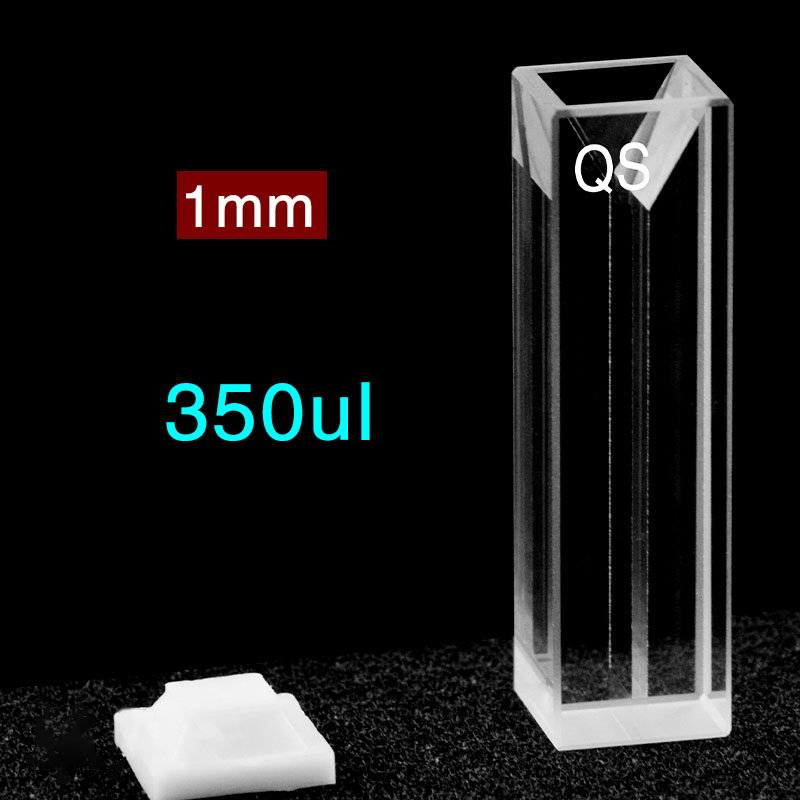

(C104CE13) Quartz Micro Cuvette, 10 mm / 1 mm (dual path) Path, 350 µL

Weight	30 g

SKU: C104CE13

Original price was: $452.00.Current price is: $407.00.

In Stock

JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm / 1 mm dual path, Four-Way Light access and 350 µL nominal capacity. The uncapped body measures 12.5 × 12.5 × 45 mm, and a lid is included. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C104CE13 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE13 is a JGS1 quartz Micro Cuvette for fluorescence measurements, combining a 10 mm main path with a 1 mm secondary path in a compact 12.5 × 12.5 × 45 mm uncapped body. Its Four-Way Light layout gives optical access from all four sides around the sample region, while the 350 µL nominal capacity keeps this option focused on small-volume work. A lid is included, and this listing is for 1 cuvette per listed price unit.

This version uses Molded 83 fabrication. That construction is often chosen when quartz fluorescence cells need broader method flexibility than adhesive-bonded routine cells, but the exact chemical limits for this listing still need to be considered at the full assembly level.

Path Length: 10 mm / 1 mm (dual path)
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 1 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	1 mm

Choose this option

Choose C104CE13 when your method needs a fluorescence micro cuvette with side optical access and a dual-path format in the same cell. The combination of Four-Way Light access, a 10 mm / 1 mm path arrangement and 350 µL nominal capacity is useful when the beam geometry and the sample region both need to be planned carefully rather than treated as a standard single-path absorbance cell.

What makes this option different

10 mm main path with a 1 mm secondary path in one micro cuvette.
Four-Way Light geometry for optical access from four sides.
350 µL nominal capacity with a 1 mm sample-region width.
JGS1 quartz body in a 12.5 × 12.5 × 45 mm uncapped format; lid included; sold as 1 cuvette per listed price unit.

Using this cell

Fill the cell so the intended illuminated region is fully covered during measurement, and keep bubbles, droplets and dried residue away from the optical faces. Use the same orientation for blank and sample runs so the optical access geometry stays consistent.

The stated 350 µL is the nominal cell capacity, not a minimum working volume. In practice, the correct fill depends on your beam height and footprint, especially with a narrow 1 mm sample-region width and a fluorescence setup that depends on accurate positioning.

First-use check

Inspect the optical faces under clean light for residue, chips or handling marks.
Test the empty fit in your holder before preparing samples.
Run a blank and confirm that the filled sample region aligns with the optical path you intend to use.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. They are useful for initial holder and compartment checks, but they do not define total installed height with the lid in place.

For optical setup, consider both the four-side access and the 1 mm sample-region width. Z Height is not established for this SKU, so fit to a specific fluorescence holder, beam-center height or autosampler position should be checked before ordering when alignment is critical.

Solvents and cleaning

This cuvette uses Molded 83 fabrication, which is commonly selected for quartz cells used in broader solvent and temperature-related methods than adhesive-bonded routine constructions. Even so, choose sample and cleaning liquids for the complete assembly, including the lid, rather than assuming a universal chemical range.

Exact chemical limits for this listing are not established here. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 quartz micro cuvette with a lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements.
