(C104CE14) Quartz Micro Cuvette, 10 mm / 1 mm (dual path) Path, 350 µL, Pack of 2

Weight	30 g

SKU: C104CE14

Original price was: $903.00.Current price is: $813.00.

In Stock

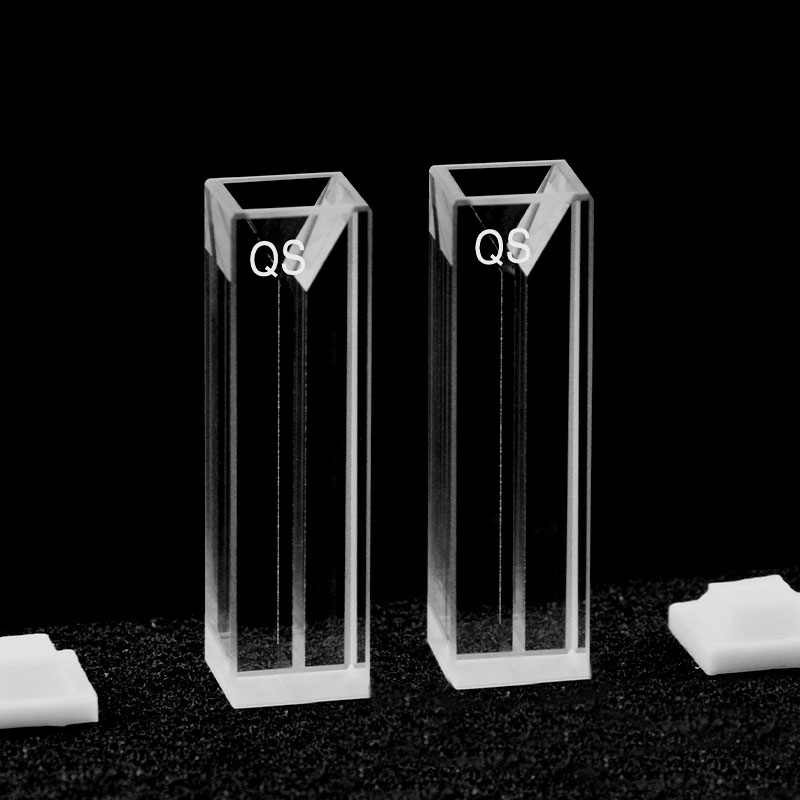

C104CE14 is a JGS1 quartz micro cuvette for fluorescence spectroscopy, combining a 10 mm / 1 mm dual path with Four-Way Light access and a 350 µL nominal capacity. It suits methods that use a narrow sample region rather than a full-width chamber. Sold as a pack of 2 cuvettes, with a lid supplied for this option.

In Stock

SKU: C104CE14 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE14 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, a 1 mm secondary path and Four-Way Light access around the sample region. Its 350 µL nominal capacity fits methods that need a compact micro-cell layout rather than a standard full-width chamber. This option is sold as a pack of 2 cuvettes, and a lid is supplied with the selected pack.

Path Length: 10 mm / 1 mm (dual path)
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 1 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	1 mm

Choose this option

Choose C104CE14 when your method is written around a 10 mm / 1 mm dual-path geometry and benefits from optical access from four sides. The narrow 1 mm sample region helps define a compact measurement zone, while the micro cuvette format keeps the cell in a familiar 12.5 × 12.5 mm body footprint. It is a practical choice when the optical layout matters as much as the nominal volume.

What makes this option different

10 mm primary path with a 1 mm secondary path for methods that specify this dual-path geometry.
Four-Way Light configuration for fluorescence setups that use side optical access around the chamber.
350 µL nominal capacity in a compact micro cuvette format.
Molded 83 construction with JGS1 quartz, supplied as 2 cuvettes per price unit.

Using this cell

Fill the cell so the illuminated region is fully covered, and keep the optical faces free from bubbles, droplets and dried residue. For blank and sample measurements, use the same orientation each time so the beam passes through the same part of the chamber.

The 350 µL figure is a nominal capacity, not a minimum working volume. If your fluorometer uses a low beam height or a tightly defined beam footprint, check your practical fill level in the actual holder before routine use.

First-use check

Before first use, inspect the optical faces for cleanliness and check that the lid sits evenly. Run a blank in the intended orientation and confirm that the beam passes cleanly through the filled sample region without clipping the chamber edges.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use those bare-cell dimensions to check holder fit, compartment clearance and access around the top of the cell.

Z Height is not specified for this option. If your instrument depends on a defined beam-center height, check alignment from your holder geometry rather than assuming fit from the overall body height alone.

Solvents and cleaning

This cuvette is listed as Molded 83. MQ uses this construction as a selection direction for methods that may involve organic solvents or temperature-controlled work, but the exact chemical limits for this assembled option are not specified here.

Choose cleaning and sample-contact conditions for the complete cell and closure arrangement, not for the quartz body alone. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe optical faces gently with non-abrasive optical tissue.

Included with this option

Price is for 2 cuvettes as one sales pack. A lid is supplied with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review changes related to dimensions, optical path length, capacity, optical windows, Z Height, closure details and fabrication requirements. If you need a modified version, send a dimensioned drawing or labelled sketch together with your holder or instrument details and the dimensions that matter most to your setup. Prototype batches typically involve 2–4 cells; feasibility, final specification, price and production time are confirmed for the project. Discuss your requirements and quote part number C104CE14.
