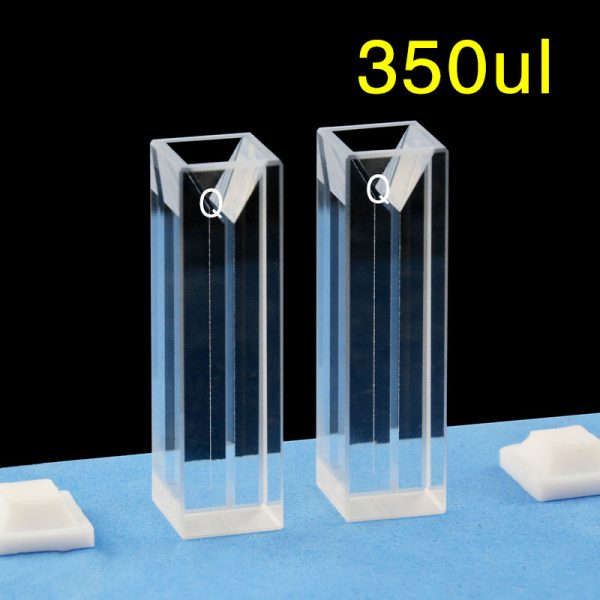

(C104CS25) Quartz Micro Cuvette, 10 mm / 1 mm (dual path) Path, 350 µL, Pack of 2

Weight	30 g

SKU: C104CS25

Original price was: $143.00.Current price is: $129.00.

In Stock

JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, a 1 mm secondary path and Four-Way Light optical access. This adhesive-bonded Standard 80 option has a 350 µL nominal capacity, includes a closure, and is supplied as a pack of 2 cuvettes per price unit.

In Stock

SKU: C104CS25 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS25 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, a 1 mm secondary path and Four-Way Light optical access. Its 350 µL nominal capacity gives you a compact sample chamber, and the listed sale unit is a pack of 2 cuvettes per price unit. A closure is included.

Path Length: 10 mm / 1 mm (dual path)
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 1 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	1 mm

Choose this option

Choose C104CS25 when you need this dual-path fluorescence micro cuvette geometry and want the priced sale unit as a 2-cuvette pack rather than a single piece. The 10 mm and 1 mm paths are combined in one cell format, and the Four-Way Light layout supports fluorescence setups that use side optical access. This is also the adhesive-bonded Standard 80 version, so chemical limits should be part of your selection.

What makes this option different

Dual-path geometry: 10 mm primary path with a 1 mm secondary path in the same cuvette.
Four-Way Light layout: optical access on four sides for fluorescence measurement geometry.
350 µL nominal capacity: compact chamber volume for micro-scale sample preparation.
Pack of 2: this option is sold as 2 cuvettes per price unit.

Using this cell

Fill the cell so the illuminated sample region stays covered throughout the run, and keep the same orientation for blank and sample measurements. Clean optical faces and careful bubble control matter more than the nominal capacity alone when you set your working fill.

A closure is included, but the exact closure type is not established here. Fit it gently after loading and check your own handling conditions if the filled cuvette will be moved, stored or turned.

First-use check

Inspect both cuvettes for residue, chips or visible handling marks.
Test holder fit with the empty body before preparing sample.
Run a blank in the intended orientation.
Confirm that your working fill fully covers the illuminated region.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use them for holder seating and compartment clearance, and allow additional room for any fitted closure because the capped height is not established here.

Z Height is not established for this SKU. If your instrument uses a fixed beam position, check alignment against the actual sample region before routine use. The 350 µL figure is a nominal capacity, not a minimum working volume.

Solvents and cleaning

This adhesive-bonded option uses the Standard 80 fabrication method. For this SKU, the supplier prohibits ethanol soaking or rinsing and excludes acid, alkali and organic-solvent use. It is therefore better suited to room-temperature neutral or water-based sample handling than to aggressive solvent or corrosive cleaning routines.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue or another suitable laboratory wipe.

Included with this option

Supplied as a pack of 2 micro cuvettes. A closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For related custom JGS1 quartz cuvette requirements involving dimensions, path length, sample volume, windows, Z Height, closures or fabrication direction, please send your drawing or labelled sketch together with holder details and sample conditions. Discuss your requirements and quote part number C104CS25.
