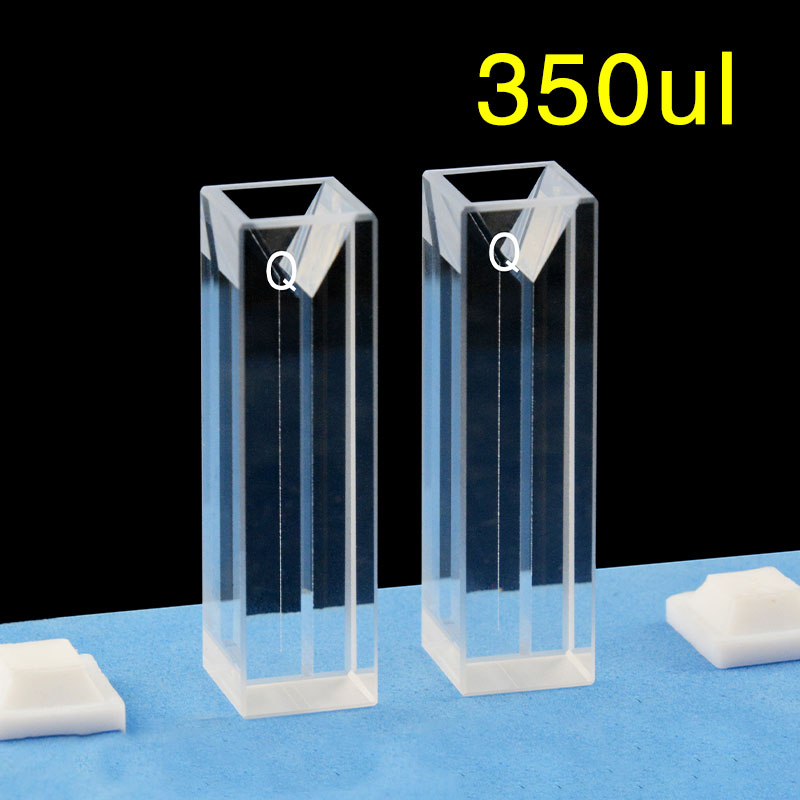

(C104CS49) Quartz Micro Cuvette, 10 mm / 1 mm (dual path) Path, 350 µL, Pack of 2

Weight	30 g

SKU: C104CS49

Original price was: $143.00.Current price is: $129.00.

In Stock

C104CS49 is a JGS1 quartz micro cuvette for fluorescence work with a 10 mm / 1 mm dual path, Four-Way Light geometry and 350 µL nominal capacity. This adhesive-bonded version is intended for neutral samples and is supplied with lids. Sold as a pack of 2 cuvettes.

In Stock

SKU: C104CS49 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CS49 is a JGS1 quartz micro cuvette for fluorescence measurements with a 10 mm primary path, a 1 mm secondary path and Four-Way Light access around the sample region. Its 350 µL nominal capacity suits compact micro-cell methods that use a narrow sample region rather than a full-width chamber. This adhesive-bonded option is intended for neutral samples and is sold as a pack of 2 cuvettes, with lids included.

Path Length: 10 mm / 1 mm (dual path)
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 1 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	1 mm

Choose this option

Choose C104CS49 when your method calls for a 10 mm / 1 mm dual-path micro cuvette and you want two identical cells in one sales pack. The narrow 1 mm sample region and four-side optical access make it suitable for fluorescence setups built around this chamber geometry. It is also important to match the chemistry to the construction, because this version is restricted to neutral samples.

What makes this option different

10 mm primary path with a 1 mm secondary path for narrow-region micro-cuvette methods.
Four-Way Light configuration for optical access from four transmitting faces around the chamber.
Adhesive-bonded Standard 80 construction intended for neutral samples.
350 µL nominal capacity, with 2 cuvettes supplied per sales pack and lids included.

Using this cell

Fill the cell so the illuminated sample region is fully covered during measurement, and keep the optical faces free from bubbles, droplets and dried residue. Use a consistent orientation for blank and sample runs so the beam passes through the same part of the chamber each time.

The included lid covers the opening during routine handling, but this remains an open-fill micro cuvette rather than a pressure-rated or closed-circuit assembly. The 350 µL figure is a nominal capacity, not a minimum working volume.

First-use check

Before first use, inspect the cell for clean optical faces, intact edges and even lid seating. Rinse with a suitable neutral liquid for your method, then run a blank and confirm that your normal fill level covers the beam without trapped bubbles.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use that bare-cell geometry to check holder fit and compartment clearance, then allow additional space for the lid above the cell if your setup is tight.

Z Height is not established for this SKU. If your instrument requires a defined beam-center height, check alignment against your holder and beam position instead of assuming it from the outer dimensions.

Solvents and cleaning

This is an adhesive-bonded Standard 80 quartz cuvette. MQ uses this construction for room-temperature water-based and buffered work, and the supplier restricts this option to neutral samples.

Avoid organic sample solvents and organic cleaning agents with this option. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning. Wipe the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

One sales pack containing 2 quartz micro cuvettes, with lids included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows, Z Height, closures, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C104CS49.
