(C104CE12) Quartz Micro Cuvette, 10 mm / 2 mm (dual path) Path, 700 µL, Pack of 2

Weight	30 g

SKU: C104CE12

Original price was: $646.00.Current price is: $582.00.

In Stock

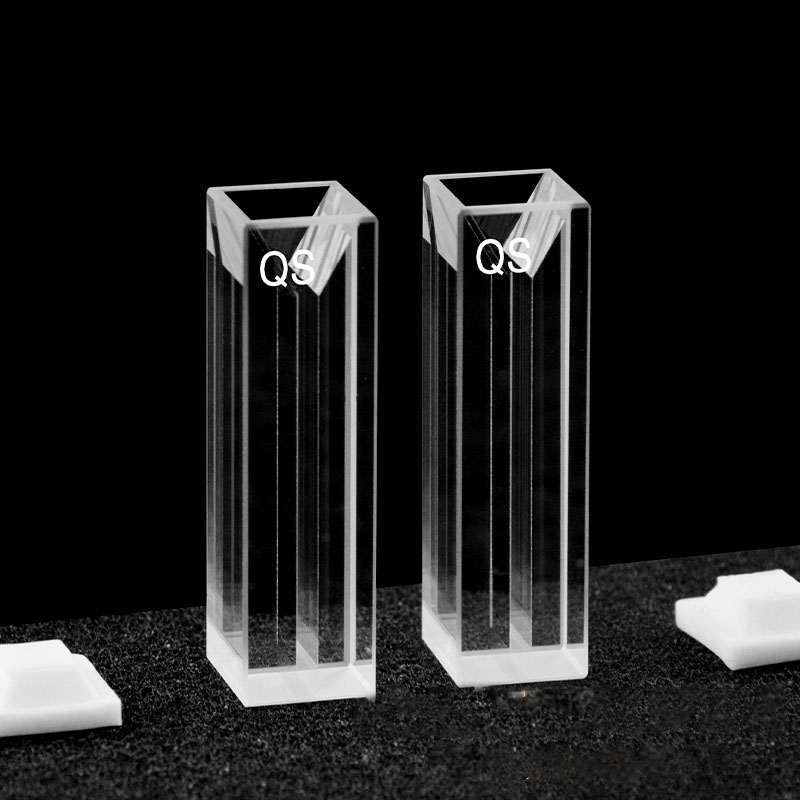

C104CE12 is a JGS1 quartz micro cuvette pack for fluorescence spectroscopy, with a 10 mm main path, 2 mm secondary path and Four-Way Light access in each cuvette. Each cell has a 700 µL nominal capacity and includes a lid. Sold as a pack of 2 cuvettes.

In Stock

SKU: C104CE12 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE12 is a JGS1 quartz micro cuvette option for fluorescence spectroscopy, supplied as two cuvettes of the same stated geometry. Each cuvette combines a 10 mm main path, 2 mm secondary path, Four-Way Light access and 700 µL nominal capacity, making this a practical choice when you need the same fluorescence cell format in a two-cuvette sale pack. Lids are included.

Path Length: 10 mm / 2 mm (dual path)
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 2 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	2 mm

Choose this option

Choose C104CE12 when you need this exact dual-path fluorescence micro cuvette as a two-cuvette purchase rather than a single cell. The compact body, side optical access and supplied lids suit routine blank/sample work or parallel preparation, provided your holder clearance and beam position match the stated uncapped geometry.

What makes this option different

Pack of 2 cuvettes with the listed geometry preserved across the sale unit.
10 mm main path with 2 mm secondary path for methods built around this dual-path layout.
Four-Way Light configuration for fluorescence setups that use optical access from multiple sides.
700 µL nominal capacity per cuvette in a compact micro-format body.

Using this cell

Fill each cuvette so the illuminated region is covered, then seat the lid gently on clean contact surfaces. If you use one cell for a blank and the other for a sample, keep orientation and fill practice consistent so the optical arrangement remains comparable between measurements.

The included lids are suitable for routine covered handling after filling, but they are not presented here as pressure-rated or leak-tight closures for inversion, transport or closed-loop flow use. The 700 µL figure is nominal capacity for each cuvette, not a minimum working volume.

First-use check

Inspect both cuvettes and lid contact areas for chips, dust or residue.
Rinse with a cleaning liquid appropriate to your method and dry the outer optical faces gently.
Check seating, beam position and your practical fill level with a blank before routine use.

Fit and optical alignment

The stated dimensions of 12.5 × 12.5 × 45 mm apply to each uncapped cuvette body. Allow extra vertical clearance for the fitted lid if your fluorometer compartment or accessory has limited headroom, because the installed overall height is not stated here.

Z Height is not stated for this option. If your holder depends on a defined beam-center height, check that point directly rather than assuming compatibility from the square body size alone.

Solvents and cleaning

This cuvette uses Molded 83 fabrication with an optical-contact supplier construction option. This fabrication is often selected for methods that may involve organic solvents or temperature-controlled work, but the exact chemical limits for this SKU are not stated here.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and check the suitability of your sample and cleaning liquids for the full cuvette-and-lid assembly before use.

Included with this option

Two cuvettes. Lids included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application.

Prototype batches typically involve 2–4 cells; final feasibility, specifications, quantity, price and production time are confirmed in quotation. Discuss your requirements and quote part number C104CE12.
