(C104CD4) Quartz Ultra-Micro Cuvette, 10 mm Path, 50 µL

Weight	30 g

SKU: C104CD4

Original price was: $190.00.Current price is: $171.00.

In Stock

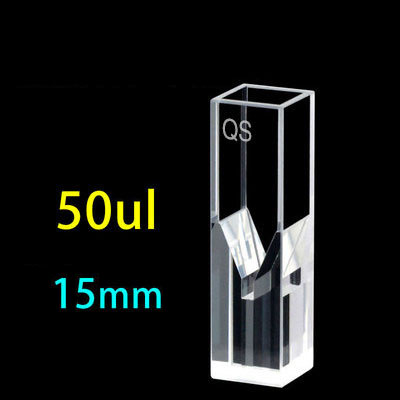

C104CD4 is a quartz ultra-micro cuvette with a 10 mm optical path, 50 µL nominal capacity and Four-Way Light geometry. Its open-top body and 15 mm Z Height make it useful for small-volume measurements where side optical access and beam height both matter. Supplied as 1 cuvette.

In Stock

SKU: C104CD4 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CD4 is a quartz ultra-micro cuvette for small-volume measurements with a 10 mm optical path and Four-Way Light access. This option combines a 50 µL nominal capacity, open-top filling and a 15 mm Z Height in a compact square body, so it suits setups that need controlled beam placement as well as access from more than one side. It is supplied as a single cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 50 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Z Height	15 mm
Sample Volume (Nominal)	50 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Opening Configuration	Open Top

Choose this option

Choose C104CD4 when you need a 10 mm path in a 50 µL ultra-micro format and your holder or instrument is designed around a 15 mm beam centre from the base. The open top allows direct pipette loading, while the Four-Way Light layout is useful when your optical arrangement needs side access in addition to the main transmission direction. This cell is best selected by matching both beam height and body fit, not by nominal volume alone.

What makes this option different

10 mm optical path with 50 µL nominal capacity in a compact ultra-micro format.
Four-Way Light geometry provides optical access from multiple sides for suitable measurement layouts.
15 mm Z Height sets the optical centre from the base for beam-height matching.
Open-top chamber allows direct filling and visual inspection of the sample level.
12.5 × 12.5 × 45 mm body gives a familiar square-body format for holder checks.
Single-cuvette sale unit suits replacement or one-at-a-time purchasing.

Using this cell

Fill the cell from the top and make sure the liquid covers the illuminated region during measurement. In a 50 µL ultra-micro format, bubbles, residue and inconsistent seating can affect the light path more easily than in a larger chamber, so consistent handling matters.

The 50 µL figure is the nominal capacity of the cell, not a minimum working volume. For repeatable results, use the same orientation for blank and sample measurements and keep the optical faces clean.

First-use check

Inspect the optical faces and top opening for dust or handling residue.
Test the empty fit in your holder before loading sample.
Run a blank to confirm beam alignment at your measurement position.
Check that your filling method covers the beam without trapped bubbles.

Fit and optical alignment

The stated body dimensions are 12.5 × 12.5 × 45 mm for the cell body. Check holder width, seating depth and surrounding clearance, especially if your workflow adds any separate cover or handling accessory, since a supplied closure is not established for this listing.

The key optical fit point is the 15 mm Z Height, measured from the cell base to the optical centre. Match that base reference to your instrument beam height before ordering. Four-Way Light access describes the optical layout category of this cell, but it does not replace checking your actual beam geometry.

Solvents and cleaning

This is a quartz cell, but the exact chemical limits for this option are not established here. If your method involves aggressive reagents, extended soaking, unusual cleaning liquids or heated chemical exposure, please check the full assembly suitability before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. For routine care, rinse promptly after use and wipe the exterior optical faces gently with non-abrasive optical tissue. See fabrication guidance for general construction background.

Included with this option

Supplied as 1 cuvette. A closure or other accessories are not established for this listing.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerance requirements. Send a labelled drawing or sketch, your holder or instrument details, the critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C104CD4.
