(C104CR) Quartz Fluorescence Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104CR

Original price was: $95.00.Current price is: $86.00.

In Stock

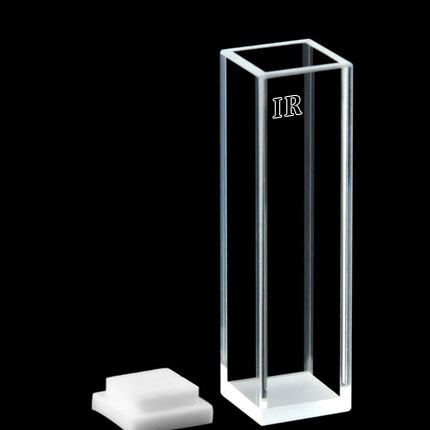

C104CR is a JGS3 quartz fluorescence cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. It is listed for both fluorescence spectroscopy and infrared spectroscopy, with a stated 260–3500 nm range. Sold as 1 cuvette, with a closure included.

In Stock

SKU: C104CR Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CR is a JGS3 quartz fluorescence cuvette for fluorescence spectroscopy and infrared spectroscopy. It combines a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity in a standard square-cell format, with a closure included. This option is useful when your work calls for four-side optical access and the stated wavelength range extends into infrared use.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Infrared Spectroscopy; Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C104CR when you need a 10 mm fluorescence-style cuvette in JGS3 quartz and your measurement range goes beyond the UV/visible range associated with shorter-wavelength cells. The four transmitting sides support fluorescence layouts that use adjacent faces, while the single-cuvette sale unit suits replacement or one-at-a-time purchasing.

What makes this option different

JGS3 quartz with a stated 260–3500 nm wavelength range.
Listed for both fluorescence spectroscopy and infrared spectroscopy.
10 mm optical path with Four-Way Light access on all four sides.
Sold as 1 cuvette, with closure included.

Using this cell

Fill the cell with a sample suited to your fluorescence or infrared method, then keep the optical faces in a consistent orientation so blank and sample runs use the same beam direction. Before measurement, check the beam area for bubbles, droplets or residue on the optical faces.

The stated 3.5 mL value is the nominal capacity of the cell, not a minimum working volume. If you use the closure during handling or measurement, make sure it does not interfere with the holder or the optical access used by your setup.

First-use check

Inspect the optical faces for chips, scratches, dust or dried residue.
Test fit the empty cuvette in the holder and check clearance for your intended closure arrangement.
Run a blank if your method requires one, using the same orientation planned for the sample.

Fit and optical alignment

The verified external dimensions are 12.5 × 12.5 × 45 mm for the uncapped cell. Use those dimensions to check holder seating and body clearance, but do not treat them as the overall installed size because the closure geometry and capped height are not stated here.

Z Height is not established for this option. If your instrument or holder requires a defined beam-center height, confirm that requirement before ordering.

Solvents and cleaning

This cuvette uses JGS3 quartz, and the source describes it with fused integrated construction. A detailed chemical compatibility list is not established here for this exact option, so sample and cleaning conditions should be checked for the complete cell and closure arrangement instead of assuming broad chemical resistance.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the outer optical faces gently with non-abrasive optical tissue.

Included with this option

One JGS3 quartz fluorescence cuvette with closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need different dimensions, path length, sample volume, optical window arrangement, Z Height or closure details, please send a drawing or labelled sketch together with your holder information and sample conditions. MQ custom projects are generally coordinated in JGS1 quartz and are quoted separately from the listed SKU. Contact us and quote part number C104CR.
