(C104SR) Quartz Stoppered Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104SR

Original price was: $151.00.Current price is: $136.00.

In Stock

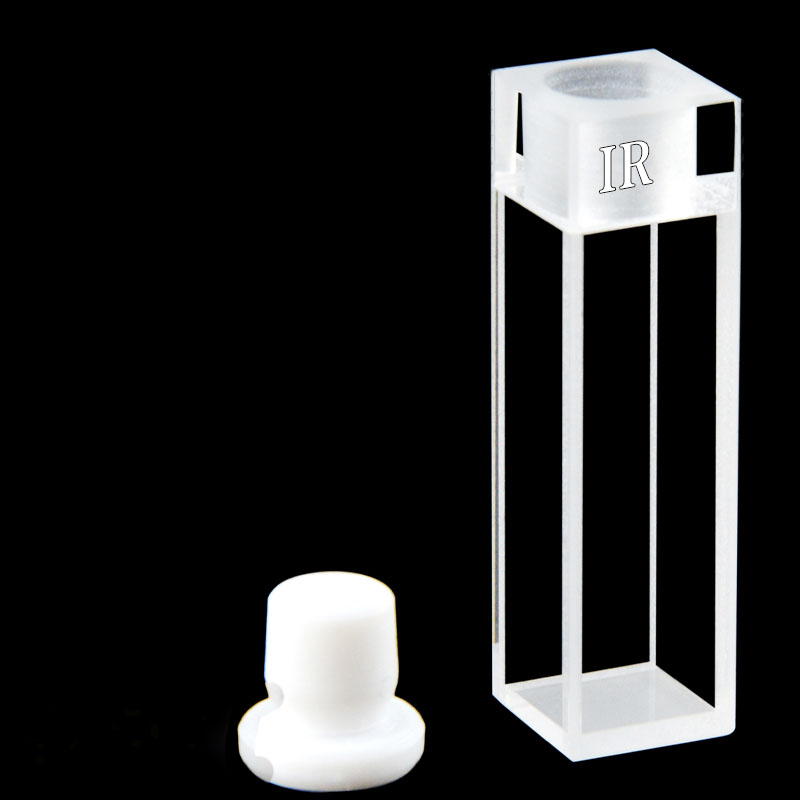

C104SR is a JGS3 quartz stoppered cuvette for infrared and fluorescence measurements with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity. The stoppered format keeps the sample covered during handling, and the JGS3 material supports the stated 260–3500 nm range. Supplied as 1 cuvette, with a stopper included.

In Stock

SKU: C104SR Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SR is a JGS3 quartz stoppered cuvette for infrared and fluorescence measurements with a 10 mm optical path and Four-Way Light geometry. Its 3.5 mL nominal capacity fits routine liquid work in a full-size rectangular cell body, while the included stopper lets you cover the sample during preparation and measurement. The stated wavelength range for this option is 260–3500 nm.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	Infrared Spectroscopy; Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Stopper
Closure Included	Yes

Choose this option

Choose C104SR when your method uses a 10 mm path length and you need a JGS3 quartz stoppered cell for infrared or fluorescence work. This option suits users who want four-side optical access in a standard rectangular body, with a covered sample chamber rather than an open-top cell.

What makes this option different

JGS3 quartz body for the stated 260–3500 nm operating range.
10 mm optical path for methods specified around that standard path length.
Four-Way Light layout for setups that use optical access from the four sides of the cell.
3.5 mL nominal capacity in a full-size rectangular cuvette format.
Stoppered design so the sample can be covered during handling and measurement.

Using this cell

Fill the cell so the liquid fully covers the optical region used by your instrument, then insert the stopper gently if your procedure benefits from a covered sample. Keep the same orientation for blank and sample runs, and keep bubbles, droplets and residue away from the optical faces.

The 3.5 mL value is the nominal capacity of the cell, not a minimum working volume. If your method depends on low fill levels, check the actual liquid height against your beam position before routine use.

First-use check

Before first use, inspect the optical faces under good light and confirm that the cell seats correctly in your holder. Run a blank with your reference liquid, verify that the filled sample covers the measurement region, and confirm that the stopper can be used without interfering with your instrument lid or sampling position.

Fit and optical alignment

The cuvette body measures 12.5 × 12.5 × 45 mm. These dimensions describe the rectangular body only, which is useful when checking holder clearance or compartment fit for the cell itself.

The stopper is separate from that 45 mm body dimension, so installed height in the instrument should be checked if top clearance is limited. Z Height is not listed for this option, so beam-center alignment should be verified for holders or accessories with fixed optical height requirements.

Solvents and cleaning

This cell is described with fused integrated construction in the supplier terminology. In practice, treat that as an assembled quartz cell description rather than as proof of a particular MQ fabrication grade, tolerance class or universal solvent rating. For general fabrication background, see MQ Cuvette Fabrication Glossary.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. The exact chemical limits of this assembled stoppered cell are not specified here, so demanding sample chemicals, rinse solvents and long contact times should be checked for the complete cell-and-stopper assembly.

Included with this option

Supplied as 1 stoppered cuvette. A stopper is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; feasibility, final specifications, quantity, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C104SR.
