(C102TR2) Quartz Screw-Top Cuvette, 10 mm Path

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C102TR2

Original price was: $99.00.Current price is: $90.00.

In Stock

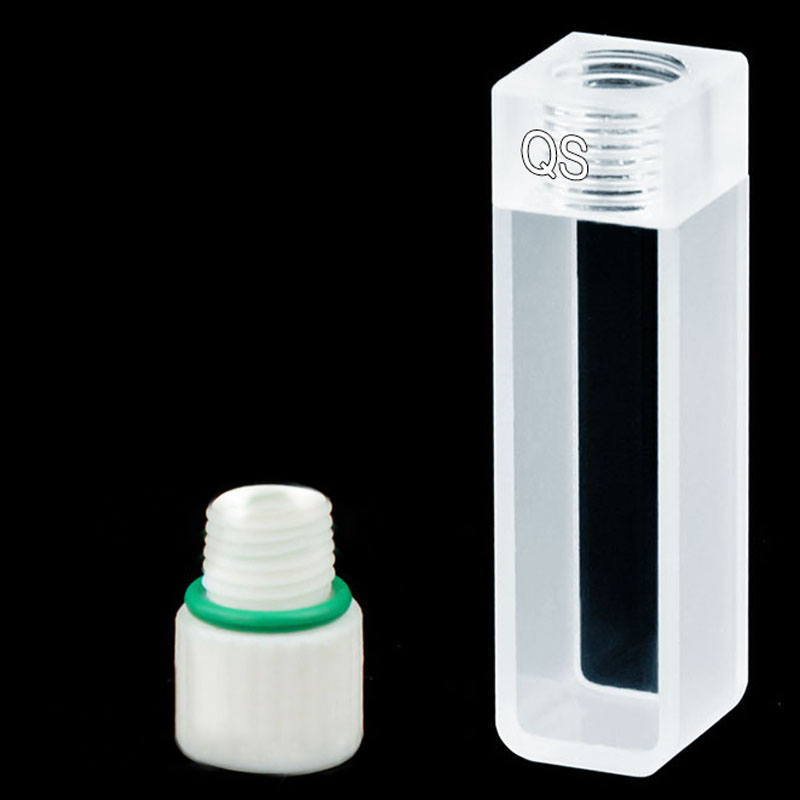

Quartz Screw-Top Cuvette with a 10 mm optical path, Two-Way Light layout and an internal-thread PTFE closure. This JGS1 cell suits methods that need a covered sample opening rather than an open-top format. Sold as 1 cuvette, with closure included.

In Stock

SKU: C102TR2 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102TR2 is a JGS1 quartz screw-top cuvette with a 10 mm optical path and Two-Way Light transmission. Its internal-thread opening and included PTFE closure make it a practical choice when you want to fill from the top and keep the sample opening covered during handling and measurement. This MQ offer is sold as 1 cuvette with closure included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Material	PTFE
Closure Included	Yes

Choose this option

Choose this cell when your method is built around a 10 mm transmission path and you want a capped quartz cuvette instead of an open-top chamber. The internal-thread format gives a defined top-loading opening, and the Two-Way Light layout keeps the optical direction straightforward through one opposing window pair. It is a useful choice for routine filled-cell handling where the sample should remain covered between preparation and reading.

What makes this option different

10 mm optical path for methods written around that transmission distance.
Two-Way Light configuration through one opposing optical face pair.
Internal-thread screw-top opening for direct top filling with a covered opening after loading.
JGS1 quartz body with PTFE closure included in a single-cuvette sales unit.

Using this cell

Fill the cuvette so the liquid fully covers the instrument beam, then fit the PTFE closure before moving the cell into the holder. Keep the same orientation for blank and sample measurements, and keep the optical faces free from fingerprints, droplets and bubbles.

Hold the cuvette by non-optical surfaces where possible. If your method involves repeated opening and closing, refit the closure evenly before each run and check the filled sample region visually before measurement.

First-use check

Inspect the cuvette and closure for transit damage, visible particles or residue.
Rinse with a cleaning liquid suitable for your method and for the complete cuvette-and-closure assembly.
Run a blank in the intended orientation and confirm that the filled sample region covers the beam.

Fit and optical alignment

This is a screw-top cuvette body, so allow vertical clearance above the holder for opening, filling and refitting the closure. The optical path length is specified, but Z Height is not established for this SKU, so beam-height-sensitive instruments or fixtures should be checked before ordering.

External dimensions for this exact SKU are not established as a released customer fit specification here. If your holder has limited top access or a tight fit envelope, please confirm the required body and beam-position dimensions before purchase.

Solvents and cleaning

Specific chemical limits for this assembled SKU are not established here. If your method uses aggressive chemicals, mixed solvents, elevated temperature or long contact time, check suitability for the complete cell and closure assembly before use. For background on MQ fabrication options, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Price is for 1 screw-top cuvette. A PTFE closure is included. Additional package contents are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes to optical path length, optical windows, Z Height, closures, connections and other application-specific dimensions. Send a dimensioned drawing or labelled sketch, along with instrument or holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, price and production time are confirmed in the quotation.

To discuss a project, use Discuss your requirements and quote part number C102TR2.
