(C102CR10) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C102CR10

Original price was: $72.00.Current price is: $65.00.

In Stock

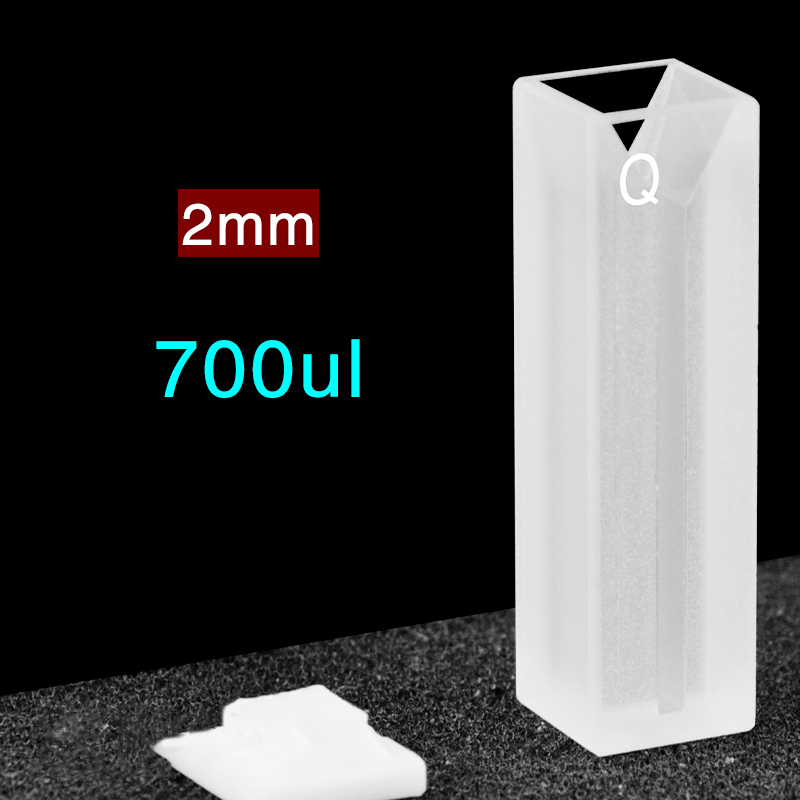

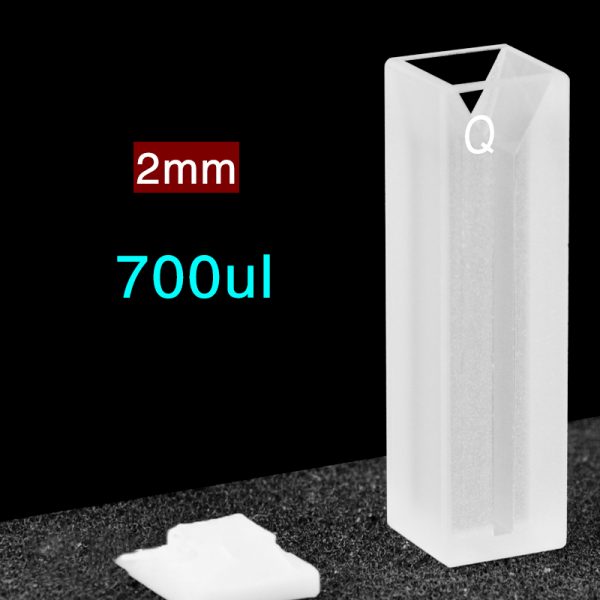

C102CR10 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, 700 µL nominal capacity and direct top filling. Its open-top body uses a 2 mm sample-region width and includes a PTFE lid. Supplied as 1 cuvette.

In Stock

SKU: C102CR10 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CR10 is a quartz micro cuvette for UV/Vis work that keeps a standard 10 mm path length in a compact 700 µL format. Its open-top body gives direct access for filling and cleaning, while the 2 mm sample-region width and 12.5 × 12.5 × 45 mm uncapped body help you check beam coverage and holder fit before you commit to the cell.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)
Detection Channel Width	2 mm

Choose this option

Choose C102CR10 when you want a single micro cuvette with direct top access instead of a permanently closed or flow-through format. The open body is practical for routine pipette filling, the 700 µL nominal capacity fits limited sample volumes, and the included PTFE lid adds covered handling after filling.

What makes this option different

Open-top cell body for direct filling and sample access.
10 mm optical path with 700 µL nominal capacity in a Micro Cuvette format.
2 mm sample-region width to review against your beam footprint.
Sold as 1 quartz cuvette with a PTFE lid.

Using this cell

Fill the cell from the top and keep the same orientation for blank and sample measurements. During loading, avoid trapping bubbles in the illuminated region and keep the optical faces free from fingerprints and dried residue.

The stated 700 µL is the nominal capacity, not a minimum working volume. If your method uses reduced fill levels, check in your own instrument that the liquid column fully covers the beam before routine measurement.

First-use check

Before first use, inspect the interior and optical faces for dust or shipping residue. Test the cell in your holder, then run a blank in the same orientation you plan to use for samples so you can confirm stable seating and a clear beam path.

Fit and optical alignment

The uncapped body measures 12.5 × 12.5 × 45 mm, with direct top access to the sample chamber. These body dimensions are useful for holder opening and vertical clearance checks, but they do not include any extra space needed once the lid is in place.

Z Height is not specified for this SKU, so instruments with a fixed beam center should not be matched by outer size alone. The 2 mm sample-region width is also worth checking where the beam is narrow or tightly positioned.

Solvents and cleaning

This option uses a supplier construction description of powder-fused construction. A customer-facing MQ fabrication category is not settled for this SKU, so this page does not assign a broad fabrication-based chemical claim.

Choose sample and cleaning conditions for the complete wetted assembly, including the PTFE lid. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. If your method involves aggressive reagents or extended chemical exposure, please check suitability before ordering.

Included with this option

Supplied as 1 quartz micro cuvette with a PTFE lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the critical fit, beam and sample requirements in your setup. Discuss your requirements and quote part number C102CR10.
