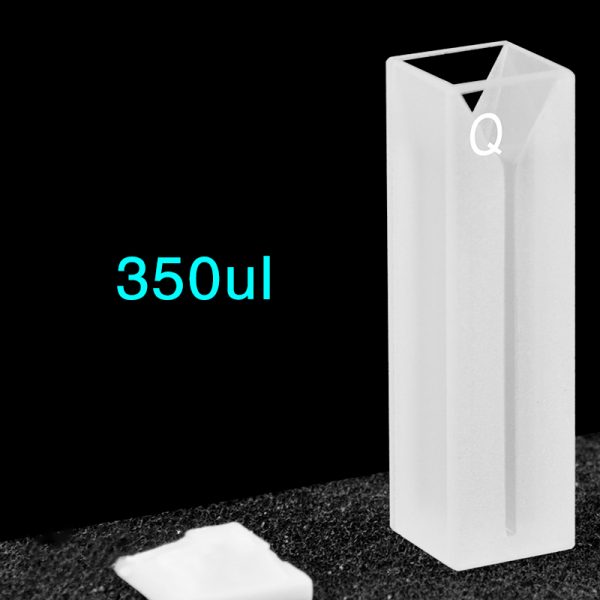

(C102CR12) Quartz Micro Cuvette, 10 mm Path, 350 µL

Weight	30 g

SKU: C102CR12

Original price was: $72.00.Current price is: $65.00.

In Stock

C102CR12 is a quartz micro cuvette for UV/Vis work with a 10 mm optical path, 350 µL nominal capacity and a 1 mm sample region in a Two-Way Light layout. Its open-top body gives direct filling access for small-volume handling. Sold as 1 cuvette, with an included closure.

In Stock

SKU: C102CR12 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CR12 is a quartz micro cuvette for UV/Vis measurements when you need a 10 mm path length in a compact 350 µL format. The open-top body gives direct access to the sample chamber during filling, and the 1 mm sample region helps you plan beam coverage more carefully than a wider chamber. This option is sold as 1 cuvette, with an included closure.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
Overall Height without Closure	45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)
Detection Channel Width	1 mm

Choose this option

Choose C102CR12 when you want a small-volume UV/Vis cell that you can fill directly from the top without threaded fittings or a demountable plate assembly. Its 10 mm optical path suits standard absorbance geometry, while the 350 µL nominal capacity keeps the sample chamber compact. The bare cell body is 12.5 × 12.5 × 45 mm, which is useful when checking holder seating and vertical clearance around the open rim.

What makes this option different

Open-top cell body for direct top filling and straightforward access to the sample chamber.
10 mm optical path for UV/Vis measurement in a micro cuvette format.
350 µL nominal capacity for methods that use a compact sample chamber.
Two-Way Light layout for transmission measurement through the stated optical path.
1 mm sample region, which makes beam placement and full coverage of the illuminated area more important during filling.
12.5 × 12.5 × 45 mm uncapped body dimensions for checking holder fit and top clearance separately from the closure.

Using this cell

Fill the cell from the top and make sure the illuminated region is fully covered before measurement. Remove bubbles from the optical path and keep the same orientation for blank and sample runs so the beam passes through the same part of the cell each time.

The 350 µL figure is the nominal capacity of the cell, not a minimum working volume. After filling, place the closure carefully for measurement, but do not treat that closure as a pressure-rated seal or as a basis for transport handling.

First-use check

Inspect the optical faces and rim for chips, dust, residue or fingerprints.
Test fit the empty uncapped body in the holder and check top clearance for the closure.
Run a blank and confirm that the filled sample covers the beam without trapped bubbles.

Fit and optical alignment

The listed 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use those figures to check whether the body seats correctly in your holder, then allow additional space above the rim for the closure arrangement.

Z Height is not specified for this SKU. If your instrument depends on a defined beam-center height, check your holder geometry and beam position before ordering rather than assuming alignment from the outer body size alone.

Solvents and cleaning

This SKU is described in the source as a powder-fused construction type. That process description is useful as a structural distinction, but it does not establish a full chemical compatibility list for this exact item.

Chemical limits are not specified here for this SKU. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, rinse promptly after use, and wipe the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

One C102CR12 quartz micro cuvette with an included closure.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. If you need a different fit, send a labelled drawing or sketch together with holder details, application wavelength, sample conditions and target quantity. Discuss your requirements and reference C102CR12.
