(C102SS33) Quartz Stoppered Cuvette, 10 mm Path, 1.05 mL

Weight	30 g

SKU: C102SS33

Original price was: $86.00.Current price is: $78.00.

In Stock

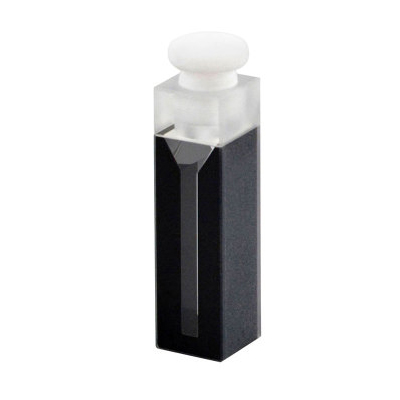

C102SS33 is a JGS1 quartz stoppered cuvette with a 10 mm optical path, Two-Way Light layout, 1.05 mL nominal capacity and a 3 mm sample-region channel. It is a useful choice when you want a covered micro-volume format with a little more sample space than the narrower slit version while keeping the same 10 mm transmission path for UV/Vis work from 200 to 2500 nm. Supplied as 1 cuvette with stopper included.

In Stock

SKU: C102SS33 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102SS33 is a JGS1 quartz stoppered cuvette for UV/Vis measurements from 200 to 2500 nm. It combines a 10 mm optical path with a 1.05 mL nominal capacity and a 3 mm sample-region channel, giving you a covered micro-volume format with more sample space in the measurement region than the narrower selected slit version. The stopper is included, and the listed price is for 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 1.05 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Stoppered Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	3 mm

Choose this option

Choose C102SS33 when your method uses a 10 mm transmission path but you want a stoppered micro-volume cell with a moderate-width sample region. The 3 mm channel and 1.05 mL nominal capacity make this option useful when the very narrow version is not your preferred fit, while still keeping the sample in a covered format during loading and measurement.

What makes this option different

10 mm optical path for methods specified around that path length.
1.05 mL nominal capacity in a compact stoppered cell.
3 mm sample-region channel for this exact selected geometry.
Two-Way Light layout for the main opposing measurement faces.
JGS1 quartz body for UV/Vis use from 200 to 2500 nm.
Stopper included for covered sample handling between filling and reading.

Using this cell

Fill the cuvette so the sample covers the beam in your own instrument, then insert the stopper gently. Before measurement, check the sample region and optical faces for bubbles, residue and exterior droplets, and keep the same orientation for blank and sample.

The stated 1.05 mL is nominal capacity. Minimum working volume is not specified for this SKU, so lower fills should not be assumed to cover the beam without checking your holder and beam position.

First-use check

Inspect the optical windows and edges for chips, dust or visible contamination.
Rinse with a suitable liquid for your method before first sample use.
Place the cuvette in the holder and confirm that the beam passes through the intended filled region.
Check that the stopper seats cleanly without forcing it.

Fit and optical alignment

The Two-Way Light configuration means this cell is intended for transmission through one opposing face pair rather than for multi-side optical access. The body height is 45 mm and the base is 12.5 × 12.5 mm, which are useful dimensions when checking holder clearance and compartment space.

Z Height is not stated for this selected SKU, and the body height does not define the overall height once the stopper is in place. If your instrument requires a specific bottom-to-beam position or has limited vertical clearance above the cell, please confirm those points before ordering.

Solvents and cleaning

This cuvette is made in Standard 80 adhesive-bonded quartz construction. For routine selection, that makes it best suited to room-temperature water-based samples and buffers. Avoid organic samples and organic cleaning solvents with this adhesive-bonded cell.

The exact chemical limits of the assembled cell are not specified for this SKU, so if your method involves aggressive chemicals, elevated temperature or extended contact time, please check the suitability of the full assembly before use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical surfaces with a non-abrasive wipe suitable for laboratory optics.

Included with this option

Supplied as 1 cuvette. A stopper is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, window arrangement, Z Height, closures and fabrication requirements. If you need a specific fit for a holder or instrument, send a drawing or labelled sketch with the critical dimensions and beam-position requirement. You can contact us here and reference part number C102SS33.
