(C102TE2) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C102TE2

Original price was: $133.00.Current price is: $120.00.

In Stock

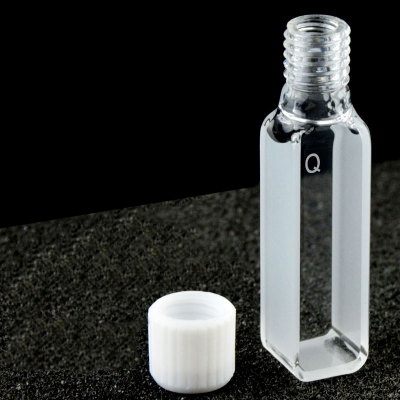

C102TE2 is a quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light geometry and 3.5 mL nominal capacity. Its 12.5 × 12.5 mm square body suits standard-style holder footprints, while the threaded top is useful when your method uses a closure-style opening rather than an open cell. Sold as 1 cuvette per MQ sale.

In Stock

SKU: C102TE2 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102TE2 is a quartz screw-top cuvette for UV/Vis work with a 10 mm optical path and 3.5 mL nominal capacity. The Two-Way Light layout follows standard opposing-face transmission, and the square 12.5 × 12.5 mm body helps you plan around a familiar cuvette footprint. Sold as 1 cuvette per MQ sale, this option is useful when you want a single threaded-top cell for routine liquid measurements.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Overall Height without Closure	55 mm
Body Height	35 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Fabrication Method	Molded 83

Choose this option

Choose C102TE2 when your method uses a 10 mm path and a standard transmission layout, but you want a screw-top body rather than an open-top cuvette. The 3.5 mL nominal capacity suits routine liquid filling, and the threaded neck is relevant when your sample handling process is built around adding and removing a cap-style closure.

What makes this option different

10 mm optical path suits UV/Vis methods written around the common 1 cm path length.
Two-Way Light geometry uses the main opposing optical faces for transmission measurement.
Threaded top opening distinguishes this cell from plain open-top formats.
12.5 × 12.5 mm body with 35 mm optical body height helps you review holder fit and working clearance.

Using this cell

Fill the cell so the liquid level fully covers the beam used by your instrument, and keep the optical faces free from bubbles, droplets and residue. For blank and sample readings, keep the same orientation in the holder and handle the cuvette by the non-optical surfaces where possible.

The stated 3.5 mL value is a nominal cell capacity, not a minimum working volume. If your method uses low fill levels, check the actual liquid height in relation to your instrument beam before routine use.

First-use check

Inspect the optical faces for dust, residue or handling marks before first use. Test the empty cell in your holder, rinse with a solvent suitable for your method, and run a blank to confirm that your normal fill condition covers the beam path.

Fit and optical alignment

The body footprint is 12.5 × 12.5 mm, with a 35 mm optical body height and a 55 mm overall uncapped height. These dimensions are useful for checking holder clearance and access around the neck area.

Z Height is not stated for this item. If your spectrometer or accessory holder requires a defined bottom-to-beam position, confirm that alignment before ordering rather than assuming it from the outside shape.

Solvents and cleaning

This cuvette is listed in the Molded 83 fabrication category. In practice, solvent suitability depends on the complete assembled cell and the actual chemicals, concentration, temperature and contact time used in your method.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Rinse promptly after use and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

1 quartz cuvette per MQ sale. The cell has a screw-cap closure style; confirm whether a cap or any accessories are included before ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, capacity, opening style or holder-related geometry, send your drawing or labelled sketch and identify the dimensions that matter to your setup. You can also share instrument or holder details, sample conditions and target quantity through our contact page and reference part number C102TE2.
