(C102TE4) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g
Dimensions	1.25 × 1.25 × 5.5 mm

SKU: C102TE4

Original price was: $266.00.Current price is: $240.00.

In Stock

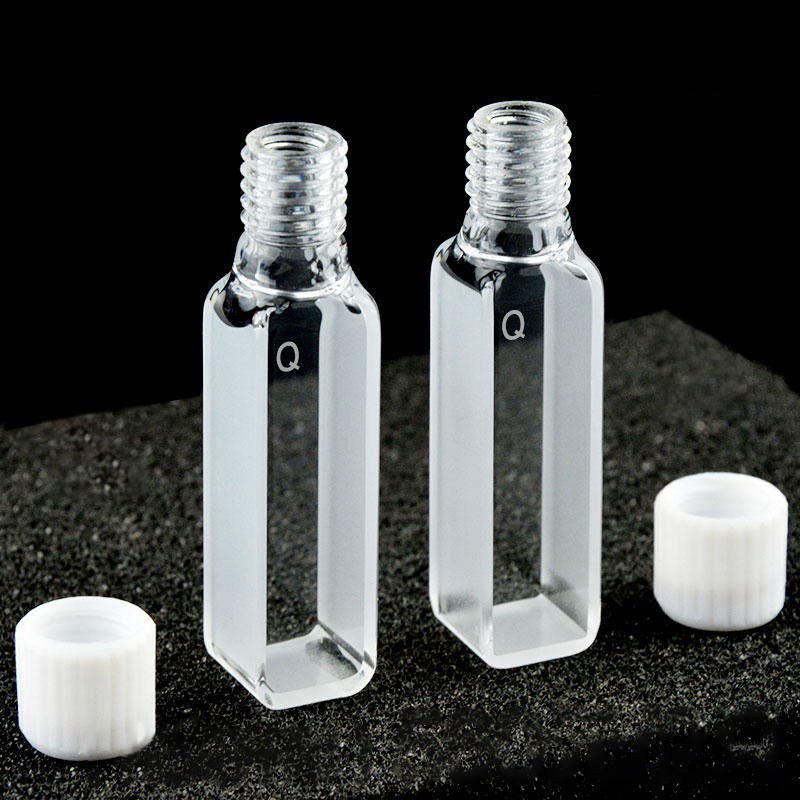

C102TE4 is a quartz screw-top cuvette with a 10 mm optical path, Two-Way Light geometry and 3.5 mL nominal capacity. The square 12.5 × 12.5 mm body suits standard-style holder footprints, and the supplied closures keep this as a covered cell format. Supplied as a pack of 2 cuvettes, with closures included.

In Stock

SKU: C102TE4 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102TE4 is a quartz screw-top cuvette for methods that use a 10 mm optical path in a covered sample cell. It combines a 3.5 mL nominal capacity with a Two-Way Light layout and a 12.5 × 12.5 mm square body, so you can plan around a familiar holder footprint while working with a threaded-top format. Supplied as a pack of 2, with closures included, this option is useful when you want two matching cells in the same sale unit.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 35 mm
Overall Height without Closure	55 mm
Body Height	35 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C102TE4 when you want a 10 mm quartz cuvette with a screw-cap closure rather than an open-top cell, and you need the actual sale quantity to be two cuvettes. The 3.5 mL nominal capacity suits routine liquid samples, and the covered-top format is useful when you prefer to keep the cell closed after filling during handling or measurement.

What makes this option different

Pack of 2 cuvettes gives you two matching cells in the priced sale unit.
Two-Way Light geometry uses the main opposing optical faces for transmission measurement.
Screw-cap format comes with closures included for this SKU.
12.5 × 12.5 mm square body follows a familiar cuvette footprint for holder checks.

Using this cell

Fill the cell so the liquid fully covers the beam area used by your instrument, then fit the supplied closure if your method calls for the sample to remain covered during handling or measurement. Keep the optical faces clean and free of bubbles, droplets and residue, and handle the cell by the non-optical surfaces where possible.

The stated 3.5 mL value is a nominal cell capacity, not a minimum working volume. If your method uses low fill levels, confirm that the filled sample height fully covers the beam in your own instrument.

First-use check

Inspect both cuvettes before first use, especially the optical faces and top opening. Test one cell in your holder, rinse with a solvent suitable for your method, and run a blank to confirm that your normal fill level covers the measurement area.

Fit and optical alignment

The cell body uses a 12.5 × 12.5 mm square base and a 35 mm optical body height, with an overall uncapped height of 55 mm. These dimensions are useful for checking holder clearance and vertical space around the neck area.

Z Height is not established for this item. If your instrument, autosampler or holder depends on a specific beam-center height, confirm that requirement before purchase rather than assuming interchangeability from the outer shape alone.

Solvents and cleaning

Use sample-contact and cleaning conditions that are suitable for the complete cell and its closure. If your method or cleaning routine involves demanding chemical conditions, see Compare fabrication methods for general construction background.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. For routine care, rinse promptly after use and wipe the outer optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 2 screw-top cuvettes, with closures included. Other package contents are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C102TE4.
