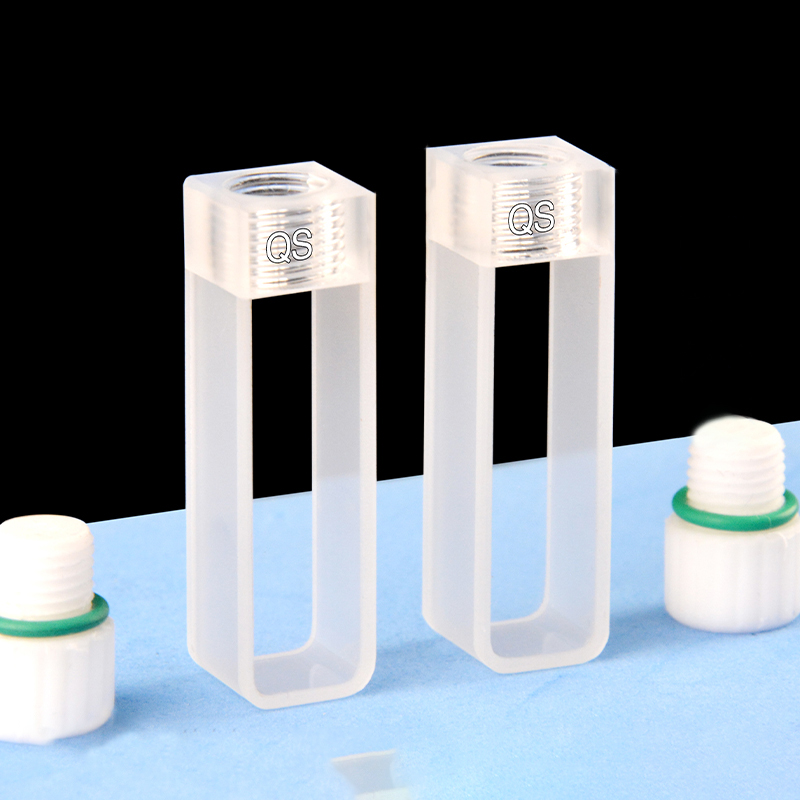

(C102TR7) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g
Dimensions	1.25 × 1.25 × 4.5 mm

SKU: C102TR7

Original price was: $198.00.Current price is: $179.00.

In Stock

C102TR7 is a JGS1 quartz screw-top cuvette for UV/Vis spectroscopy with a 10 mm optical path, Two-Way Light geometry and 3.5 mL nominal capacity. Its tall square body provides a covered sample chamber in a standard 12.5 × 12.5 mm cuvette footprint. Supplied as a pack of 2 cuvettes with PTFE closures included.

In Stock

SKU: C102TR7 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102TR7 is a tall JGS1 quartz screw-top cuvette for UV/Vis spectroscopy, supplied as a pack of 2. It combines a 10 mm optical path, Two-Way Light transmission and a 3.5 mL nominal capacity with a threaded top and included PTFE closures, making it useful when you want a covered sample cell in a familiar square cuvette format. This option is especially practical when your workflow benefits from having two matching sale-unit cells for routine blank/sample or duplicate preparation.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Opening Configuration: M10 internal screw closure (supplier specification)

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Body Height	45 mm
Overall Height with Closure	55 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Material	PTFE
Closure Included	Yes
Opening Configuration	M10 internal screw closure (supplier specification)
Closure Thread	M10

Choose this option

Choose C102TR7 when you need a 10 mm quartz cuvette with a covered opening, a taller sample chamber and a two-cuvette sale unit. The 45 mm body height gives a 3.5 mL nominal capacity, while the 12.5 × 12.5 mm base keeps the standard square footprint used in many holders. The threaded top lets you load the sample and cap the cell before handling or measurement.

What makes this option different

Pack of 2 cuvettes for workflows that benefit from two sale-unit cells.
10 mm optical path for UV/Vis methods based on the common 1 cm path length.
Two-Way Light layout for transmission through one opposing window pair.
Tall body with 3.5 mL nominal capacity and PTFE screw closures included.

Using this cell

Fill each cell so the liquid covers the beam path, then cap it if your procedure calls for covered handling between filling and measurement. Keep blank and sample orientation consistent, and hold the cuvette by the non-optical sides to avoid fingerprints on the light path faces.

This is a Two-Way Light cuvette, so measurement is through one pair of opposite optical faces. Before use, check for bubbles, droplets or residue on the windows and near the top opening.

First-use check

Inspect the optical windows, top opening and threads before first use. Rinse with a suitable blank or cleaning liquid for your method, make sure each cap seats smoothly, and run a blank to confirm that the liquid level fully covers the beam in your instrument.

Fit and optical alignment

Each cuvette has a 12.5 × 12.5 mm square base, a 45 mm body height and a 55 mm overall height with the cap fitted. That supports routine holder-fit checks, but the taller format may need more top clearance than a short-body screw-top cell.

Z Height is not listed for this item. If your holder or instrument depends on a specific beam-center height, verify that requirement directly. The M10 thread refers to the sample-access closure and should not be treated as a fluid fitting or pressure rating.

Solvents and cleaning

Choose the sample and cleaning routine for the complete assembled cell, including the quartz body and PTFE closure. The exact chemical limits for the assembled item are not established here, so check suitability before using aggressive chemicals or long contact times.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. Wipe the optical faces gently with non-abrasive optical tissue. For general construction background, see fabrication options.

Included with this option

Supplied as 2 cuvettes. PTFE closures are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can discuss related JGS1 quartz versions for different dimensions, optical path length, sample volume, closure style or holder-fit requirements. If beam position or compartment clearance is critical in your setup, send a labelled sketch or drawing with the dimensions that matter. Discuss your requirements and quote C102TR7.
