(C104TS12) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C104TS12

Original price was: $175.00.Current price is: $158.00.

In Stock

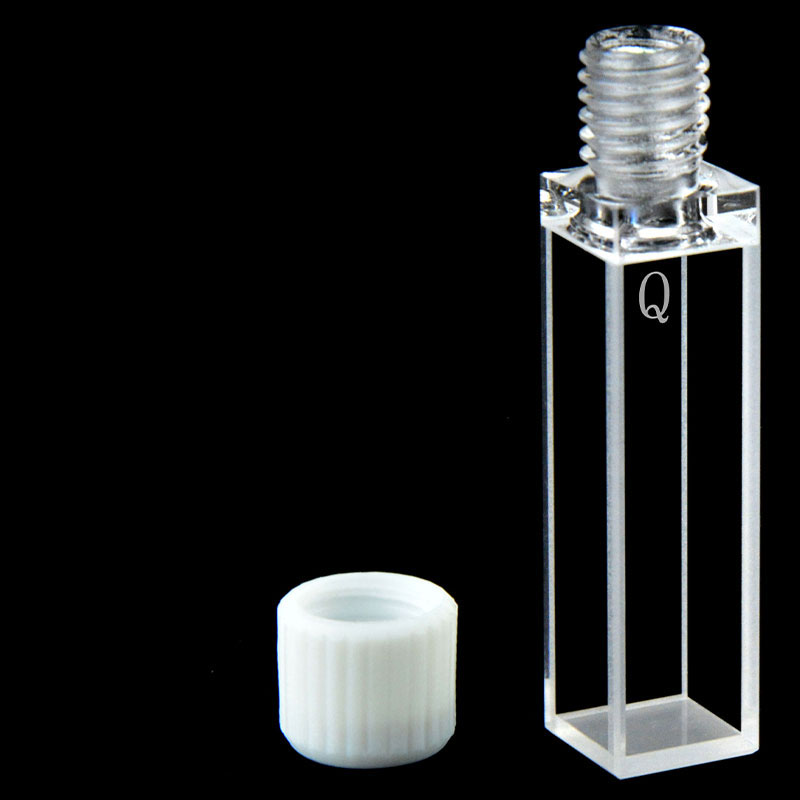

C104TS12 is a JGS1 quartz screw-top cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity for fluorescence spectroscopy. Its square 12.5 × 12.5 mm base fits a familiar cuvette footprint, while the covered top suits workflows where the sample is filled, closed and then measured. Supplied as 1 cuvette, with a closure included.

In Stock

SKU: C104TS12 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TS12 is a JGS1 quartz screw-top cuvette for fluorescence spectroscopy with a 10 mm optical path and Four-Way Light access. The 3.5 mL nominal capacity and square cuvette body make it a practical choice when you want a covered sample chamber without moving to a larger or more specialised holder format. This sale unit is supplied as 1 cuvette with a closure included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 56 mm
Body Height	45 mm
Overall Height with Closure	59 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C104TS12 when your method uses a 10 mm path and benefits from optical access on all four side faces. The screw-top opening lets you fill the cell and keep the sample covered during transfer and measurement, while the 12.5 × 12.5 mm base helps when your holder is designed around a square cuvette body rather than a round vial.

What makes this option different

10 mm optical path for methods written around this common cuvette length.
Four-Way Light geometry for side access from four faces in fluorescence setups.
3.5 mL nominal capacity in a square quartz cell body.
Screw-top format with closure included for covered sample handling.

Using this cell

Fill the cuvette so the liquid covers the instrument beam during measurement, then seat the closure carefully. Keep the optical faces clean and free of droplets, fingerprints and bubbles, and handle the cell by the non-optical surfaces where possible.

The covered top is useful for routine handling between filling and reading, but no pressure limit is stated for this SKU. It should not be selected on the assumption of pressure service or transport sealing.

First-use check

Inspect the optical faces, corners and threaded opening for chips, dust or residue.
Check that the closure seats cleanly before loading valuable samples.
Place the cuvette in your holder and confirm both beam position and cap clearance.

Fit and optical alignment

The external body dimensions are 12.5 × 12.5 × 56 mm, with a 45 mm body height and 59 mm overall height when capped. These dimensions are the key checks for holder fit, compartment clearance and top clearance above the neck and cap.

Z Height is not stated for this cuvette. If your fluorescence holder or optical setup depends on a defined beam-center height, verify that requirement before ordering rather than assuming fit from the 10 mm path alone.

Solvents and cleaning

This cuvette uses JGS1 quartz and a supplier-described fused integrated construction. You can review general construction guidance in the fabrication overview. The exact chemical limits for this complete assembled cuvette are not stated here, so aggressive sample or cleaning conditions should be checked before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 screw-top cuvette. A closure is included with this option. Additional package contents are not separately specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and toleranced fit details. Send a dimensioned drawing or labelled sketch together with your holder information, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C104TS12.
