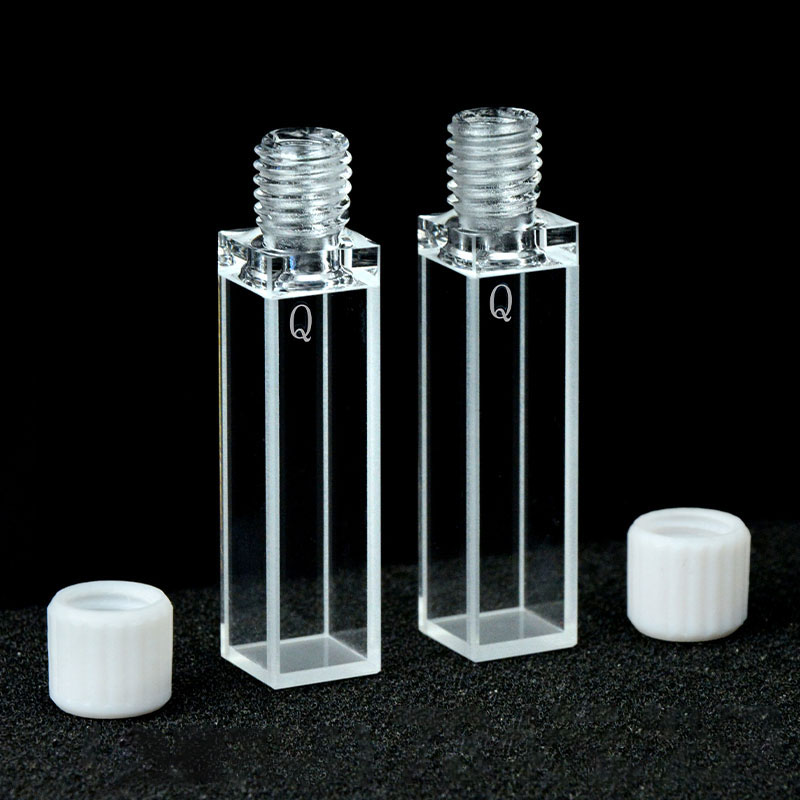

(C104TS13) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C104TS13

Original price was: $349.00.Current price is: $315.00.

In Stock

C104TS13 is a JGS1 quartz screw-top cuvette with a 10 mm optical path, Four-Way Light geometry and 3.5 mL nominal capacity for fluorescence spectroscopy. The square 12.5 × 12.5 mm base keeps a familiar cuvette footprint, and the covered top suits workflows where the sample is filled, closed and then measured. Supplied as a pack of 2 cuvettes, with closures included.

In Stock

SKU: C104TS13 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104TS13 is a JGS1 quartz screw-top cuvette for fluorescence spectroscopy with a 10 mm optical path and Four-Way Light access. Its 3.5 mL nominal capacity and square cuvette body make it a practical option when you want a covered sample chamber without changing to a different holder style. This sale unit is supplied as a pack of 2 cuvettes, with closures included.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 56 mm
Body Height	45 mm
Overall Height with Closure	59 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C104TS13 when your method uses a 10 mm path and benefits from optical access on all four side faces. The screw-top opening lets you fill the cell and keep the sample covered during transfer and measurement, while the 12.5 × 12.5 mm base works with holders designed around a square cuvette body.

What makes this option different

10 mm optical path for methods built around this standard cuvette length.
Four-Way Light geometry for optical access from four side faces.
3.5 mL nominal capacity in a square quartz cell body.
Pack of 2 cuvettes with closures included.

Using this cell

Fill each cuvette so the liquid covers the beam during measurement, then seat the closure carefully. Keep the optical faces free of droplets, fingerprints and bubbles, and use consistent orientation if your method depends on repeatable positioning between blank and sample.

The covered top helps during routine handling, but no pressure limit is stated for this SKU. Do not choose it on the assumption of pressure service or transport sealing.

First-use check

Inspect the optical faces, corners and threaded openings for chips, dust or residue.
Check that each closure seats cleanly before preparing analytical samples.
Place the cuvette in your holder and confirm both beam position and cap clearance.

Fit and optical alignment

The cell body is 12.5 × 12.5 × 56 mm, with a 45 mm body height and 59 mm overall height when capped. These are the main dimensions to check for holder seating, compartment clearance and top clearance above the cap.

Z Height is not stated for this cuvette. If your fluorescence holder or beam geometry depends on a specific beam-center height, verify that requirement before ordering rather than assuming fit from the path length alone.

Solvents and cleaning

This cuvette uses JGS1 quartz and a supplier-described fused integrated construction. You can review general construction guidance in the fabrication overview. The exact chemical limits for this complete assembled cuvette are not stated here, so aggressive sample or cleaning conditions should be checked before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 2 cuvettes. Closure is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and toleranced fit details. Send a dimensioned drawing or labelled sketch together with your holder information, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C104TS13.
