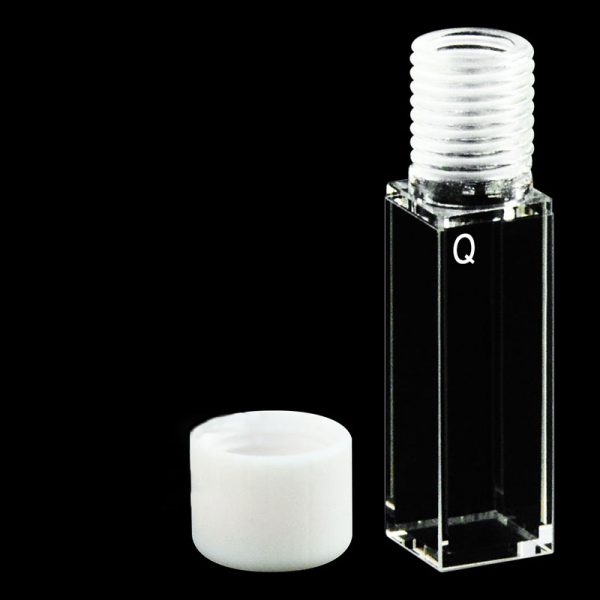

(C105TE2) Quartz Screw-Top Cuvette, 10 mm Path, 3.5 mL

Weight	30 g
Dimensions	1.25 × 1.25 × 5.2 mm

SKU: C105TE2

Original price was: $422.00.Current price is: $380.00.

In Stock

C105TE2 is a quartz screw-top cuvette with a 10 mm optical path, Five-Way Light configuration and 3.5 mL nominal capacity. It suits methods that use a standard 10 mm transmission path but also need additional optical access from the cuvette body. Supplied as 1 cuvette per price unit.

In Stock

SKU: C105TE2 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C105TE2 is a quartz screw-top cuvette for methods built around a 10 mm optical path and additional optical access from a Five-Way Light body. Its 3.5 mL nominal capacity and 12.5 × 12.5 mm base keep it in a familiar upright cuvette format, while the screw-top opening gives direct access for filling and handling from above.

The body section is 37 mm high, with an overall height of 52 mm to the top of the neck. A 56 mm overall height is also listed for the capped condition, which is useful when checking space above the holder, but closure inclusion is not part of the stated sale contents for this item.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Five-Way Light
Sample Volume (Nominal)	3.5 mL
Cell Body Dimensions	12.5 × 12.5 × 37 mm
Overall Height without Closure	52 mm
Body Height	37 mm
Overall Height with Closure	56 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Closure Type	Screw Cap
Fabrication Method	Molded 83

Choose this option

Choose C105TE2 when your setup uses a 10 mm path length but needs more than a simple opposing-face layout. The Five-Way Light configuration is the key reason to select this model, and the screw-top opening helps when your workflow involves top filling, manual sample exchange or access around the opening during preparation.

What makes this option different

Five-Way Light configuration adds optical access beyond a basic two-face transmission layout.
10 mm path length suits methods designed around that standard optical path.
3.5 mL nominal capacity provides a full-size sample chamber rather than a micro-volume format.
Screw-top opening with stated neck-height dimensions helps you check overhead clearance and handling space around the top of the cell.

Using this cell

Fill the cell from the top and orient it consistently if your method uses a defined illumination or collection direction. Keep the optical faces clean and free of droplets, fingerprints and bubbles in the beam area.

This cuvette is sold as the cell itself, so if your method depends on a particular closure or top assembly, check that detail before ordering. Nominal capacity is 3.5 mL; it should not be treated as a minimum working volume.

First-use check

Inspect the optical faces and opening area for dust or handling marks.
Test the fit in the holder before filling the cell.
Check that your intended fill level covers the beam region used by your method.
Run a blank in the same orientation you plan to use for measurement.

Fit and optical alignment

Check the 12.5 × 12.5 mm base against your holder opening and support surfaces. The quoted 37 mm body height and 52 mm neck height are useful for checking insertion depth, lid clearance and manual access above the holder.

Z Height is not listed for this item. If your instrument or accessory requires a specific beam-center height, verify the beam position against your holder and the optical faces you intend to use.

Solvents and cleaning

Molded 83 construction is used for this quartz cuvette. Choose sample and cleaning solvents that suit the complete setup you will actually use, especially if you will add your own closure or top component.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and clean the optical faces gently with suitable non-abrasive lab wipes or optical tissue.

Included with this option

1 cuvette per listed price unit. Contact us before ordering if you require a supplied closure or other accessory.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom quartz cuvette enquiries for changes involving dimensions, optical path length, sample volume, optical access, Z Height, closure style and tolerances. Send a dimensioned drawing or labelled sketch together with holder details, critical dimensions, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; final feasibility, specifications, price and production time are confirmed in quotation. Discuss your requirements and quote part number C105TE2.
