(C102CA2) Quartz Standard Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C102CA2

Original price was: $34.00.Current price is: $31.00.

In Stock

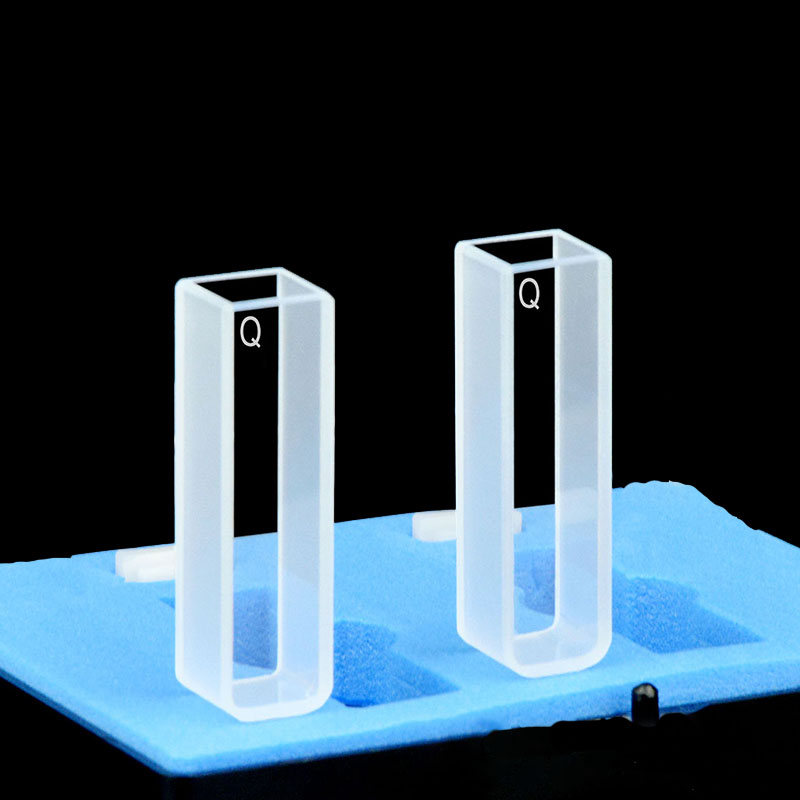

C102CA2 is a JGS1 quartz standard cuvette for UV/Vis spectroscopy with a 10 mm optical path, 3.5 mL nominal capacity and an included lid. It is intended for the stated 190–2500 nm range in a standard rectangular cell format. Sold per pack of 2 cuvettes.

In Stock

SKU: C102CA2 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CA2 is a JGS1 quartz standard cuvette for UV/Vis spectroscopy with a 10 mm optical path and 3.5 mL nominal capacity. Its rectangular body, supplied lid and stated 190–2500 nm range make it a practical choice for methods built around a standard 10 mm cell while keeping routine sample handling simple. This option is sold as a pack of 2 cuvettes.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	190 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C102CA2 when you need a standard 10 mm quartz cuvette for UV/Vis work and want a lid supplied with the cell. The 3.5 mL nominal capacity suits general bench filling by pipette, and the lidded top helps keep the sample area covered between preparation and measurement.

What makes this option different

10 mm optical path for methods written around this standard rectangular cuvette format.
JGS1 quartz body for UV/Vis measurements over the stated 190–2500 nm range.
3.5 mL nominal capacity for routine sample preparation and loading in a full-size cell body.
Supplied with a lid rather than as an open-top cell.
Uncapped cell body dimensions of 12.5 × 12.5 × 45 mm for holder and clearance checks.

Using this cell

Fill the cuvette so the liquid level covers the beam area used by your instrument, then place the lid as needed during normal bench handling. Keep the same orientation for blank and sample measurements, and check that no bubbles are sitting in the optical path.

Handle the cell by the outer non-optical surfaces where possible to help keep the clear faces clean. The stated 3.5 mL figure is a nominal capacity, not a minimum working volume, so low-fill methods should be checked against the beam position in your own setup.

First-use check

Before first use, inspect the optical faces for dust, fingerprints or transport residue. Test the empty cell body in your holder, then confirm after filling that the sample level fully covers the beam area used in your instrument.

Fit and optical alignment

The recorded external dimensions apply to the uncapped cell body: 12.5 × 12.5 × 45 mm. Use these dimensions to check holder seating, side clearance and the space available above the cell for filling and lid placement.

Z Height is not established for this SKU. If your holder or instrument requires a specific beam-center height, do not assume fit from the outer body size alone.

Solvents and cleaning

Quartz is commonly chosen for UV/Vis work, but the exact chemical limits of this cell assembly are not established here. Do not use hydrofluoric acid on quartz, and avoid hot strong alkalis and abrasive cleaning methods.

Rinse promptly after use and clean the outer optical faces gently with non-abrasive optical tissue. If your samples or cleaning routine involve demanding organic, acidic or alkaline conditions, review fabrication options and check the full conditions before routine use.

Included with this option

2 cuvettes per listed price unit. Lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body size, capacity or closure style, we can review a custom JGS1 quartz version. Send your drawing or labelled sketch, instrument or holder details, sample conditions and target quantity via our contact page, and refer to part number C102CA2.
