(C102CQA) Quartz Standard Cuvette, 10 mm Path, 3.5 mL, Pack of 2

Weight	30 g

SKU: C102CQA

Original price was: $34.00.Current price is: $31.00.

In Stock

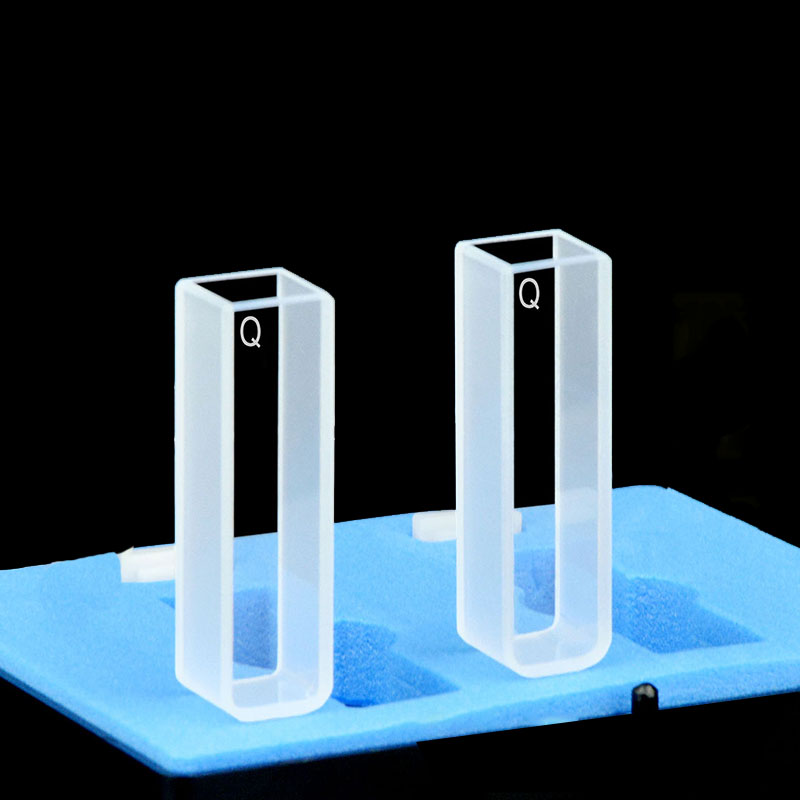

C102CQA is a JGS1 quartz standard cuvette for UV/Vis work with a 10 mm optical path, Two-Way Light layout and 3.5 mL nominal capacity. Its open-top body is supplied with a flat lid for direct filling and covered handling. The sale unit is a pack of 2 cuvettes.

In Stock

SKU: C102CQA Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CQA is a JGS1 quartz standard cuvette for UV/Vis spectroscopy with a 10 mm optical path and a 3.5 mL nominal capacity. The open-top body gives you direct access for filling, while the included flat lid covers the opening during routine handling. Sold as a pack of 2 cuvettes, this option suits users who want a standard 10 mm quartz format in a confirmed two-cell sale unit.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Flat Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C102CQA when your method uses a standard 10 mm path and you want a quartz cell for UV/Vis work across the stated 200–2500 nm range. The open top keeps filling simple, the flat lid covers the opening during bench handling, and the pack-of-two sale unit is useful when you want two physical cuvettes at the listed price.

What makes this option different

JGS1 quartz for UV/Vis measurements across the stated 200–2500 nm range.
10 mm optical path with a Two-Way Light layout for transmission measurements through one opposing optical pair.
Open-top body with a flat lid for direct filling and covered routine handling.
Pack of 2 cuvettes at the listed sale unit.

Using this cell

Fill from the open top and make sure the liquid level fully covers the beam area during measurement. For blank and sample runs, keep the same orientation and handle the cell by the non-optical surfaces to help keep the windows clean.

The 3.5 mL figure is a nominal cell volume, not a minimum working volume. If your method depends on low fill levels, check the beam position in your instrument before use.

First-use check

Rinse the cell with a suitable liquid for your method before the first measurement.
Inspect the optical faces for dust, residue or handling marks.
Place the cell in the holder and confirm that the beam passes through the intended window area at your working fill level.

Fit and optical alignment

The uncapped cell body measures 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. These dimensions are useful for holder seating and clearance planning, but they describe the bare cell body rather than the installed height with the lid fitted.

No Z Height is stated for this SKU, so instrument fit should not be assumed from body size alone where beam height is critical. If your holder, autosampler or accessory has limited space above the cuvette, allow for the added room needed by the flat lid.

Solvents and cleaning

Quartz is commonly selected for UV/Vis work because it supports measurements below the visible range as well as visible measurements. Specific chemical, concentration, temperature and contact-time limits are not stated for this SKU, so choose sample and cleaning conditions with the complete cell-and-lid assembly in mind.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Price is for a pack of 2 cuvettes. A flat lid is included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and other geometry changes. Send a dimensioned drawing or labelled sketch and identify the dimensions that are critical to your application.

Discuss your requirements and mention part number C102CQA.
