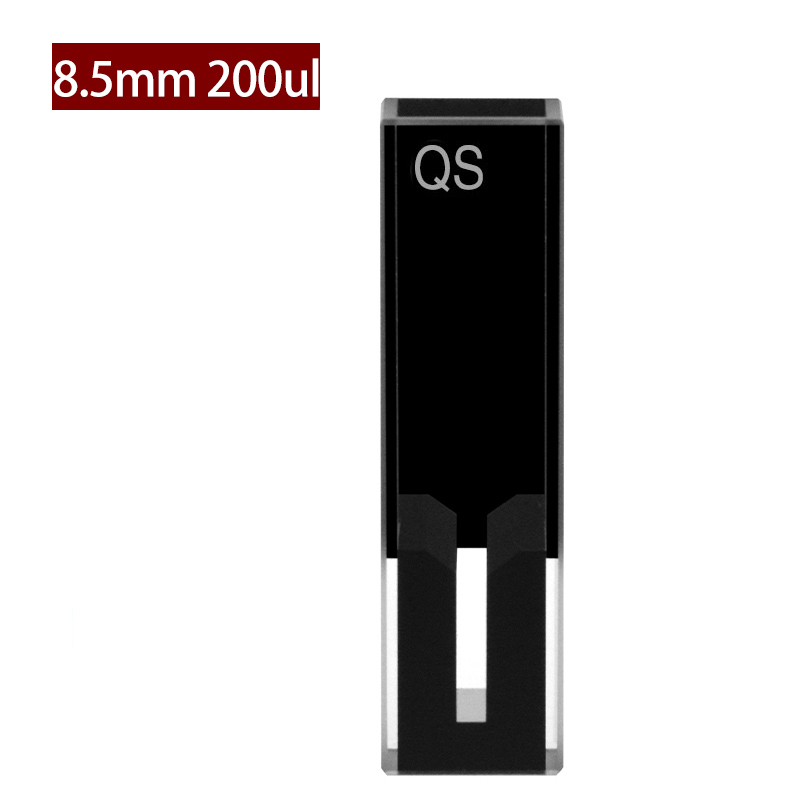

(C102CD15) Quartz Ultra-Micro Cuvette, 10 mm Path, 200 µL

Weight	30 g

SKU: C102CD15

Original price was: $98.00.Current price is: $89.00.

In Stock

C102CD15 is a JGS1 quartz ultra-micro cuvette for UV/Vis work with a 10 mm optical path and 200 µL nominal capacity. This Two-Way Light, open-top format combines direct filling with an 8.5 mm Z Height for setups that need a known beam position in a compact body. Supplied as 1 cuvette, with closure included.

In Stock

SKU: C102CD15 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CD15 is an ultra-micro quartz cuvette for UV/Vis measurements that need a 10 mm path length without moving to a larger standard cell body. This version combines a 200 µL nominal capacity with Two-Way Light transmission and an 8.5 mm Z Height, so it is useful when both sample volume and beam position matter. The open-top body gives direct access for loading, and the listed sale unit is 1 cuvette.

Path Length: 10 mm
Sample Volume (Nominal): 200 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Z Height	8.5 mm
Sample Volume (Nominal)	200 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS1
MQ Grade	Standard 80
Closure Type	Open Top
Closure Included	Yes
Fabrication Method	Standard 80
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C102CD15 when your method uses a 10 mm optical path but you want more nominal sample capacity than the smaller ultra-micro variants in the same body family. The 200 µL format can be easier to fill and handle while still keeping the compact 12.5 × 12.5 mm body section and the same 8.5 mm bottom-to-optical-centre reference for holder alignment.

What makes this option different

200 µL nominal capacity gives this option the largest sample region of the listed variants here while keeping the same ultra-micro body format.
10 mm path length suits UV/Vis methods built around that optical path rather than a shorter micro-cell path.
Two-Way Light layout is intended for straight-through transmission across two opposing optical faces.
Open-top access allows direct filling and inspection of the sample from above before measurement.
8.5 mm Z Height provides a defined bottom-to-beam-centre reference for beam-height checks.
Standard 80 adhesive-bonded construction is typically chosen for routine room-temperature water-based samples and buffers rather than organic-solvent methods.

Using this cell

Fill the cell from the open top and make sure the illuminated sample region is covered at your measurement position. Because this is a nominal-capacity figure, do not treat 200 µL as a minimum working volume; the usable fill level depends on your beam position and filling practice.

Use a consistent orientation for blank and sample runs, and keep the exterior optical faces clean and dry. The included closure can assist with handling after loading, but no pressure or leak-tight performance is stated here.

First-use check

Inspect the optical faces and interior before first use, then place the empty cell in the holder to confirm stable seating. Run a blank and verify that your normal fill level covers the beam cleanly without bubbles.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm for the bare cell body. That is the size to compare with your holder opening and seating depth; any clearance needed for the supplied closure should be checked separately in your own setup.

The Z Height is 8.5 mm from the cell bottom to the optical centre. Match that value to your instrument beam height before ordering, especially if your holder has limited vertical adjustment.

Solvents and cleaning

This model uses Standard 80 adhesive-bonded quartz construction. It is commonly selected for routine room-temperature water-based samples and buffers, and organic samples or organic cleaning solvents should be avoided with this assembled cell.

Exact chemical limits for this SKU are not established here, so check the complete wetted assembly, including the closure, against your sample and cleaning liquids before use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 ultra-micro cuvette. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz cuvettes for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. If you need a different holder fit or measurement geometry, send a dimensioned drawing or labelled sketch together with the critical dimensions, sample conditions and quantity.

Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. You can contact us and quote part number C102CD15.
