(C014CR1) Quartz Fluorescence Cuvette, 1 mm Path, 350 µL, Pack of 2

Weight	30 g

SKU: C014CR1

Original price was: $361.00.Current price is: $325.00.

In Stock

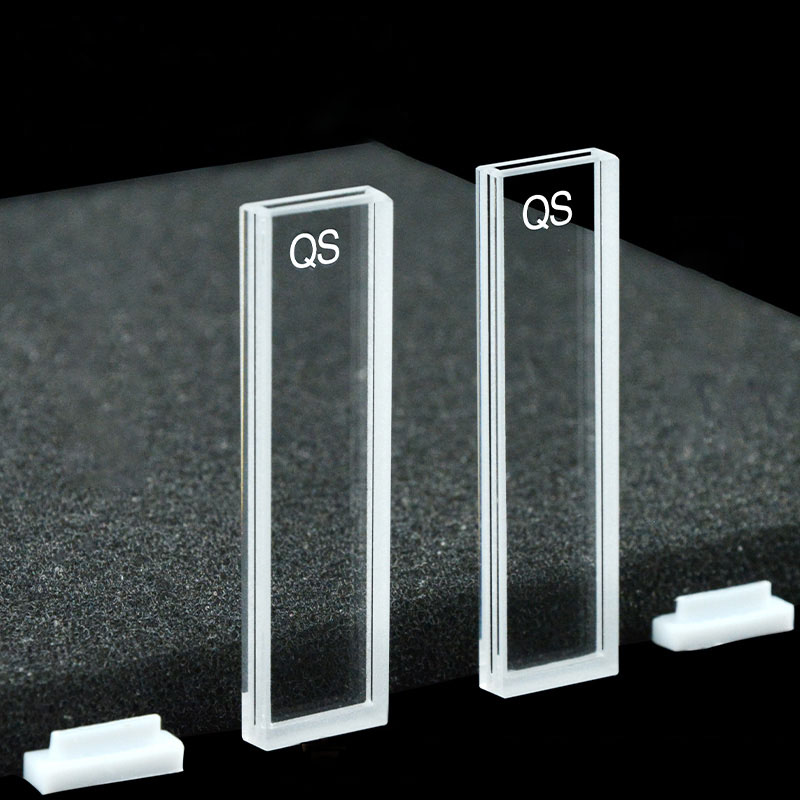

C014CR1 is a quartz fluorescence cuvette with a 1 mm optical path, Four-Way Light layout and 350 µL nominal capacity. The open-top body gives direct access for filling, and PTFE lids are included for this sale option. Supplied as a pack of 2 cuvettes.

In Stock

SKU: C014CR1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C014CR1 is a quartz fluorescence cuvette for methods that call for a 1 mm optical path and optical access from four sides of the cell body. Its 350 µL nominal capacity and open-top format make it straightforward to fill, inspect and handle in small-volume fluorescence work. This sale option is supplied as a pack of 2 cuvettes, with PTFE lids included.

Path Length: 1 mm
Sample Volume (Nominal): 350 µL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	1 mm
Light Transmission Configuration	Four-Way Light
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 3.5 × 45 mm
Cell Body Dimensions	12.5 × 3.5 × 45 mm
External Dimensions Scope	Body Only
Body Height	45 mm
Base Dimensions	12.5 × 3.5 mm
Material	Quartz
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C014CR1 when you need a short-path fluorescence cell with direct top access and a compact rectangular body. The 1 mm path length suits methods built around that optical geometry, while the Four-Way Light layout supports side optical access typical of fluorescence setups. The 350 µL nominal capacity helps you plan the chamber size, but it should not be treated as a minimum working fill volume.

What makes this option different

1 mm optical path for methods that require a short fixed path length.
Four-Way Light configuration with optical access on four sides of the cuvette body.
Open-top body for direct filling, checking the liquid level and cleaning access from above.
350 µL nominal capacity in a compact quartz fluorescence cuvette format.
Pack of 2 cuvettes with PTFE lids included for this priced sale option.

Using this cell

Fill each cuvette from the top opening and keep the beam area free of bubbles, droplets and dried residue. After filling, place the lid gently. The lid is useful for covered handling, but this product is not described as a pressure-rated or leak-tight cell.

If you use one cuvette for sample and the other for a blank or reference solution, keep the orientation consistent in the holder so the optical directions stay comparable between runs. Handle the optical faces carefully and avoid touching them directly during filling and transfer.

First-use check

Inspect both cuvettes on arrival for chips, contamination or visible residue. Before your first measurement, test holder fit, check that the beam passes through the intended clear faces, and run a blank under your normal setup to confirm stable positioning and a clean optical path.

Fit and optical alignment

The stated body dimensions are 12.5 × 3.5 × 45 mm, and these dimensions apply to the body only. Check your holder against the body width and depth, and leave enough clearance above the cuvette for pipetting or other top filling steps as well as lid placement and removal.

Z Height is not specified for this SKU. If your instrument uses a fixed beam-center position, verify alignment with your holder before ordering. Four-Way Light describes the optical access arrangement of the cuvette body; it does not by itself establish compatibility with every fluorescence instrument or holder.

Solvents and cleaning

This cuvette is made of quartz and intended for fluorescence spectroscopy in the stated geometry. For a general overview of cuvette construction options, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. Clean the optical faces gently with a non-abrasive optical tissue or another non-scratching lab wipe suitable for your procedure.

Included with this option

Supplied as a pack of 2 quartz fluorescence cuvettes with lids. The source for this sale option also indicates a storage box is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C014CR1.
