(C102CE48) Quartz Standard Cuvette, 1 mm Path, 350 µL

Weight	30 g

SKU: C102CE48

Original price was: $237.00.Current price is: $214.00.

In Stock

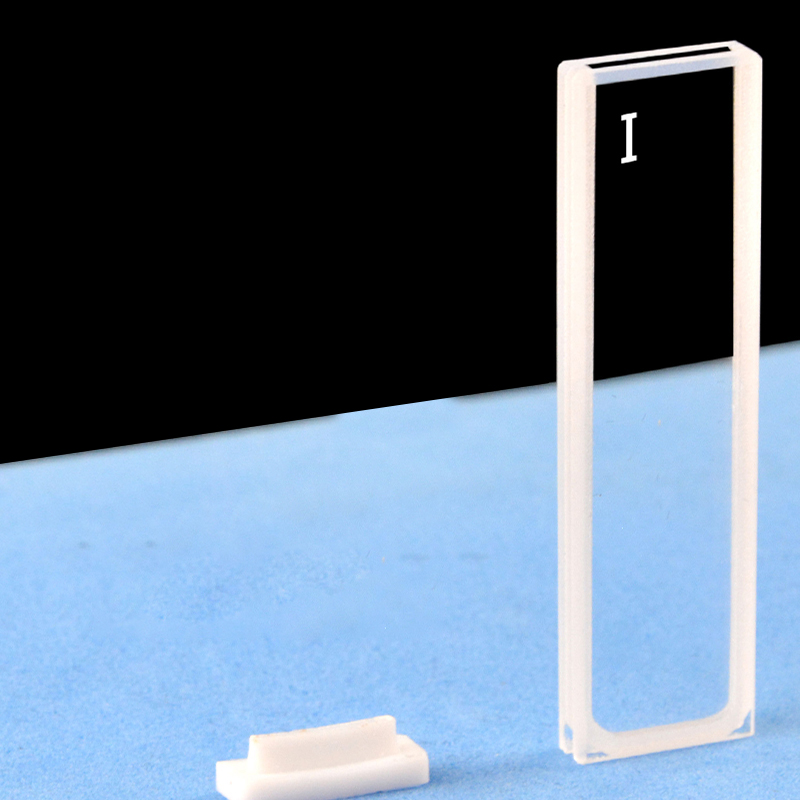

C102CE48 is a JGS3 quartz standard cuvette with a 1 mm optical path, 350 µL nominal capacity and Two-Way Light configuration. Its open-top body is supplied with a PTFE closure, and the listed price is for 1 cuvette.

In Stock

SKU: C102CE48 Categories: Cuvettes, Infrared (IR) Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE48 is a JGS3 quartz standard cuvette for infrared work that uses a 1 mm optical path in a compact rectangular body. It combines a 350 µL nominal capacity with Two-Way Light access and an open top supplied with a PTFE closure, making it suitable when you want direct filling rather than tubing or a demountable assembly. The listed price is for 1 cuvette.

Path Length: 1 mm
Sample Volume (Nominal): 350 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Infrared Spectroscopy
Path Length	1 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 3.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 3.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 3.5 mm
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Material	PTFE
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C102CE48 when your method needs a short fixed path in a narrow standard cuvette body and you want direct access to the sample chamber from above. The included PTFE closure covers the opening during normal handling, while the uncapped body dimensions let you check holder fit separately from any extra top clearance needed for the closure.

What makes this option different

1 mm optical path for short-path transmission measurements in a standard rectangular cell.
350 µL nominal capacity in a compact body for small filled sample volumes.
Two-Way Light layout for a straight beam path through two opposing optical faces.
Open-top body with PTFE closure included for direct filling and covered handling between steps.
12.5 × 3.5 × 45 mm uncapped dimensions for holder and slot checks based on the bare cell body.
JGS3 quartz specified here with a stated 260–3500 nm wavelength range.

Using this cell

Fill from the open top and make sure the sample fully covers the beam area used by your instrument. Remove bubbles before measurement, and keep the same orientation for blank and sample if your method depends on consistent positioning.

The PTFE closure is included for this option, but this remains an open-top cuvette rather than a sealed or pressure-rated assembly. The 350 µL figure is the nominal capacity, not a stated minimum working volume.

First-use check

Inspect the optical faces for dust, residue or scratches.
Test fit the uncapped body in your holder before preparing samples.
Run a blank at your measurement wavelength with the same orientation you will use for the sample.
Confirm that the filled sample covers the active beam area without visible bubbles.

Fit and optical alignment

The recorded external dimensions apply to the uncapped cell body: 12.5 × 3.5 × 45 mm. Use those body dimensions to check holder clearance and seating in your instrument or fixture.

Z Height is not established for this item, so beam-center fit should be checked against your holder or spectrometer before ordering if your setup has a fixed beam position requirement. The listed dimensions do not include extra installed-clearance allowance for the closure.

Solvents and cleaning

Use cleaning and sample-contact conditions that are suitable for the complete cell assembly. The supplier wording describes fused integrated construction, but a controlled MQ fabrication grade is not established for this SKU, so chemical suitability should be checked from your actual sample liquid and cleaning routine rather than assumed from a grade label.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. Wipe exterior optical faces gently with non-abrasive optical tissue. If your method involves aggressive chemicals or extended contact time, please check suitability before use.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different design, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are assessed separately from this listed option. Feasibility, quantity, price and production time are confirmed in the project quotation.
