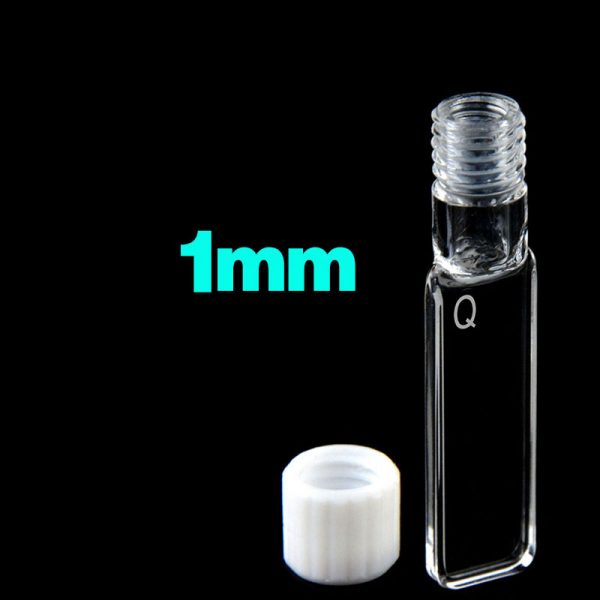

(C014CS12) Quartz Screw-Top Cuvette, 1 mm Path, 350 µL

Weight	30 g
Dimensions	1.25 × 0.35 × 5.5 mm

SKU: C014CS12

Original price was: $309.00.Current price is: $279.00.

In Stock

C014CS12 is a JGS1 quartz micro cuvette with a 1 mm optical path, Four-Way Light access and 350 µL nominal capacity. Its large screw opening gives access through the neck for loading the small sample region while preserving side optical access; check the neck and top clearance in your holder.

In Stock

SKU: C014CS12 Categories: Cuvettes, Products, Quartz Screw-Top Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C014CS12 is a JGS1 quartz cuvette with a 1 mm optical path, Four-Way Light geometry and 350 µL nominal capacity. It suits setups that need a short path together with side optical access around the sample region, while using a necked, covered format rather than an open-top chamber. The quartz body is specified for use from 200 to 2500 nm.

This format is useful when you want to fill through the neck opening and keep the cell body compact around the measurement zone. The nominal 350 µL capacity keeps the sample region in the microlitre range, but it should not be read as a minimum working fill for your method.

Path Length: 1 mm
Sample Volume (Nominal): 350 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	1 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	350 µL
Overall Height without Closure	54 mm
Body Height	38 mm
Base Dimensions	12.5 × 3.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Fabrication Method	Molded 83

Choose this option

Choose C014CS12 when your method is built around a 1 mm path and benefits from optical access on four sides of the cell body. The necked format gives you a defined filling point above the sample region, which can be easier to handle than an open chamber when you want to load, empty and re-rinse through the top opening while keeping the optical faces unobstructed around the sides.

What makes this option different

1 mm optical path for methods that require a short transmission path.
Four-Way Light configuration for optical access from multiple side directions around the sample region.
350 µL nominal capacity in a compact microlitre-format quartz cell.
Large screw-opening format for filling through the top opening rather than direct open-chamber access.
JGS1 quartz body specified for the 200–2500 nm range.
Optical-contact integrated construction / Molded 83: handle the joined body as an assembly and load through the screw opening; the grade name does not establish a numerical tolerance or temperature rating.

Using this cell

Fill the cell through the neck opening and make sure the illuminated region is fully covered before measurement. Keep the orientation consistent between blank and sample runs, especially if your setup uses more than one optical direction around the cuvette.

The nominal capacity describes the cuvette volume, not the minimum volume needed for every instrument or beam position. If your procedure depends on a defined beam height or very low fill level, check that requirement against your holder and optical geometry before routine use.

First-use check

Inspect the optical faces and neck opening for dust, residue or handling marks.
Rinse with a liquid suitable for your sample and cleaning procedure.
Test the fit in your holder and check that the beam passes through the intended filled region.
If your workflow depends on a supplied lid, cap or storage accessory, verify the package contents before routine use.

Fit and optical alignment

For clearance planning, the body height is 38 mm and the uncapped overall height is 54 mm. The listed base dimensions are 12.5 × 3.5 mm. These figures are useful for basic holder and vertical-space checks, but they do not establish the full external envelope around the neck area.

Z Height is not established for this SKU. If your instrument or accessory requires a defined beam-center height, confirm that point before ordering. Four-Way Light describes the optical access pattern of the cuvette body; it does not by itself establish fit with a specific instrument.

Solvents and cleaning

This cuvette is described by the supplier as using optical-contact integrated construction, with the MQ glossary mapping shown as Molded 83. That glossary term is useful as a general fabrication reference, but suitability still depends on the complete assembled cuvette and your actual sample, rinse and soak conditions.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning materials. If your sample or cleaning procedure involves chemically aggressive liquids or extended contact time, check suitability for the complete assembly before use.

Included with this option

The listed price is for 1 C014CS12 cuvette. Confirm the supplied closure and any additional components required for your setup.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C014CS12.
