(C202CR2) Quartz Large-Window Cuvette, 20 mm Path, 35 mL
Original price was: $128.00.$116.00Current price is: $116.00.
C202CR2 is a JGS1 quartz large-window cuvette with a 20 mm optical path, Two-Way Light geometry and a 35 mL nominal capacity. Its open-top chamber gives direct access for filling, mixing and interior cleaning in transmission measurements. Supplied as 1 cuvette.
Description
C202CR2 is a JGS1 quartz large-window cuvette for straight-through transmission measurements with a 20 mm optical path and 35 mL nominal capacity. The open-top chamber gives direct access to a large sample space, which is useful when your method needs a higher fill volume or more room for manual filling and cleaning. Its stated wavelength range is 200–2500 nm.
- Path Length
- 20 mm
- Sample Volume (Nominal)
- 35 mL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Large-Window Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Pack Quantity | 1 Piece |
| Path Length | 20 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 35 mL |

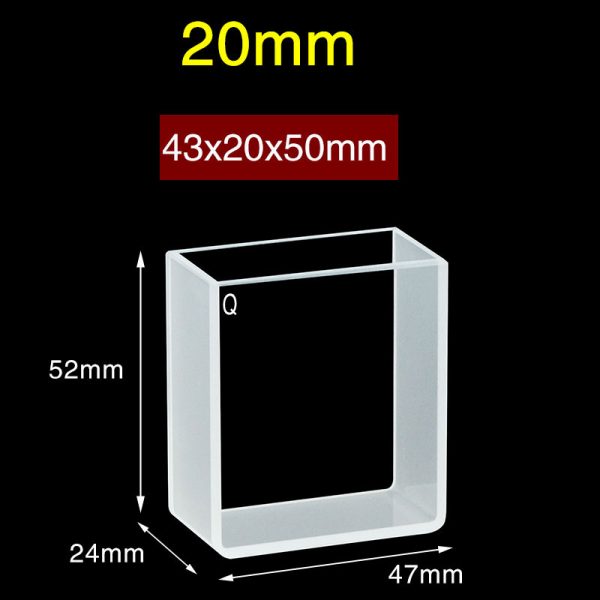

| External Dimensions | 47 × 24 × 52 mm |
| Body Height | 52 mm |
| Base Dimensions | 47 × 24 mm |
| Internal Dimensions | 43 × 20 × 50 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Opening Configuration | Open Top |
Choose this option
Choose C202CR2 when you need a 20 mm transmission path in a larger open-top quartz cell rather than a compact chamber. The 43 × 20 × 50 mm internal dimensions create a broad sample region, and the Two-Way Light layout keeps the optical path as a standard straight pass through two opposite faces. This format suits methods where chamber access and liquid volume matter as much as the path length.
What makes this option different
- 20 mm optical path for methods set up around this transmission distance.
- 35 mL nominal capacity with a large internal chamber for larger sample fills.
- Open-top access for direct pipetting, pouring and interior rinsing.
- Two-Way Light layout for straight-through measurements across opposite optical faces.
- JGS1 quartz, 200–2500 nm for work across the stated UV/Vis to near-infrared range.
Using this cell
Fill the cell from the top and keep the liquid level high enough to cover the beam position used by your instrument. Before measurement, remove bubbles from the optical path area and keep the same cell orientation for blank and sample runs.
The open-top format is convenient for bench work where you want direct access to the sample chamber during filling or rinsing. A minimum working volume is not stated for this cuvette, so routine fill level should be checked against your own beam position and method.
First-use check
- Inspect the optical faces and chamber for dust, residue or scratches.
- Rinse with a suitable liquid for your method and run a blank before sample measurements.
- Check that your normal fill level covers the beam area without trapped bubbles.
Fit and optical alignment
The outer body size is 47 × 24 × 52 mm, with a 47 × 24 mm base. This helps when checking compartment clearance, holder width and available height in a spectrometer or accessory mount.
Z Height is not specified for this item. If your instrument has a fixed beam height or a tight holder geometry, confirm beam alignment from the bottom support position before ordering instead of relying on overall body height alone.
Solvents and cleaning
Quartz is widely used for broad-wavelength optical work, but the chemical limits for this complete cuvette assembly are not specified here. If your method involves aggressive chemicals, heated solutions, long contact times or a dedicated cleaning solvent, check suitability for the complete cell before ordering.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces with non-abrasive optical tissue. For fabrication background, see Compare fabrication options.
Included with this option
Supplied as 1 cuvette. No closure or additional accessories are specified for this sales option.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for changes involving dimensions, optical path length, sample volume, optical windows, Z Height, closures or connection details. Send a dimensioned drawing or labelled sketch with your holder or instrument information, wavelength range and sample conditions. You can discuss your requirements and quote part number C202CR2.
Additional information
| Weight | 100 g |
|---|
