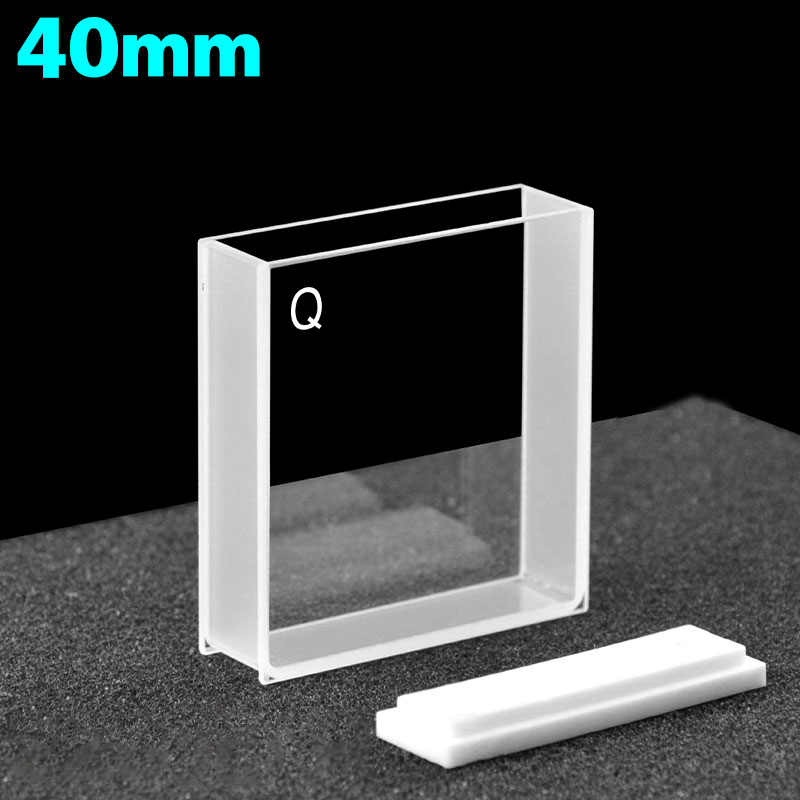

Quartz 10mm Path / 40mm Body Large Surface Cuvette, 14ml, Sintered 80, Two-way Light, PTFE Cap, 1pc/ea, C402CA2

Weight	100 g

SKU: C402CA2

C402CA2 Quartz 10mm large surface cuvette – 14ml Sintered 80 Two-Way Light PTFE Cap

Original price was: $109.00.Current price is: $99.00.

In Stock

Quartz 10 mm large surface cuvette, 14ml, Sintered 80 (>80% transmittance). Two-Way Light. 200–2500 nm. PTFE Cap. SKU: C402CA2. In Stock.

In Stock

SKU: C402CA2 Categories: Cuvettes, Products, Quartz Large Window Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

Crafted using the Sintered 80 fabrication method, the C402CA2 ensures exceptional optical clarity and durability. This large surface cuvette provides a 10mm optical path with 14ml internal volume, housed in a 40mm body. Two-Way Light configuration allows measurement from both polished faces features a PTFE cap for sample protection and evaporation control.

Technical Specifications — Large Surface Cuvette

Specifications
Material	Quartz (Fused Silica)	SKU	C402CA2
Type	Large Surface Cuvette	Path Length	10 mm
Internal Volume	14ml	Fabrication	Sintered 80
Transmittance	>80%	Wavelength	200–2500 nm
Optical Windows	2 (Two-Way Light)	Exterior Dimensions	44 × 14 × 55 mm
Interior Dimensions	40 × 10 × 50 mm	Cap Type	PTFE Cap
Package	1pc/ea

Applications

◆ UV-Vis Spectrophotometry

◆ Large-Surface Optical Analysis

◆ Beam Profiling and Alignment

◆ Environmental Monitoring

◆ Water Quality Assessment

◆ Multi-Angle Light Scattering

Why a 40mm Body Large Surface Cuvette?

The 40 mm body houses a standard 10 mm optical path, providing a large surface area for beam alignment and multi-angle measurement approaches. With 14ml capacity and interior dimensions of 40 × 10 × 50 mm, the C402CA2 is suited for experiments requiring generous sample volumes while maintaining precise 10 mm path measurements. The oversized body simplifies sample loading, reduces meniscus effects, and allows wider beam geometries for improved signal collection.

Why Sintered 80?

The Sintered 80 method provides reliable optical quality at an excellent value point. The C402CA2 delivers >80% transmittance from 200 nm through the near-IR, making it a practical choice for routine analytical work, educational settings, and quality-control laboratories.

Usage Tips

Handling: Always hold the cuvette by its frosted or unpolished surfaces to prevent fingerprints on optical windows. Clean with spectroscopic-grade solvents and lint-free wipes. For best results, rinse with your sample solution before final filling to minimize dilution effects. Store upright in a padded container to protect the polished optical faces.

Custom Orders

Need a modified path length, special coating, or custom dimensions? We manufacture quartz cuvettes to your exact specifications. Contact our team to discuss your requirements.

Specifications are nominal values measured under standard conditions. Actual performance may vary slightly. All quartz cuvettes are manufactured from high-purity synthetic quartz glass. Images are representative; actual product appearance may differ.
