(C502CR8) Quartz Rectangular Sample Cell, 50 mm Path

Weight	100 g

SKU: C502CR8

Original price was: $179.00.Current price is: $162.00.

In Stock

C502CR8 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 50 mm optical path and a Two-Way Light layout. Its large 50 × 50 × 53 mm internal chamber allows direct top filling, and this version is supplied with a closure. Sold as 1 cuvette per sale.

In Stock

SKU: C502CR8 Categories: Cuvettes, Products, Quartz High-Capacity Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C502CR8 is a JGS1 quartz rectangular sample cell for UV/Vis spectroscopy with a 50 mm optical path and a Two-Way Light layout. Its large square sample region allows direct filling and visual checking from above, and this covered version lets you place the sample first and then cover the cell for handling or measurement. Sold as 1 cuvette per sale.

This is a larger rectangular body rather than a narrow standard-format cuvette. Along with the 50 mm path length, the chamber size and body footprint matter when you are choosing a cell for an existing holder, compartment or bench fixture.

Path Length: 50 mm
Cell Type: Rectangular Sample Cell
Closure Type: Flat Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	50 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm

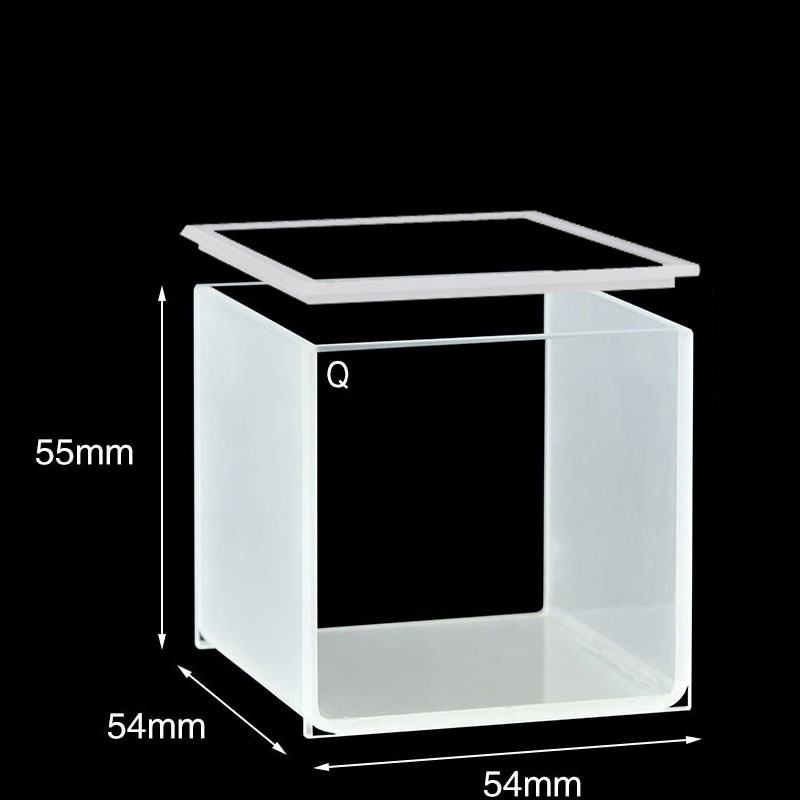

External Dimensions	54 × 54 × 55 mm
Cell Body Dimensions	54 × 54 × 55 mm
External Dimensions Scope	Body Only
Body Height	55 mm
Internal Dimensions	50 × 50 × 53 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Flat Lid
Closure Included	Yes
Wall Thickness	2 mm

Choose this option

Choose C502CR8 when your method needs a 50 mm straight-through optical path in a large rectangular quartz cell that can be filled from the top. The broad sample region is useful when you need open access for loading and inspection, while the included closure helps you cover the cell after filling.

What makes this option different

50 mm optical path for transmission measurements that use a longer path through the sample.
Two-Way Light layout with measurement through two opposite optical faces in a straight-through arrangement.
Large internal chamber measuring 50 × 50 × 53 mm for direct top access during filling and inspection.
Rectangular body size of 54 × 54 × 55 mm, which is important to check against holder space and compartment clearance.
Closure included so the filled cell can be covered after loading.
Fused integrated construction listed by the supplier as the construction style for this cell.

Using this cell

Fill the chamber from above and make sure the sample fully covers the beam area used in your setup before measurement. Because this is a large square sample region, it is practical for direct loading, visual liquid-level checking and bubble inspection before you place the cell in position.

After filling, place the closure as needed for your handling routine or measurement setup. The closure is included, but its material, sealing behavior and pressure capability are not stated here, so this version should not be treated as a pressure-rated or leak-tight assembly.

First-use check

Inspect the body, top edges and optical faces for chips, residue or transport marks.
Rinse the chamber with a cleaning liquid suitable for your method before first use.
Test fit the body in your holder and check the top clearance needed for the covered arrangement you plan to use.
Run a blank first to confirm beam placement through the intended optical faces and through the filled sample region.

Fit and optical alignment

The stated 54 × 54 × 55 mm dimensions apply to the cell body. Use them to check holder footprint, side clearance and compartment space, especially if your instrument area is designed around a narrower cell shape.

Z Height is not stated for this item. If your instrument or holder requires a specific beam-center height, confirm that separately before ordering.

Solvents and cleaning

This quartz cell is listed for UV/Vis use over 200–2500 nm. For general construction background and selection guidance, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. The chemical limits of this assembled option are not established here, so if your samples or cleaning routine involve aggressive solvents, concentrated chemicals, elevated temperature or long contact time, please check suitability before ordering.

Included with this option

Sold as 1 cell per pack. A closure is included. Other package contents are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample chamber geometry, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch with your holder details, critical dimensions, sample chemistry and target quantity. Discuss your requirements and quote part number C502CR8.
