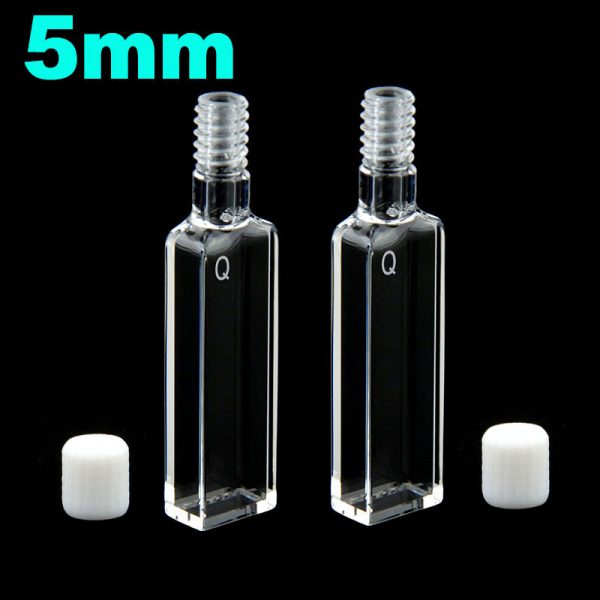

(C054TS6) Quartz Screw-Top Cuvette, 5 mm Path, 1.75 mL, Pack of 2

Weight	30 g

SKU: C054TS6

Original price was: $418.00.Current price is: $377.00.

In Stock

C054TS6 is a JGS1 quartz screw-top cuvette with a 5 mm optical path, Four-Way Light access and a flat-bottom profile. Its 1.75 mL nominal capacity suits methods that need a capped sample cell with optical access from four sides. Sold as a pack of 2 cuvettes, with caps included.

In Stock

SKU: C054TS6 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C054TS6 is a JGS1 quartz screw-top cuvette with a 5 mm optical path, Four-Way Light access and a flat-bottom profile. It suits methods that need optical access from four sides while keeping the sample in a covered cell filled from the top. The 1.75 mL nominal capacity helps you plan sample preparation, and the pack-of-two sale unit is useful when you need matching format across more than one run position.

Path Length: 5 mm
Sample Volume (Nominal): 1.75 mL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	5 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.75 mL
External Dimensions	7.5 × 12.5 × 55 mm
Cell Body Dimensions	7.5 × 12.5 × 35 mm
Body Height	35 mm
Base Dimensions	7.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C054TS6 when your method calls for a 5 mm path in a screw-top cuvette and you want optical access on more than the usual two faces. The flat-bottom version is the specified profile for this option, so it is the right choice when your holder or handling routine is set up for that body style. The capped top also gives you direct filling access without leaving the sample chamber open during measurement.

What makes this option different

5 mm optical path for methods specified at this path length.
Four-Way Light layout for optical access on four sides of the cuvette body.
Screw-top opening for top filling and covered sample handling between preparation and measurement.
Flat-bottom profile as the stated version for this SKU.
JGS1 quartz with a stated 200-2500 nm wavelength range for UV/Vis planning.
Pack of 2 cuvettes as the current MQ priced sale unit.

Using this cell

Fill the cell from the top, then screw the cap on gently before placing it in the instrument. For methods that use side optical access, keep all four optical faces clean and make sure the filled sample covers the beam path you intend to use.

The 1.75 mL value is a nominal capacity, not a minimum working volume. If your method uses partial fill, side observation or a fixed beam height, check the liquid coverage in your own setup before routine use.

First-use check

Inspect the optical faces, base area and neck for chips, dust or residue.
Rinse with a liquid suitable for your method and for the assembled cell.
Place the cell in the holder and check body seating plus cap clearance above the compartment.
Run a blank and confirm that the filled sample covers the intended beam path.

Fit and optical alignment

The optical body is 7.5 × 12.5 × 35 mm, with stated external dimensions of 7.5 × 12.5 × 55 mm. These dimensions are useful for checking body seating in the holder and clearance above the cell around the neck and cap.

Z Height is not established for this SKU. Four-Way Light means the body provides optical access on four sides, but it does not by itself establish compatibility with a particular fluorescence or multi-angle instrument.

Solvents and cleaning

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials. After rinsing, wipe the optical faces gently with non-abrasive optical tissue.

The chemical limits for this assembled screw-top cuvette are not established here for specific solvent, concentration, temperature or contact-time conditions. If your sample or cleaning routine involves aggressive chemicals or extended contact, check suitability for the full cell and closure arrangement. For general fabrication background, see MQ Cuvette Fabrication Glossary.

Included with this option

One sales pack of 2 JGS1 quartz screw-top cuvettes. Caps are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch with holder details, beam position, sample conditions and quantity target. Discuss your requirements and quote part number C054TS6.
