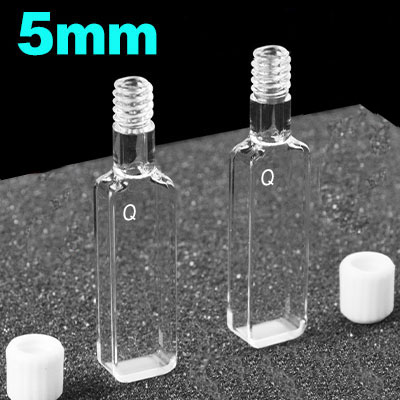

(C054TS8) Quartz Screw-Top Cuvette, 5 mm Path, Pack of 2

Weight	30 g

SKU: C054TS8

Original price was: $388.00.Current price is: $350.00.

In Stock

C054TS8 is a quartz screw-top cuvette with a 5 mm optical path and Four-Way Light layout. It is a covered cell for methods that need top filling with optical access on four sides, and this option uses the round-bottom variant of the body style. Sold as a pack of 2 cuvettes, with closures included.

In Stock

SKU: C054TS8 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C054TS8 is a quartz screw-top cuvette with a 5 mm optical path and Four-Way Light layout. It is suited to methods that need a capped sample cell with top filling and optical access on four sides of the sample region.

This option is the round-bottom variant in the same 5 mm screw-top family and is sold as a pack of 2 cuvettes with closures included. It is a useful choice when you need this specific body style rather than an open-top cell or a two-window layout.

Path Length: 5 mm
Cell Type: Screw-Top Cuvette
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Screw-Top Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	5 mm
Light Transmission Configuration	Four-Way Light
Material	Quartz
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C054TS8 when your method calls for a 5 mm screw-top cuvette and you need Four-Way Light access around the cell body. The round-bottom variant distinguishes this option within the family, while the covered top opening supports fill-cap-handle use without changing to an open chamber format.

What makes this option different

5 mm optical path for methods specified at this path length.
Four-Way Light layout for optical access on four sides of the cuvette body.
Screw-cap format for top filling and covered sample handling.
Round-bottom variant supplied as a pack of 2 cuvettes with closures included.

Using this cell

Fill the cell so the liquid covers the beam during measurement, then seat the closure gently. Keep the optical faces clean and free from bubbles, droplets and dried residue, especially if your setup uses more than one side of the cuvette body.

The screw-cap closure should not be treated as a guarantee of leak resistance or pressure handling. Confirm the sealing arrangement and operating limits for transport, inversion or closed-circuit use before operating the complete assembly under those conditions.

First-use check

Inspect the optical faces, rim and closure area for chips, dust or residue.
Rinse with a cleaning liquid suitable for your method and the complete assembled cell.
Fill with a blank solution and confirm that the beam passes through the liquid region without bubbles.
Check closure seating before running valuable or volatile samples.

Fit and optical alignment

The 5 mm path length is the key optical specification for method setup, but the beam-center height is not established for this SKU. If your holder depends on a defined bottom-to-beam position, confirm that before ordering.

This is the round-bottom variant, but the accepted data does not establish a released external dimension set or a detailed support geometry for holder fit. If compartment clearance or holder seating is critical in your instrument, please confirm those points before purchase.

Solvents and cleaning

Quartz is widely used for optical measurements, but the chemical limits for this selected assembly are not established here. If your sample or cleaning routine involves aggressive chemicals, elevated temperature or long contact time, check compatibility for the full cell and closure arrangement before use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe optical faces gently with non-abrasive optical tissue. For general fabrication background, see MQ Cuvette Fabrication Glossary.

Included with this option

Sold as a pack of 2 quartz screw-top cuvettes. Closures are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch with holder details, beam position, sample conditions and quantity target. Discuss your requirements and quote part number C054TS8.
